Loading Port:China Main Port
Payment Terms:TT OR LC
Min Order Qty:-
Supply Capability:-
Type:Packaging Line
Condition:New
Application:Food, Beverage, Chemical, Machinery & Hardware
Packaging Type:Cans
Packaging Material:Metal
Automatic Grade:Automatic
Driven Type:Electric
Voltage:380v
Power:5.75KW
Place of Origin:Zhejiang, China (Mainland)
Certification:CE
After-sales Service Provided:Engineers available to service machinery overseas

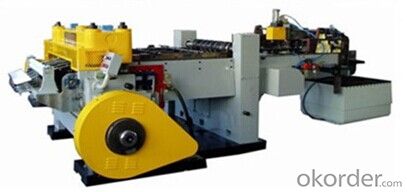

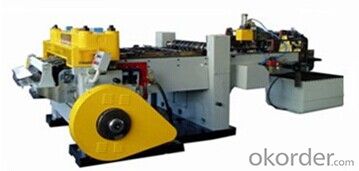

Automatic Tinplate Sheet Scroll Shearing Machine Cutting Machine Main TechnicalParameters
1.Fully automatic system
2.Double knife scrolled strip
3.Equipped with protection units
4.PLC controller
| Name | Automatic Scroll Shearing Machine |
| Model | GT1B9 |
| Usage | It's used for scrolled strip shearing for round can bottom |
| Max sheet size | 1170*1170mm |
| Min shheet size | 750*508mm |
| Max cutting thickness | 0.4mm |
| Max feeding stroke | 350mm |
| Max double mold cutting width | 260mm |
| Cutter reciprocate times | 50-100(small cover)/10-30(big cover) |
| Power | 5.75kw |
| Dimension | 4520*2505*1615mm |
| Weight | 8000Kg |
