Loading Port:Tianjin
Payment Terms:TT OR LC
Min Order Qty:5 unit
Supply Capability:50 unit/month
Automatic Oil Filling Production Line for Packaging
1. Product Description:
This production line is suitable for the filling of 10-150ml liquid. It consists of bottle supplying machine, linear filling and capping machine and vertical labeling machine.
This line can completely finish the work of automatically bottles managing/supplying filling, capping , rotary ( rolling ) cover,labeling and other processes.
Mainly used for the filling linkage production of various liquid materials in pharmaceutical, food, chemical industry.The production line is fully compliant with the GMP requirements.
2. Product Features:
A. Linear filling and capping is easy to operate, precise filling, and u can select different production rate. B. Vertical labeling machine adopts PLC and stepper motor control with the features of labeling precision, high efficiency. C. This line is provided with stepless frequency speed adjustment, production speed is controllable. D. All the electrical appliances are well-known brand in domestic and overseas.
3.Product Parameters:
Applicable specifications | 10-150ml |
Filling head | 4 heads (low speed), 8 heads (high speed) |
Production capacity | 4 heads: 30-50 bottle /min, 8 heads: 70-85 bottles / min |
Filling accuracy | ±1% |
Capping rate | ≥99% |
Power supply | 220V / 50Hz |
Power | 2.5kW |
Total dimension | 6000 * 1000 * 1700MM |
4. FAQ:
Q1: What is your delivery time?
A: Generally, the delivery time is 45-60 days after receive the deposit, big production line may take more time.
Q2: What is the payment term?
A: We accept both T/T and L/C. Most customers pay by T/T.
Q3: What kind of after-sevices do you provide?
A: If it is not big problem, we can solve it by emails, phone etc. If it can’t work, our engineers can go to overseas to install and adjust the machine and solve the problems.

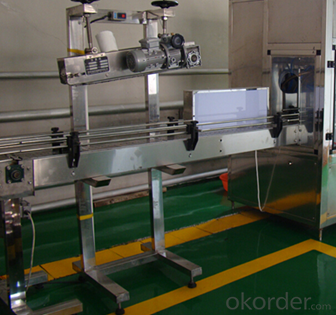

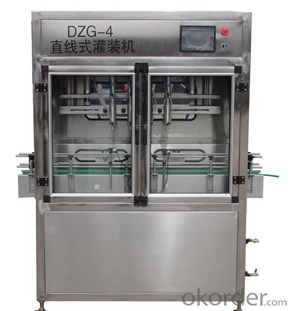

5. Product Pictures:
