1. Product Description:
Automatic Volumetric inline Filling & Capping machine is new generation utility product, developed from most advanced technology to suit to market demand. The machine adopt SS316L volumetric injection pump, auto cap orienting and capping together. Economic utility, low plant cover, the machine is widely applied to liquid packing in the market of pharmaceutical, pesticide, chemical, foodstuff, cosmetic etc, meet to the requirement of customers.
2. Product Features:
Adopt volumetric injection pump to fill high precision, also fill various viscosity liquid. Easy knock-down pump structure, convenient to clean and sterilize. No bottle, no fill, auto count the quantity.’Filling quantity of all pumps is adjusted in a lump,
minim adjustable for each pump. Easy and quick operate.
3. Product Parameters:
ITEM | YG8/2 | YG4/1 |
Filling nozzles | 8 | 4 |
Capping heads | 2 | 1 |
Filling range | 20-1000ml | |
Ideal filling range | 20-100ml 50-250ml 100-500ml 200-1000ml | |
Optional cap type | the ftproof cap, screw thread cap, ROPP cap | |
Filling speed | 3600-5000bph | 2400-3000bph |
Filling precision | ≤±1% | |
Yield of capping | ≥99% | |
Power supply | 220V 50/60Hz | |
Power consumption | ≤2.2kw | ≤1.2kw |
Air pressure range | 0.4-0.6MPa | |
N. W. | 1000kg | 800kg |
Overall dimension（mm） | 2200*1200*1600 | 2000*1200*1600 |
4. FAQ:
Q1. Does your machine fit for different volumes?
A: Yes, one machine can fill different volumes, such as 100-500ml, 100-1000ml, 1-5L etc, which is based on your product information.
Q2. Can your machine reach different production?
A: Yeah, we can make machines with different of filling nozzles, and the nozzle numbers based on your production. You can
adjust different filling speed within the range.

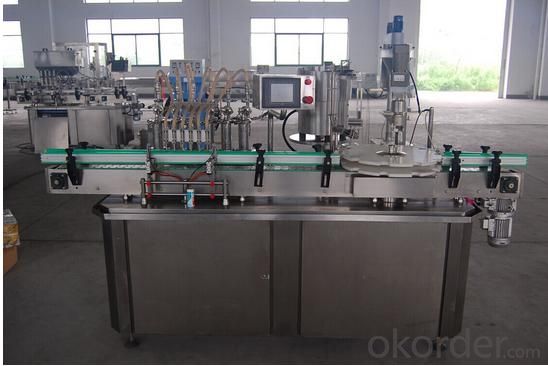

5. Product Pictures:
