Automatic Depalletizer Machine for Packaging Industry
1. Product Description:
The depalletizer is new style one which is researched and developed by absorbing advanced technology aboard. It is suitable for different medium and large beer filling production line, some functions will be changed or added according to the customer's actual requirement. The machine features as easy operation, smooth running, large output and easy maintenance.
2. Product Features:
1) This machine is composed of lift, transfer table, can pushing part, roller 1, roller 2 and operation platform.
2) Elevating part
3) Lift is used for lifting pallets to the height of transfer table and pushing cans to the transfer table by can push parts.
4) Transfer table
5) This part is used for can storage and transport.
6) Can pushing parts
7) It is used for pushing cans to transfer table from pallet.
3. Product Parameters:
Capacity | 800cans/min |
Applicable products | CAN,PE,PP,GLASS BOTTLES |
Totaln Power | 7KW |
Total Weight | 5000kg |
Motor Power | 3x380x3PH |
Copressed air supply | 0.8Mpa |
Applicable stac size(standard) | 1400x1100x2300mm(LXWXH) |
Air Supply Consumption | 0.2m3/min |
Can Conveying Mesh Chain | 4000mm |
Out Dimensions(Standard) | 12700x3500x4300(LXWXH) |
Equipment Capabilities: |
CNC Lathes/Lathes/Automatic Lathes/CNC Shearing Machines/CNC Bending Machines/Machining Center/Grinding Machines/Milling Machines/Turning Machines/ Welding Machines/Cutting machines/ Wire-Cuts/ Laser Cuts/Punching Machines/Ditching machines/Polishing machines/Combined Processing Machines and other specialized processing equipments etc. |
Materials Capabilities: | Aluminum Alloy:5052 /6061/ 6063 / 2017 / 7075 / etc. |
Brass: H59/3602/2604/H62/ etc. | |
Copper/Bronze | |
Stainless Steel:201/202/303/304/316/412/ etc. | |
Steel Alloy: Carbon Steel/Die Steel/etc. | |
Other Special Materials: Lucite / Nylon / Bakelite / Plastic/etc. | |
Various kinds of materials can be chosen, we can produce cnc machined aluminum parts according to your requirement. | |
Surface Treatment: |
Anodizing/ Black Oxide/Electroplating/Heat Treating/Brushing/ Grinding/Polishing/painting /Powder Coating/Nickel plating. |
Inspection tooling: |
Outer micrometer, inside micrometer(machine),digimatic micrometer, internal micrometer, mechanical caliper , vernier caliper ,caliper(digital), caliper(machine),caliper(dial),diameter scale, depth micrometer, digital caliper, altitude gauge, electric balance),2D measurement inspection instruments etc |
4. FAQ:
Q1: What is your delivery time?
A: Generally, the delivery time is 45-60 days after receive the deposit, big production line may take more time.

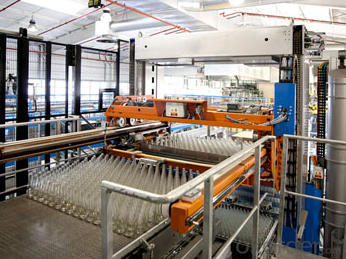

5. Product Pictures:
