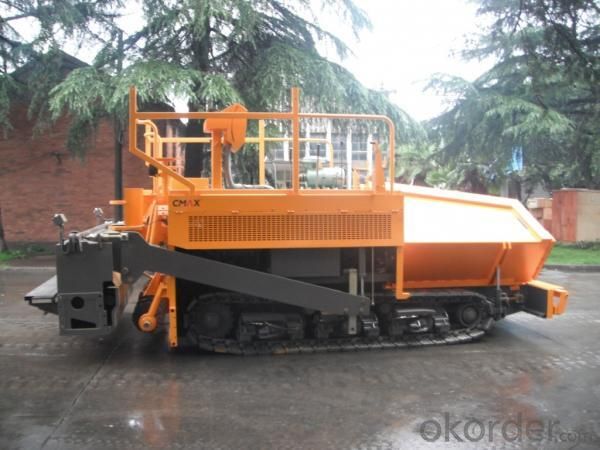

Product Name: Asphalt Paver WTD7501
1. Product Feature of Asphalt Paver WTD7501
The leveling system is characterized by fast response speed and high leveling precision
Left and right crawler belts are independently hydraulic driven to help maintain a constant paving speed and ensure good straight-ahead travel function of our road paver. Non-slip steering and spot turning can also be achieved
2. Specification of Asphalt Paver WTD7501
Item | WTD7501 | |
Main Parameter | Travel model | Crawler-type |
Basic Paving Width | 2.5 | |
Maximum Paving Width | 7.5 | |
Maximum Paving Thickness | 350 | |
Working Speed | 0-19 | |
Running Speed | 0-2.9 | |
Theoretical Productivity | 600 | |
Hopper Capacity | 14 | |
Gradeability | ≥20 | |
Leveling Tolerance (Wave) | 2 | |
Transverse Wave Error | ±0.02 | |
Arch degree Adjusting Range | -1～+3 | |
Engine | Manufacturer | Cummins |
Modell | 6BTAA5.9 | |
Fuel Tank Capacity | 263 | |
Rated Power | 133 | |
Rated Speed | 2200 | |
Electric System | 24 | |
Emission Standard | Tier1/Tier2 | |
Mangle System | Screed Model | Mechanical Lengthening |
Hydraulic Telescopic Range | / | |
Compaction Type | Single Vibration and Double Tamping | |
Tamping Frequency | 20 | |
Vibrating Frequency | 40 | |
Heating Type | Propane Gas Heating | |
Dimension and Weight | Overall Length | 6470 |
Overall Width (Basic Segment) | 2615 | |
Height (With the Cab) | 3570 | |
Transportation Height | 3000 | |
Total Mass | 22 | |

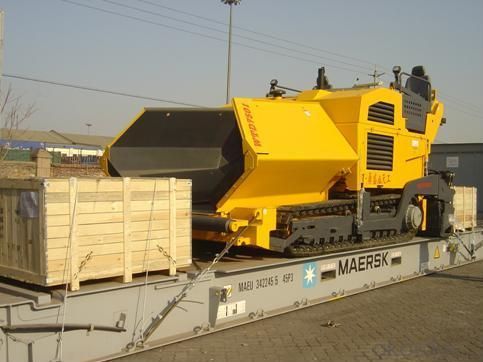

3. Delivery of Asphalt Paver WTD7501
This model could be shipped by Bulk Vessel or Roll-on roll-off vessel.
