Loading Port:Qingdao
Payment Terms:TT OR LC
Min Order Qty:1 m.t.
Supply Capability:1 m.t./month

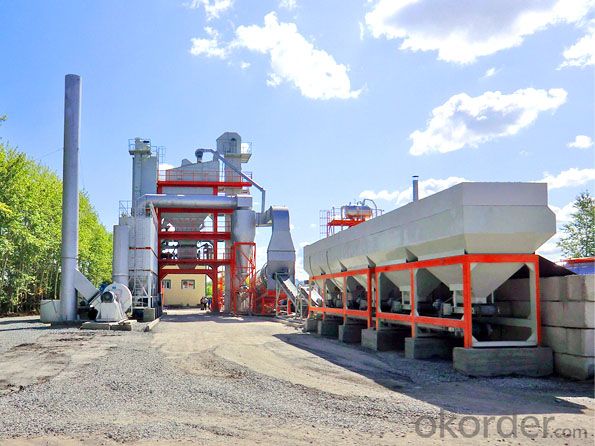

Specification of asphalt&bitumen mixing plant LB2000
| Item | Technical data | ||
| Aggregate supply system (primary batching device ) | Hopper wall vibrator (2 units) | Motor power | 0.25KW |
| Collecting Conveyor belt | Belt width | 650MM | |
| Productivity | 200T/H | ||
| Motor power | 4 KW | ||
| Drying drum | Dimension | 2.3 X 8.2M | |
| Materials | Steel plate 16/20g | ||
| Installation angle | 5o | ||
| Drying drum drive motor | 4 X 15 KW | ||
| Drying drum rotational speed | 7.7RPM | ||
| Burning system | Imported oil burner (Optional) | Atomizing medium (optional) | |
| Model | ZZR2000 (Canada Digi Burner) | ||
| Power of blower | 15KW | ||
| Power of oil pump | 2.2KW | ||
| Screw air compressor | 22KW X 1 | ||
| Gas consumption | 3M3/MIN | ||
| Air pressure | 0.6MPa | ||
| Heavy oil tank | 10T(with oil duct) | ||
| Diesel tank | 10T(with oil duct) | ||
| Fuel Type | diesel oil, heavy oil and residual oil | ||
| Atomizing machinery (optional) | |||
| Model | EB8N (Italy Burner) | ||
| Composition | Blower oil,pump,console etc. | ||
| Heavy oil tank | 10T(with oil supplying pipeline) | ||
| Diesel tank | 10T(with oil supplying pipeline) | ||
| Bag dust collector (Optional) | Bag material | NOMEX weight 500g/m2,removing dust easily | |
| Dust collecting area | 670M3 | ||
| Air volume | 55000M3/H | ||
| Compressed air consumption | 2.6M3/MIN | ||
| Compressed air pressur | 0.4~0.7Mpa | ||
| Normal working temperature | 100175 | ||
| Instantaneous max heatresisting | 230 | ||
| Air compressors | Type | LB150320 | |
| Motor power | 11KW X 2 | ||
| Air consumption | 1.67M3/MIN | ||
| Gas storage tank | 0.6M3 | ||
| Dust recycling system | Hanging style rotation loader power | 0.75KW | |
| screw conveyer powert | 4KW | ||
| Inside spin power | 4KW | ||
| Recycle powder hoist | 4KW | ||
| draught fan | Fan motor power | 110KW | |
| fan wind air volume | 36762~69347M3/H | ||
| fan wind pressure | 28243874Pa | ||
| Auxiliary draught fan | Fan motor power | 3kw | |
| fan wind air volume | 3456~69347M3/H | ||
| fan wind pressure | 9171210Pa | ||
| The chimney | Height | 15M | |
| Exit dust exhaust concentration | <100mg/Nm3 | ||
| Vibrating screen | Vibration frequency | 19Hz | |
| Amplitude | 6~8MM | ||
| Screen areas | 18.6 M2 | ||
| Production capacity | ≥200T/H | ||
| Drive motor power | 11KW | ||
| Screen mesh specification | 35X35,22X22,11X11,6X6MM | ||
| Hot aggregate elevator | Type | duplex chain hopper | |
| Chain form | double chain ,automatic tensioner | ||
| Electromagnetic brake motor reducer | Power | 18.5KW | |
| Chain speed | 1.2M/S | ||
| Speed reducer power | 15KW | ||
| Height | 14.8M | ||
| Hoisting capacity | 200T/H | ||
| Hot aggregate bin | Type | 4 compartment hoppers | |
| Hopper volume | 36.7M3 | ||
| Weighing system | Hot aggregate scale hopper | volume | 2.1 M3 |
| Static measuring precision | ±0.5% | ||
| Weighting modularity sensor | HM-E-A-2 (Meidiya) | ||
| Powder weighing hopper | volume | 0.41M3 | |
| Static measuring precision | ±0.25% | ||
| Weighting modularity sensor | HM-E-A-0.3 (Meidiya) | ||
| Powder screw conveyer | LSL273×3020×4 | ||
| Screw conveyer power | 4KW | ||
| Asphalt weighing hopper | volume | 0.3M3 | |
| Static measuring precision | ±0.25% | ||
| modularity sensor | HM-E-A-0.2 (Meidiya) | ||
| The asphalt measuring pump | 7.5kw | ||
| The asphalt spraying pump | 11kW | ||
| Tower frame | Dimension | 8800*2250*2500 | |
| The mixer | Type | Two horizontal forced paddle type mixer | |
| Volume | 2000kg /batch | ||
| Cycle time | 45s | ||
| Drive motor power | 37KW×2 | ||
| Monitor room | Overall dimension | 5M X 2 M X 2.5 M | |
