Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:1000 pc
Supply Capability:1000000 pc/month

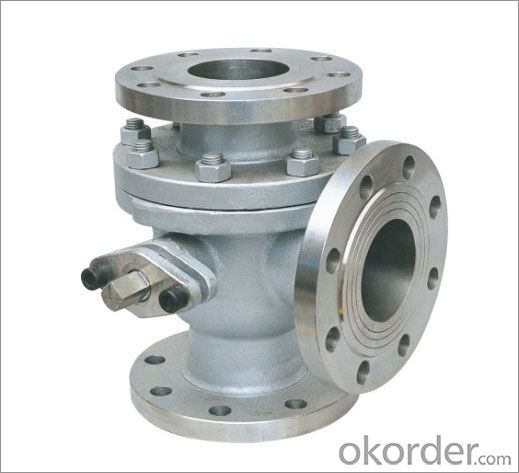

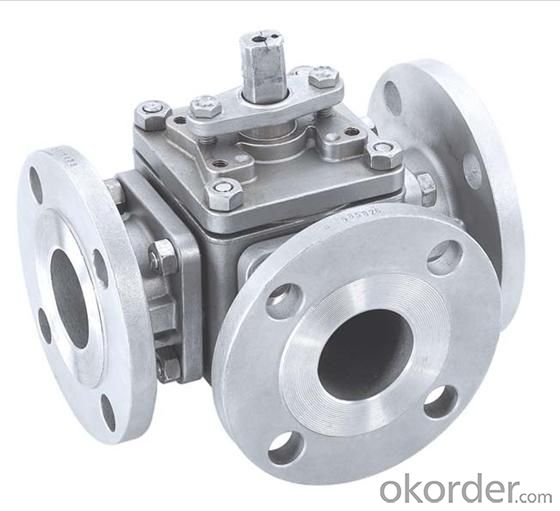

three way trunnion ball valve Specifications
The ball valve are designed in accordance with ISO14313,API 6D,BS 5351,GB/T 19672;
Simple structure with good sealing performance and small torque;
Full bore and reduced bore design with the minimum flow resistance (zero actually);
Emergency sealant injection;
Cavity pressure self relief;
Independent ball and stem;
Low emission packing;
Fire safe, anti-static and anti-blowout stem design;
Valve seat function DBB, DIB-1, DIB-2;
Optional extended bonnet.
three way trunnion ball valve Advantage
The side entry trunnion mounted ball valve has been designed two piece body type or three piece body type and with two floating seats, which are movable under the pressure of medium. Under the bottom of seats, seat pre-loading springs are positioned to ensure two floating seats can attach the ball’s surface tightly, other more, pressure of medium also can push seats to attach ball tightly to ensure sealing more reliable.
The trunnion ball valve is equipped with a movable seat seal ring which can generate displacement under the pressure of medium. In case that any medium pressure exists, the pressure will press the valve seat seal ring onto the ball tightly, guaranteeing the sealing performance of the ball valve.
three way trunnion ball valve Application
Petroleum, chemical engineering, metallurgy, light industry, power station, city building, water supply system, oil transportation, gas feeding, natural gas and long distance transportation pipes projects.
Applicable Standards:
Design & Manufacture according to : API 6D;
Face to Face according to : ASME B16.10;
Flange Dimensions according to : ASME B16.5;
Pressure & Temperature according to : ASME B16.34;
Test & Inspection according to : API 6D / API 598;
Visual Inspection according to : MSS SP-55;
Marking according to : MSS SP-25.
Material For Choice:
Carbon steel | ASTM A105 , etc |
Low temperature steel | A350 Gr. LF2 , etc |
Cr-Mo steel | A182 Gr. F11 , F22 , etc |
Stainless Steel | A182 Gr. F304 , F304L , F316 , F316L , F321 , F347 , etc |
Alloy steel | Alloy 20 , etc |
Super duplex | A182 Gr. F51 , F53 , F55 , etc |
Aluminum bronze | B148 C95500 , C95600 , C95800 , etc |
Monel | Monel K400, K500 |
Inconel | inconel 600 , etc |
Hastelloy | Hastelloy B , Hastelloy C276 , etc |
Incoloy | Incoloy 825 , Incoloy 625 , etc |
Our Services
We guarantee:
1. Competitive price;
2. High quality and best service;
3. Fast and Safe shipping;
4. Popular OEM design.
Warranty:
18 months since the valves arrive at the destination port.
Trade Terms:
1. Payment: L/C, T/T, Western Union, MoneyGram, PayPal;
Generally30% deposits; 70% balance before deliverying;
2. Delivery Time: 10-60 days;
3. MOQ: 1 Set.
Packaging & Shipping:
Package Informations: Export dedicated plywood cases;
Shipping: Ex-work, FOB, C&F,CIF, etc.
