Loading Port:Tianjin
Payment Terms:TT OR LC
Min Order Qty:100 m.t.
Supply Capability:10000 m.t./month
Product Description:
Casing is a wide range pipe that serves as the structural retainer for the walls of oil and gas wells, or well bore
It is inserted into a well bore and cemented in place to protect both subsurface formations and the wellbore from collapsing, to allow drilling fluid to circulate, and extraction to take place
Scope of Application of the Goods
Tubing: tubing is pipe used for the transportation of crude oil and natural gas from an oil or gas layer to the surface after drilling is complete
It is made to withstand the pressure generated from the extraction process
Tubing is manufactured in the same way as casing, except that an additional process known as "upsetting" is applied to thicken the pipes
Main Product Features:
Reliable performance
Easy to weld
High safety.
· Professional Service
· Competitive pricing
Measuring of wall thickness from the outside
Low purchase cost
Specifications:
Certificate: casing: LTC, STC, BTC, VAM
Tubing: NUE, EUE
Out diameter:
Casing: OD 4 1/2"- 20" (114.3mm-508mm)
Tubing: OD 2 3/8" - 4 1/2" (60.3mm-114.30mm)
Wall thickness: 0. 205"- 0.635"
Length: R1 (4.88mtr-7.62mtr), R2 (7.62mtr-10.36mtr), R3 (10.36mtr or longer)
Steel grade: H-40, J55, K-55, N-80, C-75, L-80, C-90, T-95, Q-125
Surface: corrosion proofing water based paint

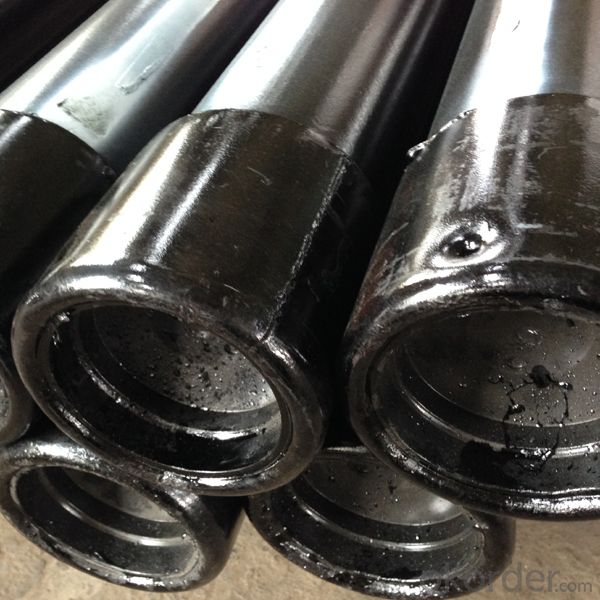

CasingSeamless 4-1/2” 11.6lbs / Ft K55
ButtressRange 3
Od:114.3mm
Thickness:5mm
Length:R3(＞10.36m)
SteelGrade: K55
Connect: Bc
