Annual Promotion! Super Bright 0.5W White 5630 SMD LED, China Factory 3 Years Warranty

Loading Port:Shanghai

Payment Terms:L/C,T/T

Min Order Qty:3000 Pcs pc

Supply Capability:100000 Pcs Per Month pc/month

Product Description:

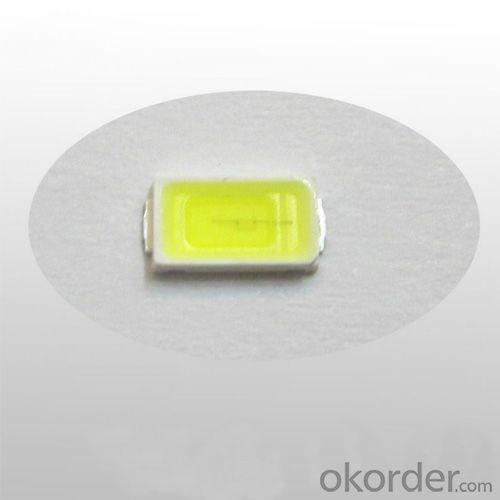

ATI 0.5W White 5630 SMD LED





Features

1.Over 12 years LED-producing experience as the vendor of Samsung,Haier,LG etc.

2.Big scale of producing makes sure that your purchase cost is lower but with higher quality.

3.Advanced production line guarantees stable quality and longer life span.

4.Use the most mature international well-known LED chip from Epistar as the light source, which can ensure the SMD LED brightness and long lifetime, also can reduce the light decay.

5. Electrodes are made of copper with silver plating which leads to best quality and longer life span.





Application

1. Optical indicators

2. Indoor displays

3. Interior automotive lighting

4. Backlight for LCDs, switch and symbols and displays

5. Light pipe applications

6. Used for LED Strips, LED Modules, LED Tubes and LED Spot lights.




Our Service:
1. High quality of Components
2. Competitive prices with convenient payment terms
3. Fast delivery times Long time warranty





Office Time:
1.8:30 a.M to 6:00 p.M (GMT+8) of Monday to Friday
2.Our office is closed on Chinese Public holidays





5730/5630 SMD LED ELECTRICAL/OPTICAL CHARACTERISTICS AT Ta=25°C:

Part No

Emitting Color

Color Temp(K)

Luminous Flux(Lm)

VF(V)

IF(MA)

CRI(Min)

ATI-5630 SMD LED WW05-M

Warm White

2800-3300 K

50-55 Lm

3.0-3.8V

150 mA

80

ATI-5630  SMD LED NW05-C

White

4500-5900 K

50-55 Lm

3.0-3.8V

150 mA

80

ATI-5630  SMD LED CW05-M

Cool White

5800-8600 K

50-55 Lm

3.0-3.8V

150 mA

80

ATI-5730  SMD LED WW05-C

Warm White

2800-3300 K

50-55 Lm

3.0-3.8V

150 mA

80

ATI-5730  SMD LED NW05-C

White

4500-5900 K

50-55 Lm

3.0-3.8V

150 mA

80

ATI-5730  SMD LED CW05-C

Cool White

5800-8600 K

50-55 Lm

3.0-3.8V

150 mA

80
