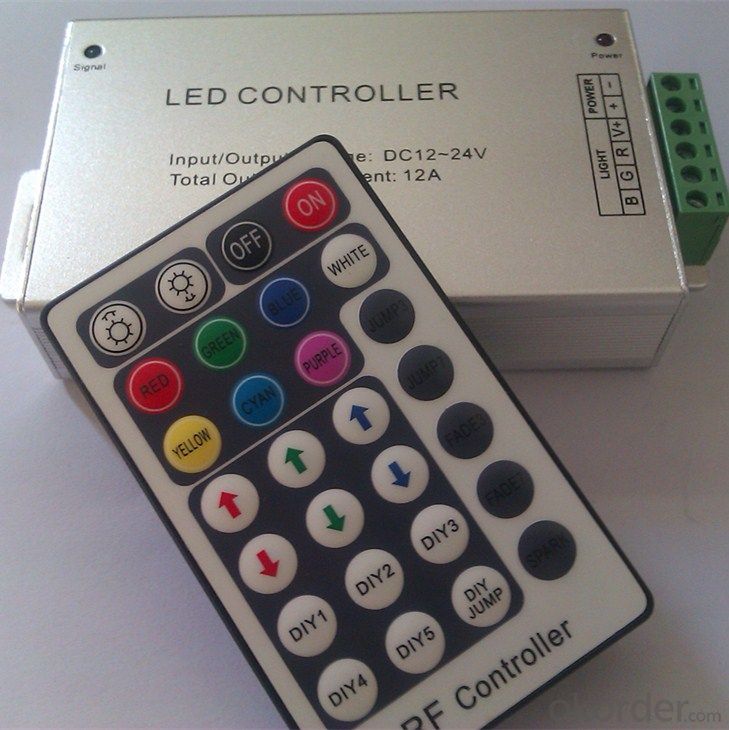

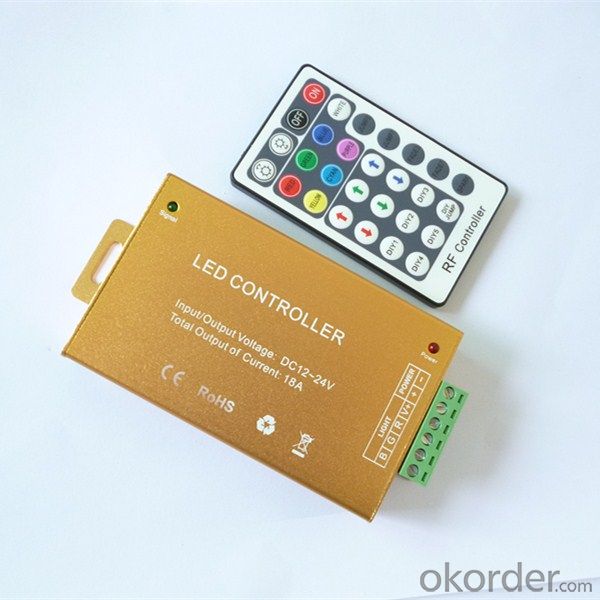

Aluminum RF 28 Keys RGB controller

Product Description:

Product Description:

Aluminum RF 28 Keys RGB controller adopted the advanced computer control chip. Its mainly used to controlled all kindsof constant voltage led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.It integrated with easy connection,simple manipulation and power off memory function.User can choose the 7 color jump,fade,fash mode ,and the lights brightness are adjustable according to the useractual requirement.

Technical Parameters:

● Working temperature：-20-60℃

● Input voltage：DC12~24V

● Output：3 circuit

● Connection mode：Common anode

● Controller size：L130×W65×H25mm

● package size：L135×W80×H55mm

● Net weight：190g

● Static power consumption：<1W

● Output current：<4A/ch  or <8A/ch (optional)

● Output power： 12V/4A < 144W；12V/8A< 288W；24V/4A<288W；24V/8A< 576W

Remotecontrol function:

Direction for use:

● Connectthe load wire at first, following by the power wire; Pleaseensure short circuit can not occur between connecting wire before you turn onthe power；

2、Adopt wireless control method, 28 keys in total, function of each buttonas below:

●ThisRF28keys controller have match code version and not match code version foroptional.For the match code version, if you want to match code again, justsimply need to press “ RED” color within 6seconds when power the controller.(remarks:this function just for the matchcode version only)

Typical Applications:

Cautions:

1、Thisproducts Input voltage is DC12-24V,other input voltage are not allowed.

2、Leadwire should be connected correctly,according to the wire color and theconnecting diagram offers.

3、Overloadare prohibited.
