Loading Port:Guangzhou
Payment Terms:TT OR LC
Min Order Qty:1000 m²
Supply Capability:1000 m²/month

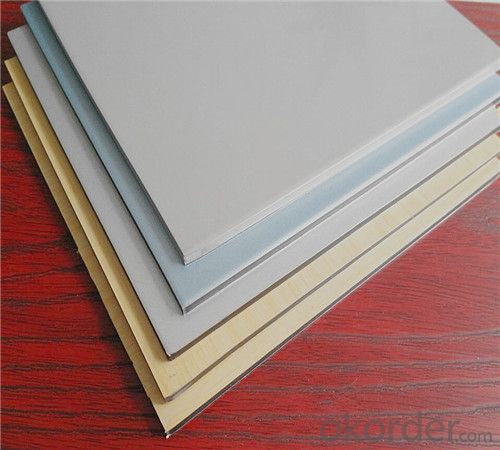

GLOBOND Plus PVDF ACP is exclusively made for exterior wall cladding, its excellent property comes from the front coating & its outstanding durability, PVDF (Polyvinylidene Flouride Carbon) Kynar 500 coating is achieved through the continuing roller coating system which is based on the most prestigious Durannar technology & the multiple layers are individually stoved at 220~260℃, the two cover sheets sandwich the same mineral core of polyethylene hardly inflammable.
Specification:
PRODUCT ITEM | TOTAL THICKNESS | ALU.THICKNESS | WIDTH | LENGTH | COLORS |
Standard | 4mm | 0.5mm | 1220,1250mm | 2440/3200mm | 10 kinds |
Option | 3,5,6mm | 0.3/0.4mm | 900,1270,1500mm | ≤4500mm | Custom colors |
Notes: Option items & custom colors are available subject to the respective minimum quantity.
size:2440*1220*4(mm)
GLOBOND Plus PVDF ACP’s Characteristics & Advantage
*Easy Processing & Installation
GLOBOND Plus PVDF ACP is easy to cut, punch, router, groove & fabricate into different shapes simply with tools & machinery for timbers & metal sheets; depending on different required systems, its installation could be effected in short time.
Quality Standard
The thickness of Aluminium Film is 0.5mm. The ACP with the total thickness of 4mm is fully satisfied to the GB/T 17748-2008 National quality system, and the others specification is fully satisfy to Globond's quality control system.
GLOBOND plus PVDF Application Scope
*Exteror reformation for old building, subway interior, airport terminals
*Advertisement boards, signboards, display platforms
