Product Description:

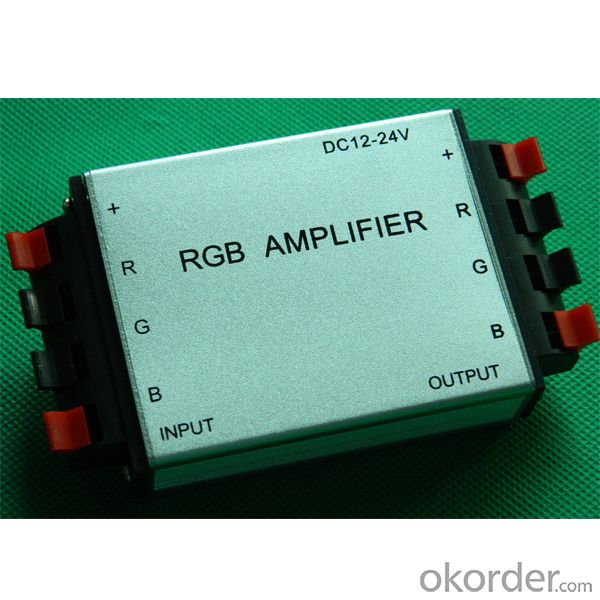

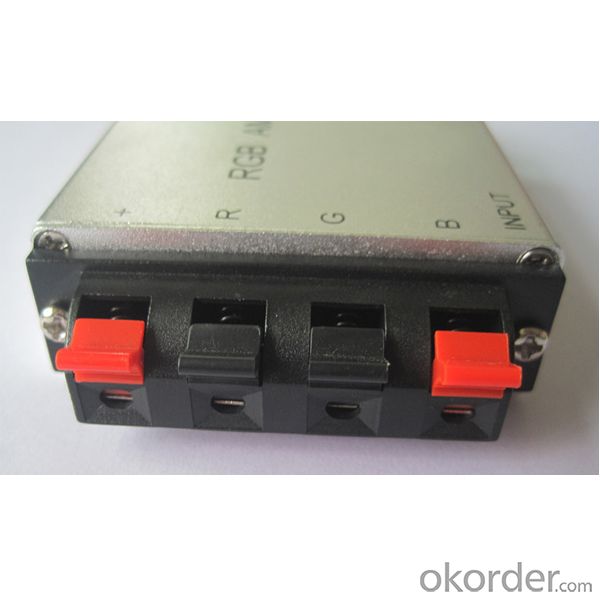

This RGB amplifier issuitable for all kinds of constant voltage led RGB controller. itcan enlarge the led controller signal through the RGB to receive the PWM(pulse widthmodulation),and output the signal to the load ,then it can make the same effect with the controller.when add eachadditional amplifier, can connect and controlled twice more LED lights.theoretically, one controller can connector with thousands of this RGB amplifier,and can make the same effect.
Technical Parameters:
● Working temperature：-20-60℃
● Input voltage：DC12~24V
● Output：3 circuit
● Connection mode：Common anode
● product’s size：L113×W65×H24mm
● package size：L117×W72×H64mm
● Net weight：98g
● Gross weight：120g
● Static power consumption：<1W
● Output current：<4A/ch
● Output power：12V: <144W；24V: <288W；
Direction for use:
Connect the inputand output wire in sequence according to the specification one the label of theamplifier, make sure that no short circuit phenomenon,then connect theamplifier to the DC12V/24V power supply , and used with the led light ,the wiring diagram are as follows:
Typical Applications:
application circuit 1:
application circuit 2:
Cautions:
1、Thisproducts Input voltage is DC12-24V,other input voltage are not allowed.
2、Leadwire should be connected correctly,according to the wire color and the connectingdiagram offers.
3、Overloadare prohibited.
