Ceramic Filter Plate Alumina Grinding Ball with Higher Hardness and Density

Product Description:

APPLICATION

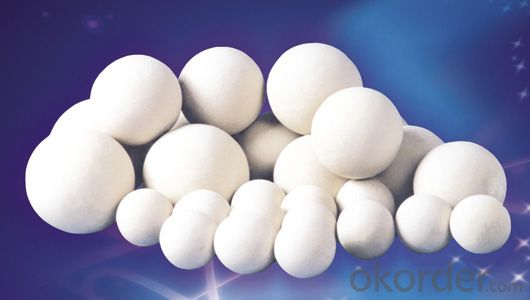

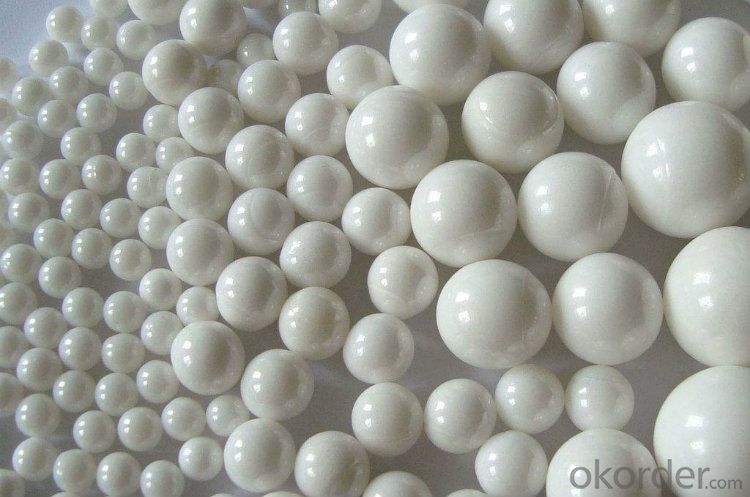

Being the high quality grinding media, Alumina Grinding Ball is superior in higher hardness and density, better toughness and erosion resistance, as well as regular shape. It is widely applied in ceramic, cement, paint, pigment, chemical, pharmacy, coating and mining industries.

Typical Characteristics JIN GANG Alumina Grinding Ball

Item JG92-1 JG92-2 JG75 JG68

Al2O3+ZrO2(%) 92 92 73～78 68

 Bulk Density(g/cm3) 3.65 3.6 3.25 2.9

Water Absorption(%) ＜0.1 ＜0.1 ＜0.1 ＜0.1

Wear Loss(‰) ≤0.1 ≤0.15 ≤0.2 ≤0.4

 Hardness(Mohs) 9 9 8 7～8

Color White White White Yellow White

Application Glaze Milling,Tile body Milling Glaze Milling,Tile body Milling Glaze Milling,Tile body Milling Glaze or Tile body Milling

Raw Materials Calcined Alumina Calcined Alumina Zirconia,Calcined Alumina Refined Bauxite Powder

Forming Method CIP CIP CIP CIP

Diameter(mm) 0.2~70；Can be customized accordingly.

Note:

(1)Wear loss is tested according to the Chinese National Standard JC/T848.1-2000.

(2)Above technical data is typical test result,the real value may change within acceptable tolerance.
