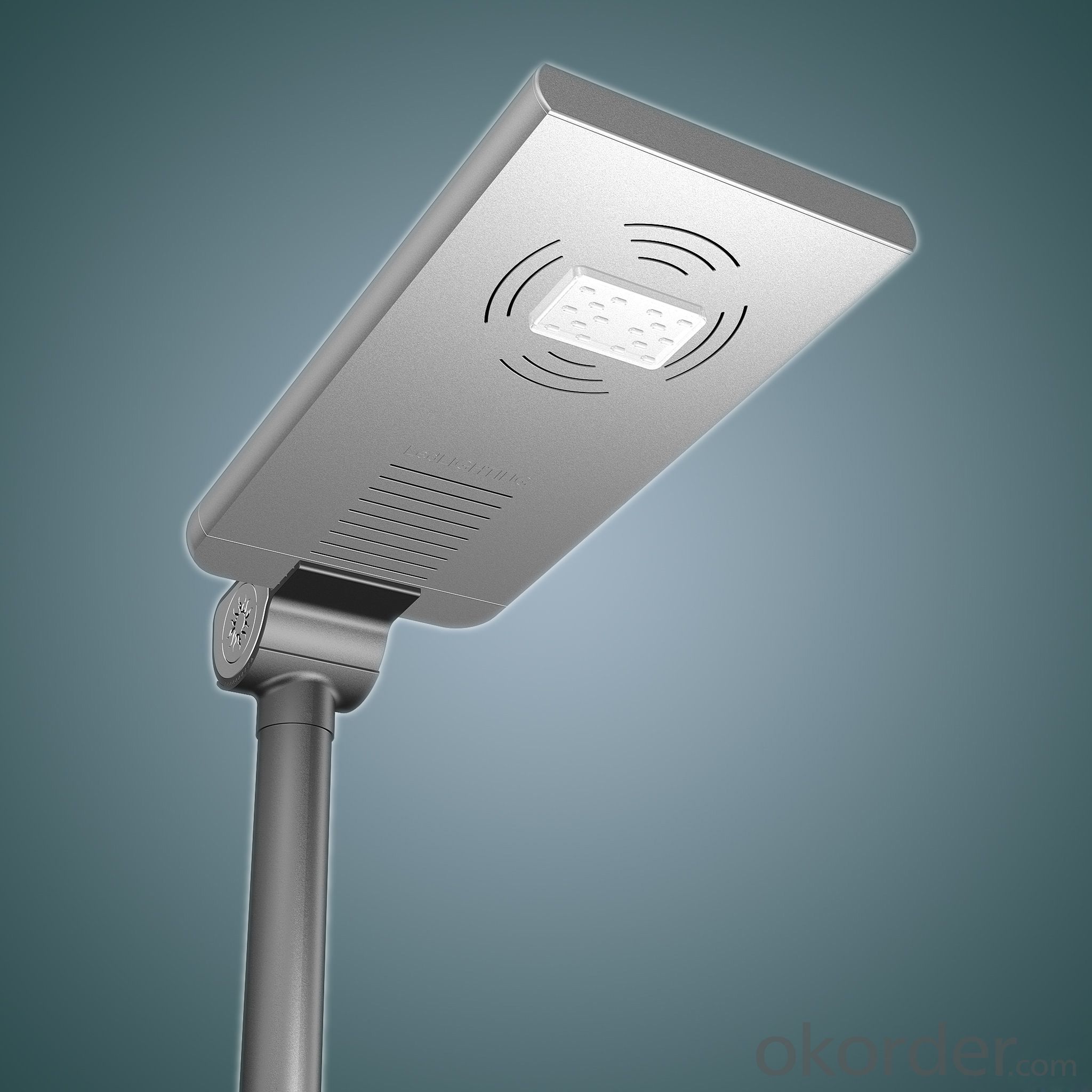

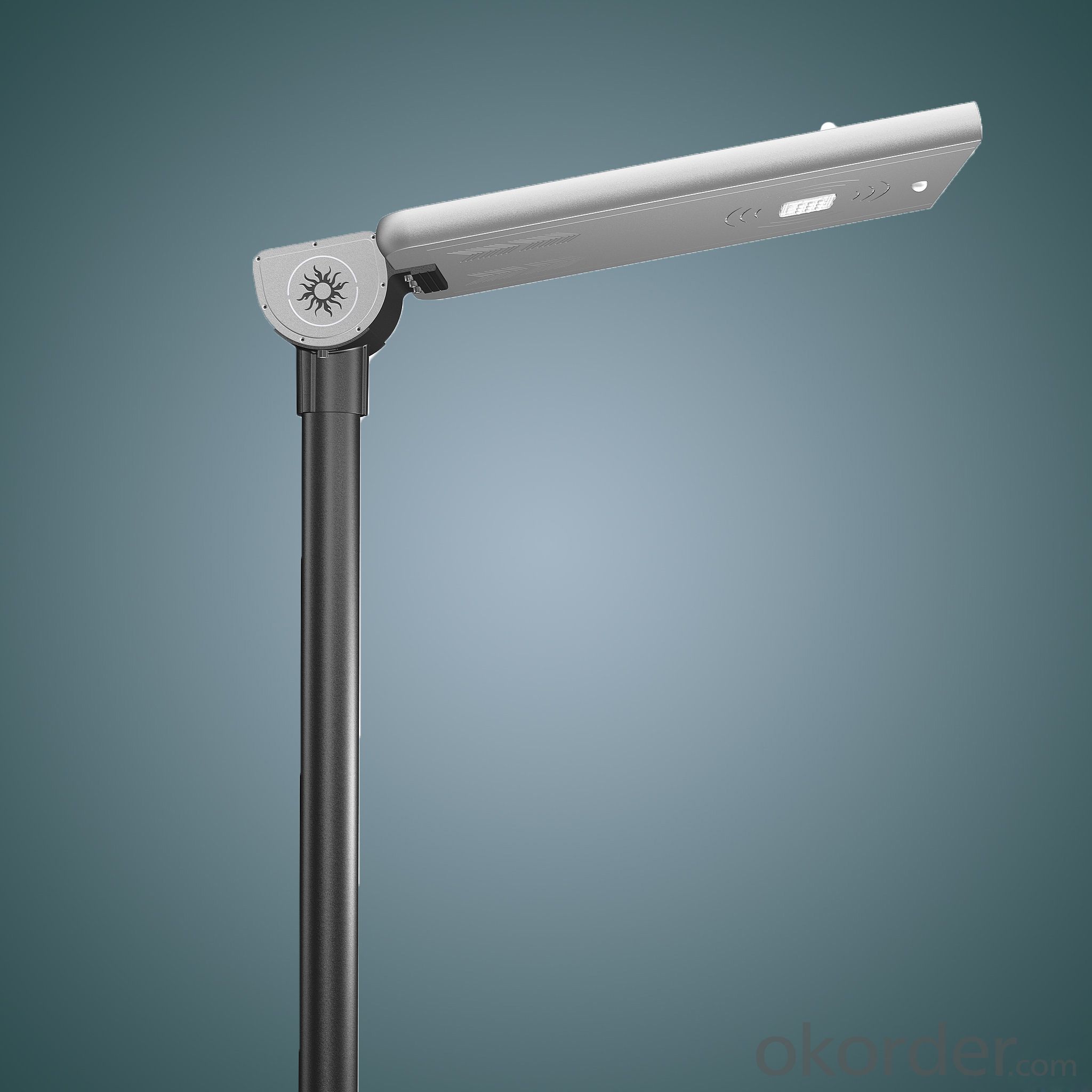

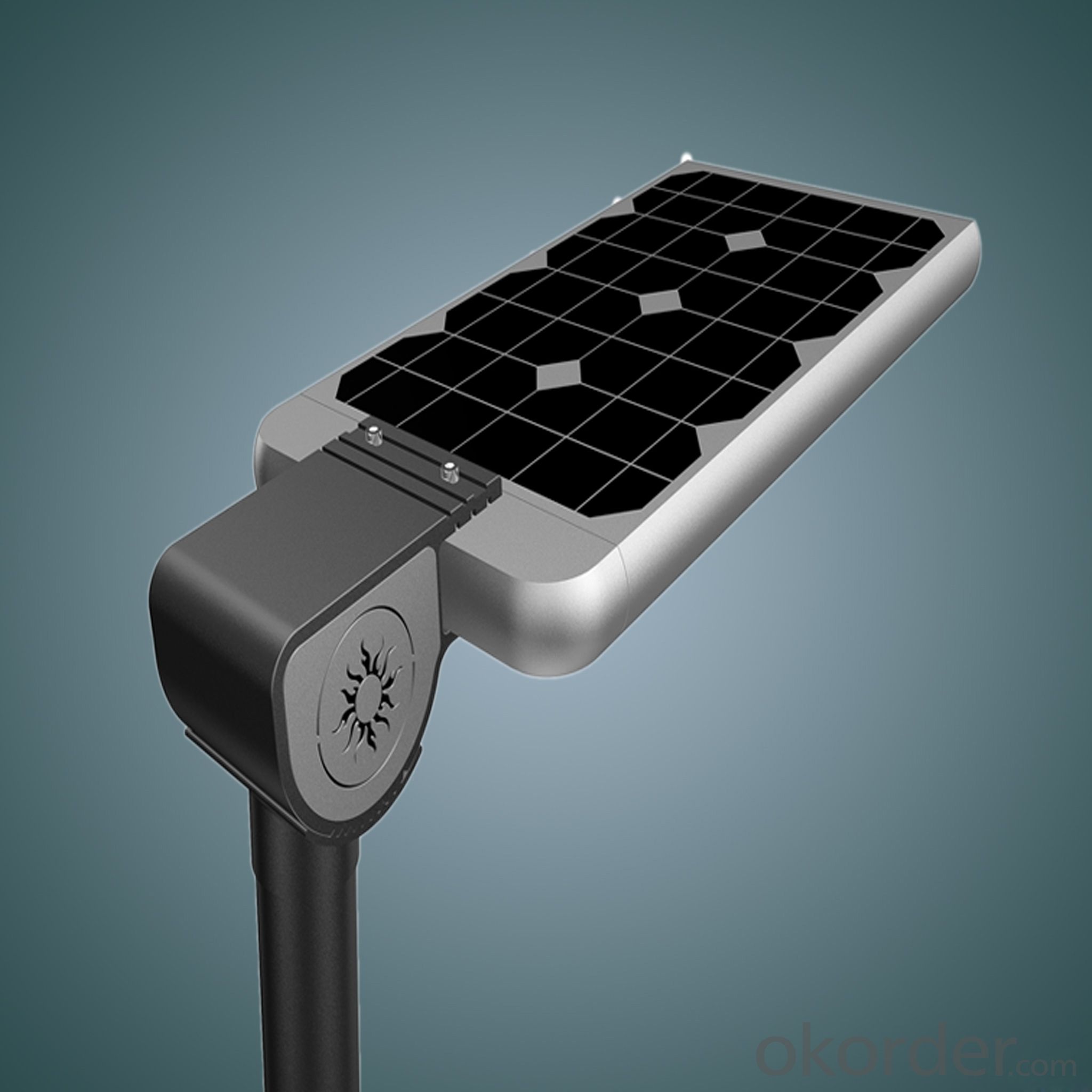

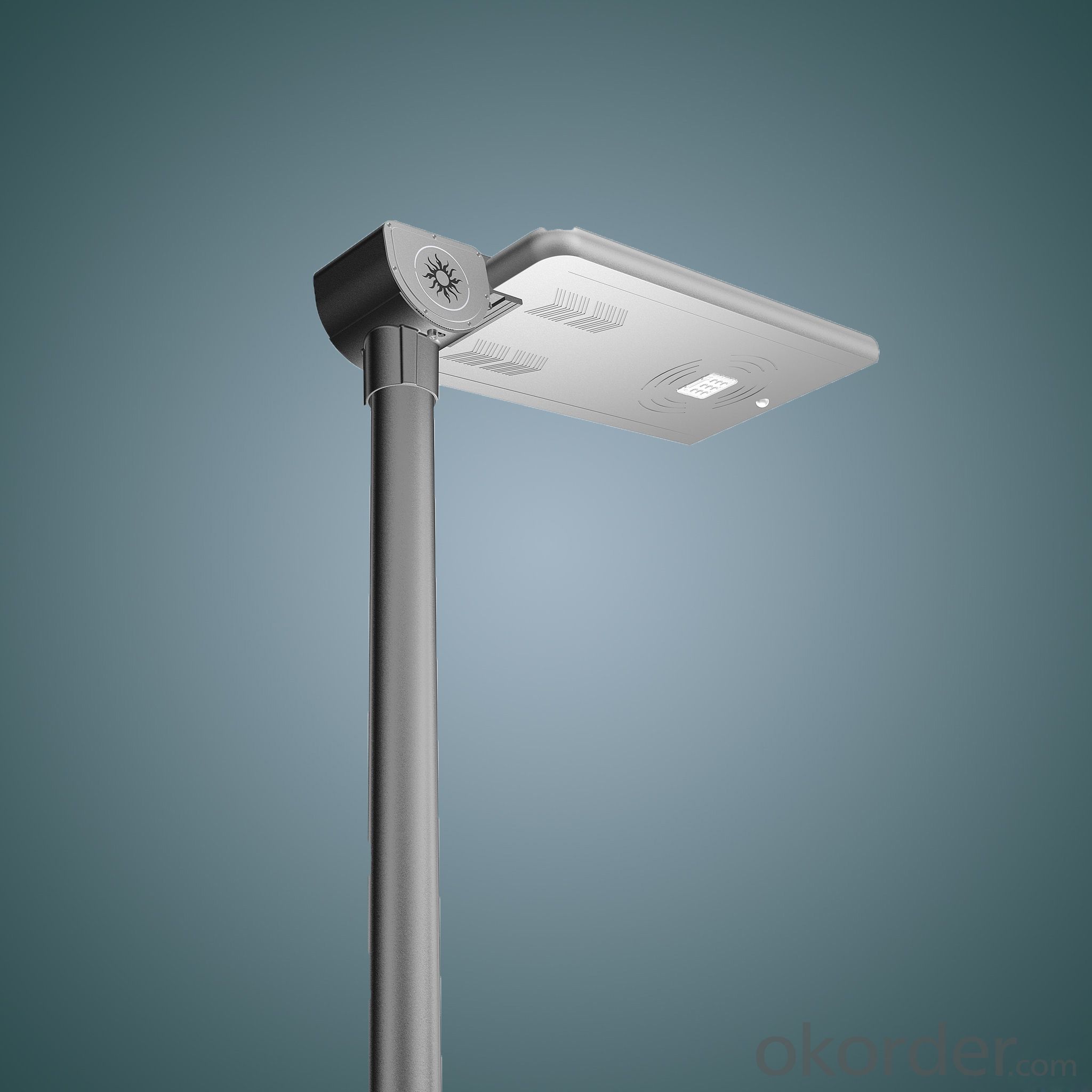

all in one solar powered street light with motion sensor and led price list

Product Description:

all in one solar powered street light with motion sensor and led  price list

Specification:

30W All in One Solar Street Light Specification:

LED  lamp: 9pcs Philips LED,  rated power30W ( dimming 1/3 rated power) efficiency 100-105LM/W,CCT 3000-6000K
Solar panel: mono.,17.5V70W,17% efficiency
Li battery:12V30AHmaintance free Li battery
Controller: 12V10 intelligent optical+time controller and PIR sensor
Mounting Height:6-8M
Size & Weight: 105*43*12CM,32*30*20CM,N.W 18.2KG

Discharge time: 10-12H, 3 days

Our Difference:

1.Patent Unique Appearance: The initial competitive design help you quickly open the market.

2.LED Module Heat Sink Design: It guarantees The Most High Waterproof Level--IP67 and More Than 80,000 hours lifespan.

3.Adjustable Angle: It can receive most of solar energy in different region. Most of other types can't have it.

Product Description:

Project Case:

FAQ:

Notes

1.   Solar light power from sun, weaker solar or long time raining will affect the lamp working time in s short period.

2.   Full charge battery can be stored for 6 months. After longtime transportation or storage, it must to be checked in time and charged. Otherwise, damage might happen.

3.   Heavy dust and leaves cover the solar panel will reduce the efficiency, regular cleaning is necessary.

4.  The various componentsinside the lamp body with good waterproof design, IP65. Different holes are for cooling design. All metal parts are corrosion-resistant aluminumand stainless steel, can withstand high heat and humidity environment.

5.  Longer continuous rainy day out of warranty range, battery may have no enough power to run the led lamp, when the weather turned to sunny, the battery will be charged to run the lamp again.

6.  Different region different solar intensity, the all in one solar light will be different in working time.

Troubleshooting

If the light can not work normally, please follow the way to do anomaly investigation:

LED lights flashing

Batteryunder voltage, this situationwill disappear automatically when battery charged again in sunny days.

LED lights do not work

1.  Please clean the solar panel.

2. After long time raining days, please check the lamp after sunny.

3.  Check cable connection.

4. Please check the battery voltage, if that is lower than 11.5V

5. During day time, cover the solar panel, then can check the system working state.

Some LEDs do not work

  Please contact with us to replace the LED module.
