AGM Separator
1.Structure of AGM Separator Description
AGM separator is widely applied in UPS, and also field of fossil oil and chemical industry as adsorption, filtering and
insulation material. The availabel thickness is from 0.5mm to 3.5mm. It is different thickness under different pressure. The normal pressure is 10KPA, 20KPA and 100KPA. Different pressure demand can be met as customer request. The finished goods can be supplied by cut tape roll or cut pieces.
2.Main Features of the AGM Separator
| Size | 0.5*72*286(100KPa) | Standard Code | JB/T 7630.1-2008 | |
| Report Number | J12113-03 | Test Date | 2012-1-13 | |
| Item | Description | Unit | Standard Valve | Test Result |
| 1 | Appearance | Spotless white, no impurities | Spotless white, no impurities | |
| 2 | Thickness | mm | 0.5±8% | 0.51 |
| 3 | Length | mm | 286±1.5 | 286.6 |
| 4 | Width | mm | 72.0±1.0 | 72.2 |
| 5 | Thensile Strength | KN/m | ≥0.42 Thickness | 0.35 |
| 6 | Quantity | g/m2·mm | ≥200.0 | 219.9 |
| 7 | Resistance | Ω·dm2 | ≤0.0005 Thickness | 0.00032 |
| 8 | Porosity | % | ≥90.0 | 93.1 |
| 9 | Max.Pore size | µm | ≤22.0 | 19.6 |
| 10 | Wicking Height | mm/5min | ≥75 | 100 |
| mm/24h | ≥620 | 750 | ||
| 11 | Picking Weight Loss | % | ≤3.0 | 1.8 |
| 12 | Reductive KMnO4 | ml/g | ≤5.0 | 0.8 |
| 13 | Fe3+ | % | ≤0.0050 | 0.0024 |
| 14 | CL- | % | ≤0.0030 | 0.0018 |
| 15 | H2O | % | ≤1.00 | 0.13 |

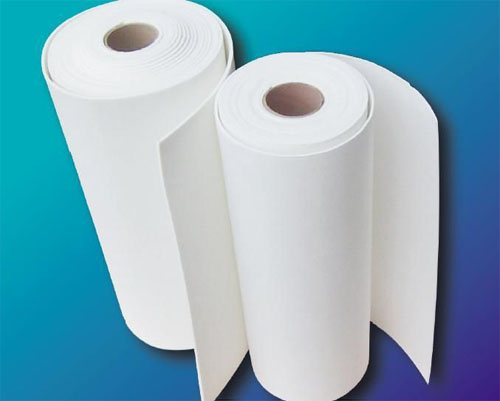

3.AGM Separator Image
4 FAQ of AGM Separaor
We have organized several common questions for our clients，may help you sincerely：
①How about your company？
A world class manufacturer & supplier of AGM Separator，is one of the large-scale professional investment casting production bases in China.OEM casting and forging service available according to customer’s requirements.
②How to guarantee the quality of the products？
We have established the international advanced quality management system，every link from raw material to final product we have strict quality test；We resolutely put an end to unqualified products flowing into the market. At the same time, we will provide necessary follow-up service assurance.
③How long can we receive the product after purchase?
In the purchase of product within three working days, We will arrange the factory delivery as soon as possible. The pecific time of receiving is related to the state and position of customers.Commonly 3 working days can be served.
5. Service
24Hours online give you the fast reply.
