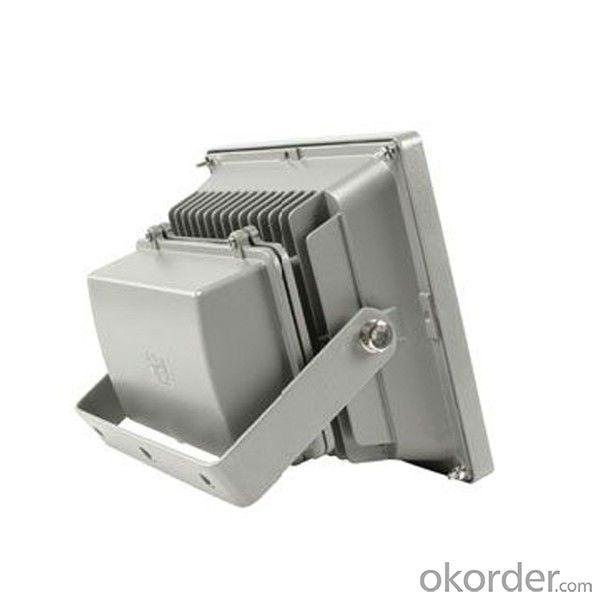

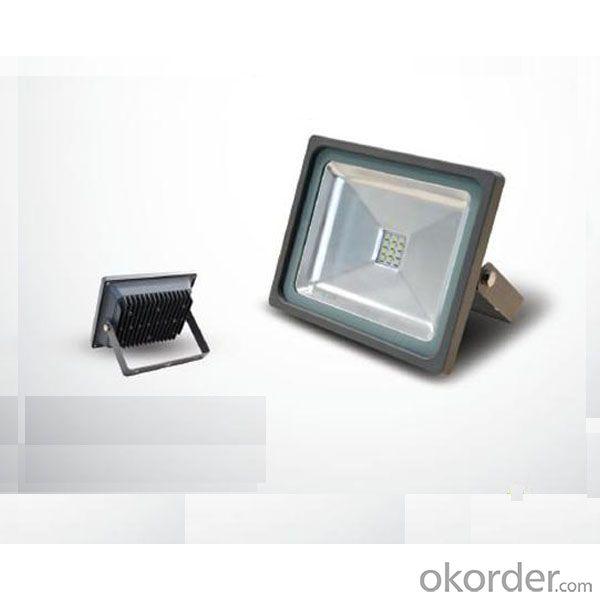

ACHV 50W LED Flood Light
| Model No. | UN-LF-C50 |
| Volt. | 185-265V AC |
| Watt. | 50W |
| PF | >0.9 |
| color | 3000K,5700K |
| Luminous | 3500lm |
| Ra | >70 |
| IP rating | IP65 |
Installation Step Of ACHV 50W LED Flood Light:
* The new technology of ACHV, no external power supply. Directconnect 110V or 220V.
Removal of electronic interference caused by power supply box.
* No electrolytic capacitor, use fewer electronic components, the lamp body is light, thin.
Reduce the lamp failure rate.
Details
| Wattage | 10w | 20w | 30w | 50w | 70w |
| Power factor | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 |
| CCT(K) | 5700 | 5700 | 5700 | 5700 | 5700 |
| initial Lumens(LM) | 700 | 1400 | 2100 | 3500 | 4900 |
| CRI(Ra) | 70 | 70 | 70 | 70 | 70 |
| classification | class I | class I | class I | class I | class I |
| Beam Angle | 120° | 120° | 120° | 120° | 120° |
| Lifestime | 50000 | 50000 | 50000 | 50000 | 50000 |
| Voltage | 198-242VAC | 198-242VAC | 198-242VAC | 198-242VAC | 198-242VAC |
| Ambient Temperature | -25°C-45°C | -25°C-45°C | -25°C-45°C | -25°C-45°C | -25°C-45°C |
| IP | IP65 | IP65 | IP65 | IP65 | IP65 |
Applications:
Stage, Advertising Board, Gym, Stadium, Yard, Lawn, Garden, Park, Plaza,Shopping Mall,
Exhibition Hall,Dock, Highway Toll Station etc
