Loading Port:Tianjin
Payment Terms:TT OR LC
Min Order Qty:25 m.t.
Supply Capability:10000 m.t./month

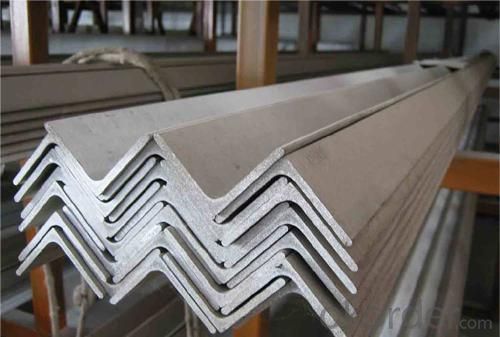

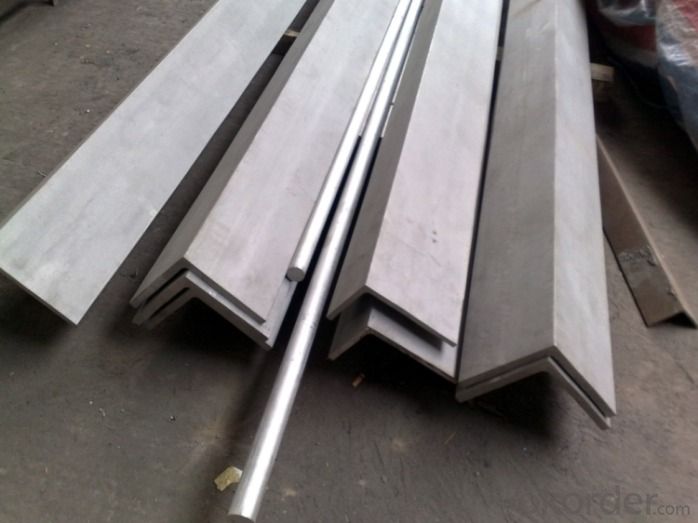

Specifications of Angle Steel
1. Invoicing on theoretical weight or actual weight as customer request
2. Length: 6m, 9m, 12m as following table
3. Sizes
Sizes: 25mm-250mm | ||
a*t | ||
25*2.5-4.0 | 70*6.0-9.0 | 130*9.0-15 |
30*2.5-6.6 | 75*6.0-9.0 | 140*10-14 |
36*3.0-5.0 | 80*5.0-10 | 150*10-20 |
38*2.3-6.0 | 90*7.0-10 | 160*10-16 |
40*3.0-5.0 | 100*6.0-12 | 175*12-15 |
45*4.0-6.0 | 110*8.0-10 | 180*12-18 |
50*4.0-6.0 | 120*6.0-15 | 200*14-25 |
60*4.0-8.0 | 125*8.0-14 | 250*25 |
5. Payment terms:
1).100% irrevocable L/C at sight.
2).30% T/T prepaid and the balance against the copy of B/L.
3).30% T/T prepaid and the balance against L/C
6.Material details:
Alloy No | Grade | Element (%) | |||||
C | Mn | S | P | Si | |||
|
|
|
|
|
|
| |
Q235 | B | 0.12—0.20 | 0.3—0.7 | ≤0.045 | ≤0.045 | ≤0.3 | |
|
|
|
|
|
|
| |
Alloy No | Grade | Yielding strength point( Mpa) | |||||
Thickness (mm) | |||||||
≤16 | ＞16--40 | ＞40--60 | ＞60--100 | ||||
≥ | |||||||
|
|
|
|
|
| ||
Q235 | B | 235 | 225 | 215 | 205 | ||
Alloy No | Grade | Tensile strength (Mpa) | Elongation after fracture (%) | ||||
Thickness (mm) | |||||||
| ≤16 | ＞16--40 | ＞40--60 | ＞60--100 | |||
≥ | |||||||
|
|
|
|
|
|
| |
Q235 | B | 375--500 | 26 | 25 | 24 | 23 | |
Usage & Applications of Angle Steel
According to the needs of different structures, Angle can compose to different force support component, and also can be the connections between components. It is widely used in various building structures and engineering structures such as roof beams, bridges, transmission towers, hoisting machinery and transport machinery, ships, industrial furnaces, reaction tower, container frame and warehouse etc.
Packaging & Delivery of Angle Steel
1. Packing: it is nude packed in bundles by steel wire rod
2. Bundle weight: not more than 3.5MT for bulk vessel; less than 3 MT for container load
3. Marks:
Color marking: There will be color marking on both end of the bundle for the cargo delivered by bulk vessel. That makes it easily to distinguish at the destination port.
Tag mark: there will be tag mark tied up on the bundles. The information usually including supplier logo and name, product name, made in China, shipping marks and other information request by the customer.
If loading by container the marking is not needed, but we will prepare it as customer request.
Production flow of Angle Steel
Material prepare (billet) —heat up—rough rolling—precision rolling—cooling—packing—storage and transportation
Angle, commonly known as Angle on both sides of the cross section is vertical at right angles to each other shape of strip steel. Angle has the points of equal Angle and unequal Angle, two vertical edge length is the same as equal Angle, a long a short for unequal Angle. Its specification in a thick edge width x width x while millimeters said. Angle is the main purpose of: it is mainly used for making frame structure, such as high voltage power transmission tower, steel structure framework on either side of the bridge girder, tower crane on the construction site of pillar and arm, workshop of the column and beam, a small pot shape such as for the side of the road in the place where hung under the shelf, in the window of the solar energy air conditioning rack, etc.
A, Marine Angle steel
Marine Angle of main product description: due to the ship's working environment is bad, so, Marine Angle steel material performance has good toughness, high strength, good corrosion resistance, weldability, and surface properties, etc. The chemical composition of material with normal Angle is not the same. Its main purpose is: it is mainly used for hull internals, etc. 3 N7
Second, the ball flat steel
The ball flat steel is a kind of is mainly used in shipbuilding and to build a bridge in the field of the profiles, including Marine ball flat steel in shipbuilding with auxiliary material. Main product features are:
1, exterior light round, no lines without ribs, and other shaped groove or rib steel surface. This will cause the cohesive force of small flat steel and concrete, and the other the cohesive force of steel bar and reinforced concrete.
2, flat steel smelting in converter, main USES the hot metal as raw material, the harmful elements in molten iron is less, produce the flat steel quality assured.
3, small continuous casting billet length rate is high, can guarantee the flat steel scale rate, meet the needs of users.
Three, L steel
L the Angle steel is also called the unequal different thickness, is adapt to the needs of large ship building and production of new material. L steel except for large ships, can also be used in ocean engineering structure and construction engineering structure of high demand. Its main advantages are:
1, in section height and abdominal advise on the same case, L shape section coefficient and the stiffness is larger than the ball flat steel
2, in the same section coefficient, L was a little thinner than the ball flat steel, steel panel thickness is helpful to improve the quality of the weld.
3, under the condition of same cross section coefficient, increase the storage vessel, improve the economic benefit.
Angle, commonly known as Angle on both sides of the cross section is vertical at right angles to each other shape of strip steel. Angle has the points of equal Angle and unequal Angle, two vertical edge length is the same as equal Angle, a long a short for unequal Angle. Its specification in a thick edge width x width x while millimeters said. Angle is the main purpose of: it is mainly used for making frame structure, such as high voltage power transmission tower, steel structure framework on either side of the bridge girder, tower crane on the construction site of pillar and arm, workshop of the column and beam, a small pot shape such as for the side of the road in the place where hung under the shelf, in the window of the solar energy air conditioning rack, etc.
A, Marine Angle steel
Marine Angle of main product description: due to the ship's working environment is bad, so, Marine Angle steel material performance has good toughness, high strength, good corrosion resistance, weldability, and surface properties, etc. The chemical composition of material with normal Angle is not the same. Its main purpose is: it is mainly used for hull internals, etc. 3 N7
Second, the ball flat steel
The ball flat steel is a kind of is mainly used in shipbuilding and to build a bridge in the field of the profiles, including Marine ball flat steel in shipbuilding with auxiliary material. Main product features are:
1, exterior light round, no lines without ribs, and other shaped groove or rib steel surface. This will cause the cohesive force of small flat steel and concrete, and the other the cohesive force of steel bar and reinforced concrete.
2, flat steel smelting in converter, main USES the hot metal as raw material, the harmful elements in molten iron is less, produce the flat steel quality assured.
3, small continuous casting billet length rate is high, can guarantee the flat steel scale rate, meet the needs of users.
Three, L steel
L the Angle steel is also called the unequal different thickness, is adapt to the needs of large ship building and production of new material. L steel except for large ships, can also be used in ocean engineering structure and construction engineering structure of high demand. Its main advantages are:
1, in section height and abdominal advise on the same case, L shape section coefficient and the stiffness is larger than the ball flat steel
2, in the same section coefficient, L was a little thinner than the ball flat steel, steel panel thickness is helpful to improve the quality of the weld.
3, under the condition of same cross section coefficient, increase the storage vessel, improve the economic benefit.
