Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:100 unit
Supply Capability:10000 unit/month
Product Feature

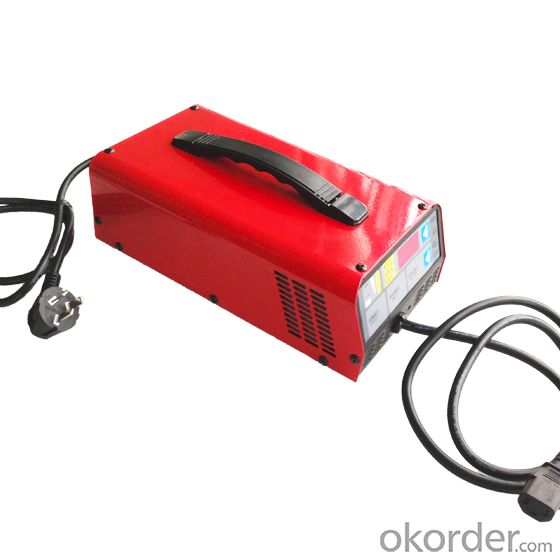

The charger is fully automatic microcomputer intelligent charging, which overcome the weakness of existing power frequency and switching power supply. It has the advantage of small size, light weight, high efficiency, high degree of protection, high seismic level, stability, safe, reliable, easy to use, fault protection, simple maintenance, affordable and others; Using multi-stage charging mode, according to the inherent characteristics of the battery; With intelligent control segment , to ensure the battery is fully charged, also guarantee the battery life in case of overcharging. Especially for unattended charging occasions
Multi-stage charging mode has the advantage of fast charging, high charging efficiency, no over- charging, prolonged battery life, etc.
Charging current is automatically adjusted during the charging process, regardless of the input voltage fluctuations; Each charging phase can switch automatically ;
With multiple protection, such as under voltage, overvoltage, over power, over current, over temperature, anti-surge, anti-reverse, battery identification, overtime shutdown etc ;
Real-time digital LCD displays battery capacity, charge current, charge voltage, charge time and a variety of fault conditions, etc
Using temperature-controlled intelligent cooling fan, to improve the cooling efficiency and prolong life time;
The Application
Widely used for electric forklifts, electric cars, hybrid cars, golf carts, electric buses, electric patrol car, electric boat, clean electric cars and vans as well as other electric equipment.
Main Parameter
Basic Parameter |
Max Current(AC input):15A |
Max Output Power: 900W |
Max Efficiency: ≥93% |
Noise: less than 40 dB |
Working Temperature: -30℃~55℃ |
Storage Temperature: -40℃~80℃ |
Cooling Mode: Forced cooling air |
Product Size: 282mm(L)*154mm(W)*87mm(H) |
W.T.: 4 Kg |
Model No. | Rated Charge Voltage | Max Charge Current | AC Input Voltage (Vac) | Remark |
For Lithium-ion Battery | ||||
CXFC4215-10LiY | 42.0V | 15.0A±5% | 110/220 | |
CXFC5510-13LiY | 54.6V | 10.0A±5% | 110/220 | |
CXFC5515-13LiY | 54.6V | 15.0A±5% | 110/220 | |
CXFC5810-14LiY | 58.4V | 10.0A±5% | 110/220 | |
CXFC5815-14LiY | 58.4V | 15.0A±5% | 110/220 | |
CXFC6712-16LiY | 67.2V | 12.0A±5% | 110/220 | |
CXFC6710-16LiY | 67.2V | 10.0A±5% | 110/220 | |
CXFC7110-17LiY | 71.4V | 10.0A±5% | 110/220 | |
CXFC7310-20LiY | 73.0V | 10.0A±5% | 110/220 | |
CXFC8810-24LiY | 87.6V | 10.0A±5% | 110/220 | |
For AGM Battery | ||||
CXFC2420-12PBY | 24.0V | 20.0A±5% | 110/220 | |
CXFC2430-12PBY | 24.0V | 30.0A±5% | 110/220 | |
CXFC3620-18PBY | 36.0V | 20.0A±5% | 110/220 | |
CXFC3625-18PBY | 36.0V | 25.0A±5% | 110/220 | |
CXFC4815-24PBY | 48.0V | 15.0A±5% | 110/220 | |
CXFC6015-30PBY | 60.0V | 15.0A±5% | 110/220 | |
CXFC7210-36PBY | 72.0V | 10.0A±5% | 110/220 | |
CXFC8410-42PBY | 84.0V | 10.0A±5% | 110/220 | |
FAQ:
1. Are you manufactory of the products above？
---Yes，we are expert in PV solar power system、Telecom power system and lithium-ion Batteries, our products are popular through around 80 countries.
2. Do you have any certifications?
---Yes, we have CE、UL、PSE，FCC，SAA，CB certifications, if customers need specific certifications, we will do our best to support.
3. What about your warranty?
--- One Year warranty guaranteed, and detailed terms for further conversation.
4. Can I know more about your products?
---Please contact us for more details you interested.
