General Introduction

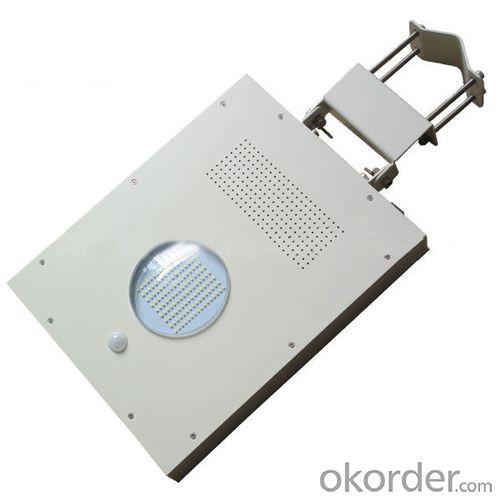

8W high quality solar garden light
Feature
1. All in one Solar garden&street lights, New invention patent products.
2. From 8W to 40W
3. Integration design, put solar panel, Led lamp, battery and cotroller all in a box, without any cable.
4. What you need to do when you receive them is to put them on the pole or wall, easy to ship, install and maintain.
Specification
Integrated Solar garden light (8W) | Model: TY-208 | |||

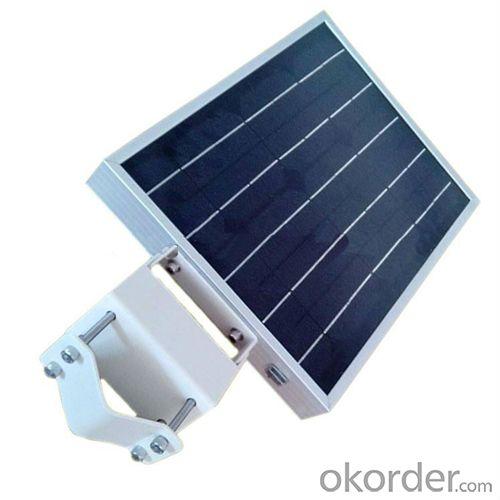

Solar panel | Max power | 18V15W (high efficiency monocrystalline silicon) | ||
Life time | 25 years | |||
Battery | Type | lithium battery | ||
Life time | 5 years | |||
LED Lamp(with sensor) | Max power | 12V 8W | ||
led chip brand | Epistar from Taiwan with high brightness | |||
lumen (LM) | 800-880lm | |||
Life time | 50000hours | |||
Viewing Angle | 120° | |||
Charge time | by sun | 6hours | ||
Discharge time | full power | 12hours | ||
half power | 24hours | |||
working Temperature | range( °C ) | -20°C~+60°C | ||
colour temperature | range(k) | 6000k | ||
mounting height | range (m) | 3-4m | ||
space between light | range (m) | 8-10m | ||
Lamps material of main | aluminium alloy | |||
Certificate | CE / ROHS / IP65 | |||
warranty period | 2years | |||
Packing & Weight | product/packing size | 515*320*52mm / 530*390*140MM | ||
product/packing weight | 5.5kg / 6.5kg | |||
packing box | neutral | |||
Carton size | 560*W570*H410MM | |||
Q'ty/ctn | 4sets/ctn | |||
GW.for carton | 27kg | |||
Packs Containers | 20GP | 800pcs | ||
40GP | 1600pcs | |||
Features
1. Integrated design without line, using wood,bamboo of lamstandard with low cost.
2. Using solar power, Led lamp for saving energy.
3. Using high power capacity and long life Lithium Iron Phosphate Battery.
4. Rain-proof structure
5. Main structure is made by alloy materialfor anti crossion
6. With different power control. Reducing luminance auotmatically.
Applications

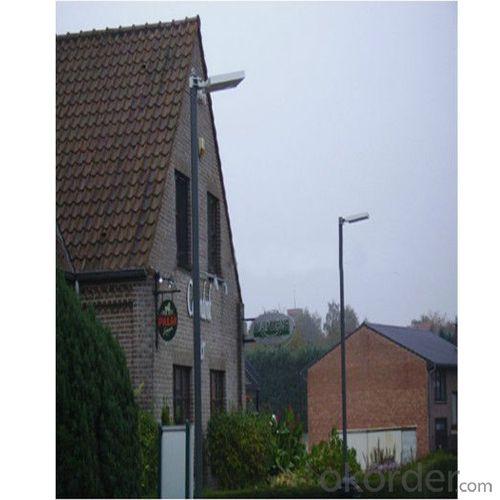

Suitable for most of the streets, residential district road, industrial zong road, square, park, school, campus, farm, villas, gardens and other places of road lighting
For the latest Integration style in the world, hottest selling products in many countries, so far no more than 3 companies to produce this kinds of products in the world, and we have more competitive price and productive power in China, the main advantage as below:
1. Without pole, Integration design, easy to carry, put solar panel, LED lamp, battery and controller all in one, without any cable;
2. Using high capacity and long life of lithium iron phosphate battery,service life 5 years, can resist high temperature and low temperature, can ensure the long service life of the whole product;
3. Easy to maintain,the battery and light are the direct inserted & pluck type, can complete the main maintain by yourself in the future when the battery or light source need to be replaced, don't need a
professional personage to do maintenance.
About us
We are one of the most professional factories on Solar LED products in China,the main products are including Solar street & garden lights, Solar camping lantern, small solar home system and so on.
