Loading Port:Shanghai
Payment Terms:TT or LC
Min Order Qty:8000 watt
Supply Capability:200000 watt/month
Solar system advantages:
1. CE, ROHS approved.
2. High conversion efficiency, high-transmission rate.
3. Energy saving, environmental-friendly.
4. Advanced technology, strict quality control system.
5. Easy installation, safe operation, free maintenance.
6. Low MOQ, fast delivery time, long service life
| Quick Details | |||||
| Specification: | Normal | Application: | Home | Output Voltage (V): | 230~400V |
| Load Power (W): | 7800W | Solar Power (W): | 8000W | Work Time (h): | 10hours |
| Warranty: | 10years | Name: | grid solar system without battery | Model: | SLG-8KW |
| Max AC power: | 8000W | Max DC voltage: | 1000VDC | Max current: | 2*20A |
| MPPT Voltge range: | 300-800VDC | Max DC power: | 8250W | Inverter efficiency: | 98% |
| Solar panel model: | Poly solar panel 250W | ||||
| Packaging & Delivery | |
| Packaging Detail: | grid solar system without battery:Fullset system packed into cartons with pallets, 10sets can packed into 20'container, 22sets can packed into 40'container. |
| Delivery Detail: | 7-15days |
grid solar system without battery
1)Good performance
2)High efficiency
3)Easy installation
4)Speical customs OEM
8KW homeuse grid solar system without battery
Product Description
Product Overviews:
Product Parameters:

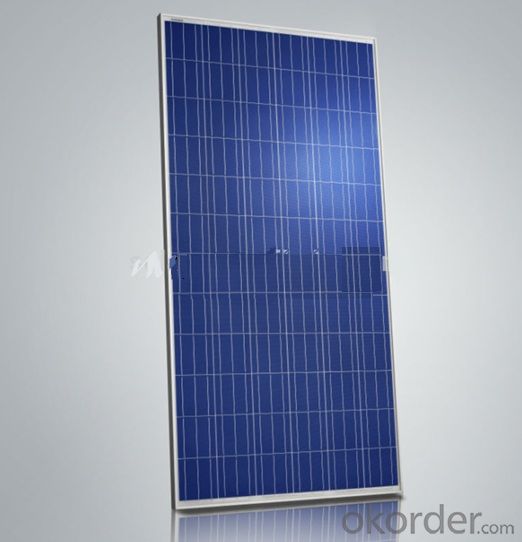

| Solar Panel / PV Module | |
| Module type | TSP-250W |
| Rated Power | 250Wp |
| Tolerance | 0-+3% |
| Open Circuit Voltage (Voc) | 36.58V |
| Short Circuit Current (Isc) | 9.15A |
| Max.Power Voltage (Vm) | 29.5V |
| Max.Power Current (Im) | 8.47A |
| Temperature coefficients of Isc (%) | 0.10/℃ |
| Temperature coefficients of Voc(%) | -0.33/℃ |
| Temperature coefficients of Pm(%) | -0.23/℃ |
| Cell efficiency(%) | ≥17.15% |
| FF(%) | 75% |
| Working Temperature Range | -40 to +85°C |
| Max Systsem Voltage | 1000V DC |
| Max Rated Fuse Current | 15A |
| Nominal operating cell temperature (NOCT): | 47°C |
| Solar cells | 6*10 polycrystalline Cells(156*156mm) |
| Size | 1640×990×40mm |
| Weight | 20Kg |
| The front cover glass | 3.2mm high transmittance,low iron,tempered glasses |
| Frame | Anodized aluminum |
| Juntion box | Protection class IP67 Rated |
| Cbles | Length:900mm, 1*4.0mm2 |
| Standard Testing Condition | 1000W/m², Cell temperature 25°C, AM1.5, Compliance with IEC61215 ,IEC61730-1 / 2 certification standards |

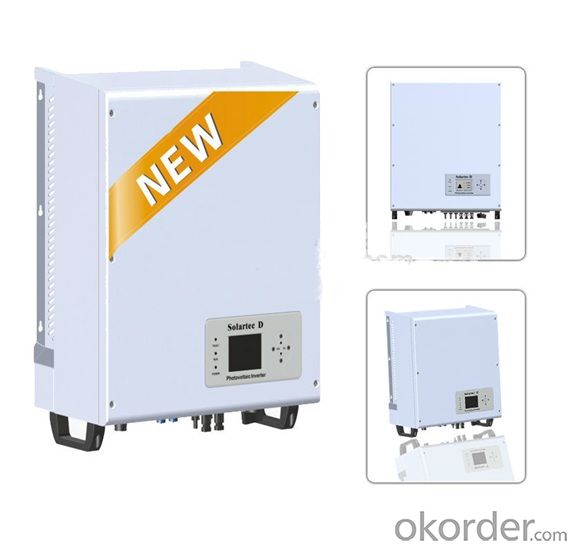

| PV Grid Inverter | |
| Model | Solartec D 8000 |
| Max DC Power | 8250W |
| Max DC Voltage | 1000V |
| System Start-up Voltage | 250V |
| Nominal DC Voltage | 650V |
| PV Voltage MPPT | 300v-800V |
| Max input Current | 2*16A |
| Max input short circuit current | 2*20A |
| Number of MPPT Trackers | 2 |
| Strings of each MPPT | A:1, B:1 |
| Nominal AC Output | 8000w |
| Nominal Grid Frequency Range | 50HZ |
| Max output current | 15A |
| THD of AC current | <3% |
| Nominal grid voltage range | 230-400V(3/N/PE) |
| Adjustable Displacement Factor | 0.9 overexcited…0.9underexcited |
| Number of feed-in phase | three-phase |
| Max efficiency | 98.00% |
| Euro efficiency | 97.30% |
| Mounting Method | Wall bracket |
| Reverse Polarity Protection | Short-CircuitDiode |
| DC Switch | Integrated |
| Short-Circuit Proof | Yes |
| Grid monitoring | Yes |
| Display | LCD |
| Accessory interfaces | RS485/RS232/WIFI |
| Standard Warranty | 5years |
PV Mounting Sysstem
Material is galvanized steel or aluminum,
According to different roof and installation address , have many types for choice.
Benefits of Solar Power:
Now is a great time to go solar and harvest the power of the sun. Here is our top ten list of the benefits to installing solar power:
1, When installed, solar energy is free – no resources are consumed
2, Help to lessen our dependence on heavily polluting coal power stations
3, Fossil fuels can't last forever, future generations will appreciate the effort
4, You are gaining energy independence - add battery backup power for even greater energy security
5, The cost of electricity is only going to rise – insure against that rising cost
6, Quality solar power and water adds value and appeal to your home
7, Solar PV systems are easily upgraded in future - aim to make your house a net energy producer!
8, Solar panels offer a long lifetime of low maintenance service, maybe 30-40 years
9, Your friends will think you're great!
10, You'll feel great for doing your bit for the environment!
