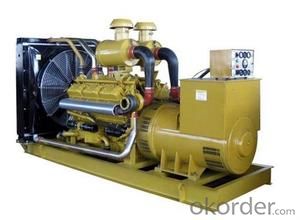

With Cummins engine KT38-GA generator 600kw
is adopted the B,N,K series engine(sino-us JVC),and widely used in army,engineering,mining industry,more
reliable,economic.As the top one of JVC in China diesel gen-sets industry,Donfeng Cummins Engine Co,Ltd
(for B,C,L series)&Chongqing Cummins Engine Co.,Ltd(for M.N.K series) are its branches.
750kva diesel power generator,generator 600kw for sale
Product Description
1. The main parameters of Cummins generator 600kw | |
The model of the unit: | CLK-600CG |
Power: | 600KW/750KVA |
Rated voltage: | 400V/230V(adjustable) |
Rated current: | 1080A |
Rated frequency: | 50Hz/60Hz |
The factor of rated power | COS=0.8(lag) |
The regulating rate of steady voltage: | ≤±0.5% |
The regulating rate of instantaneous voltage: | ≤-10%/ +15% |
The time of steady voltage: | ≤1.5sec |
The waving rate of voltage: | ≤0.5% |
The regulating rate of steady frequency: | ≤3% |
The regulating rate of instantaneous frequency: | ≤±5% |
The time of steady frequency: | 3sec |
The waving rate of frequency: | ≤0.25% |
The waste of fuel with full load: | 206g/kw/h |
size(mm): | 4300*1700*2350 |
weight: | 7000KG |
2.The main parameters of the Cummins generator 600kw engine | ||
Brand: | Cummins | |
Model: | KT38-GA | |
Type: | four strokes, waste gas turbine boost,direct spurting type | |
Cooling way: | water cooling | |
With Type: | V type | |
Bore *Trip : | 159mm*159mm | |
Displacement | 38L | |
Lubricating oil capacity: | 100L | |
Cylinder: | 12cylinders | |
Rotating speed: | 1500r/min or 1800r/min | |
The regulation of rotating speed: | Electronic speed | |
Starting way: | DC24V starting with electricity | |
3.The main parameters of the alternator for Cummins generator 600kw | |
Brand: | ComAp,Stamford,Marathon,Hengsheng |
Type: | brushless (AVR automatic voltage regulating) |
The connecting way of the phase: | three phases four lines |
Insulation degree: | H degree |
Grading Protection: | IP21/IP23 |
Engine Feature for Cummins generator 600kw
1.Diesel, heavy-duty, four stroke, water cooled and direct injection fuel system
2.24/12V D.C starter and charger alternator
3.Industrial capacity exhaust silencer supplied loose with flexible section
4.Engine driven cooling fan with protection guard
5.Steel wire braided fuel lines, vent and rain fittings
6.Set mounted acid battery installed with leads and terminals
Alternator Feature for Cummins generator 600kw
1.Brushless self excited, single bearing, 4 poles
2.Class H insulation
3.IP21/23 protection standard
4.Self-exciting and self-regulating
5.Automatic voltage regulator (AVR)
Control System for Cummins generator 600kw
1.manual / auto start and protection module
2.Equipped with Deep Sea,ComAp,Harsen,Smartgen famous control systems.
3.New integrated controllers in manual and remote start application.
4.Featuring full gen-set monitoring and protection.
5.Powerful graphic display, Icons, symbols and bar graphs
6. High functionality set new standards in gen-set control.
