Loading Port:Ningbo
Payment Terms:TT OR LC
Min Order Qty:2 m.t
Supply Capability:800 m.t/month

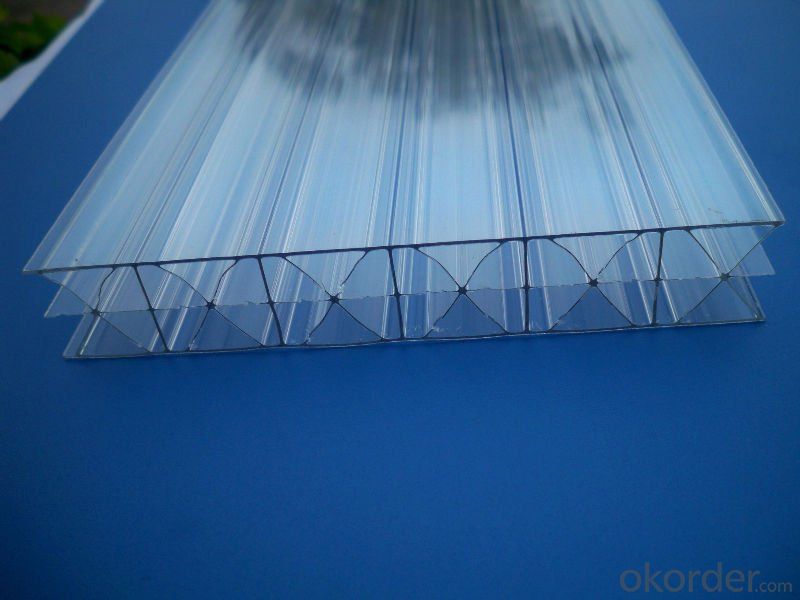

6mm,8mm,10mm thickness clear X-Profile polycarbonate hollow sheet for roofing cover

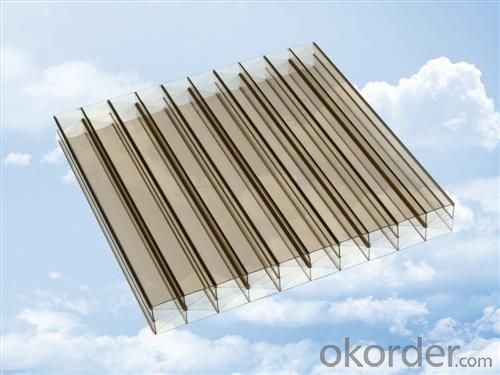

Polycarbonate X-wall hollow sheet
Thickness : 6mm / 8mm / 10mm
Maximum width : 2100mm
Standard Length: 5800mm / 11800mm
Color : Clear , Opal , Green , Blue , Bronze , Lake-blue, etc
Note : Special specification and color can be processed against customer’s demand
Specification:
Thickness (mm) | Structure | Light Transmittance(%) | Min.Bend Radius(mm) | Max Width(mm) | Color |
6 | Honeycomb-wall | 73 | 1380 | 2100 | Clear Opal Green Blue Orange Red Brown |
8 | 72 | 1840 | |||
10 | 71 | 2300 | |||
Material | Continuous-use-temperature rating | Softening temperature | |||
Polycarbonate | 100°C | 145°C | |||
Acrylic | 50°C | 100°C | |||
PVC | 50°C | 70°C |
Features:
1. Light transmission :up to 90%
2. Impact resistant:80 times that of glass, 15 times that of acrylic sheeting
3. Temperature service : -40°C ~~120°C
4. Light weight: only 1/12 of the weight of glass at same thickness
5. UV Protection on one side or both sides(50 micron)
6. Fire resistance: Rated Class B1
7. Sound & Heat Insulation
Applications:
1)Roofing for swimming pool,shopping malls,commercial streets
2)Sunshade for stadiums and bus stops,gazebo,open-air carport
3)Lighting canopy for corridors,passages and subway entries
4)Flashing for bank ATMs,telephone box,gateways,garages
5)Sound and heat insulation wall for expressways and houses
6)Heat preservation material for agricultural greenhouse,flower greenhouse
7)Soundproof material for partitions
8)Un
breakable material for glazing windows,roof glazing
Applications:
1) Roofing light sheet and sunshade for office building, department store, hotel, stadium,school,amusement center,hospital, ect.
2) Skylight, lighting for corridors, balcony, passages and subway entries, walkways.
3) Do-It-Yourself (DIY), awning, canopy.
4) Advertising lamp boxes, sign board.
6) Anti-riot shield, bullet resistant material, Bank ATMs.
7) Conservatories, agricultural greenhouses, zoos, botanical gardens.
8) Industrial Roofing and Glazing
9) Swimming Pools roofing/cover/sheet
