6000L Solar 48V DC Water Pump for Farm Irrigation Systems

Product Description:

Specifications   dc solar water pump

1. Competitive price$Good quality

2. Class-A silicon solar panels, MPPT controller

3. Long life

4. CE&R

6000L solar 48V dc water pump for farm irrigation systems

What are Solar Water Pumps ?

"Solar pumping systems work anywhere the sun shines. Pumping water is a sensible and effective use of solar electric power. During the hot months, when water requirements are highest, a solar pump will provide a reliable water source for a farm.

A solar pumping system is available for almost all applications where an electric pump can be used. Because solar energy varies from one location to another, and over the course of a day, system design is important. Adequate water storage ensures that water is available whenever needed, and balances daily variations in water supply and demand. Thus a small pump only running when the sun shines, plus water storage, can often provide all that is requiremed for water supply."

Working Principle of the Solar Water Pump:

Applications:

1. Irrigation

"A solar water pump is an ideal tool for farmers. They can move or transfer water from nearby sources such as lake

or rivers to irrigate the crops using solar water pump. Farmers and avid gardeners will be able to save on their irrigation budget for using solar water pump, instead of fuel-powered pumps."

2. Livestock

"Ranch owners can also benefit a lot from using solar water pump. They can provide water for their animals in a cost-effective and easy way. The solar water pump can generate water from deep wells, streams, pond, and even pipelines."

3. Garden Fountains

"Aside from functional purposes, a solar water pump can also be used as a cost-effective way to generate water for

your garden fountains. Many household owners use their water pumps as fountains which give the house a different yet refreshing ambiance. You will be able to save a huge amount of energy especially if you want your water

fountains work for several hours a day. In fact, you can turn it on continuously and not worry about paying huge power bills."

4. Home Supply

"Many environmentalists agree that using solar water pump at home is one of the best ways to go “green.” For domestic water use, a booster pump should be used especially if the water source is shallow."

5. Large Scale Watering System for Commercial Establishments

"Solar water pump is now also being used in huge cities. Various large establishments such as hotels, apartments,

condominiums and even government buildings implement solar water pumps in order to save on their power expenses."

6. Water Treatment Systems

"In areas where the quality of water is very poor, government and private companies use water purification process

which requires water pumping. Solar water pumps can be used as a cost-effective substitute for fuel-powered pumping machines. "

Solar water pump working schematic diagram

Features

6 years production experienceLifetime is 10 years.the best pump from China.

Maintenance-free,high efficiency,automatic.

Energy-saving and environment-protected green products.

High-tech from Germany and approve CE and RoHS  certificate.

Main Parts

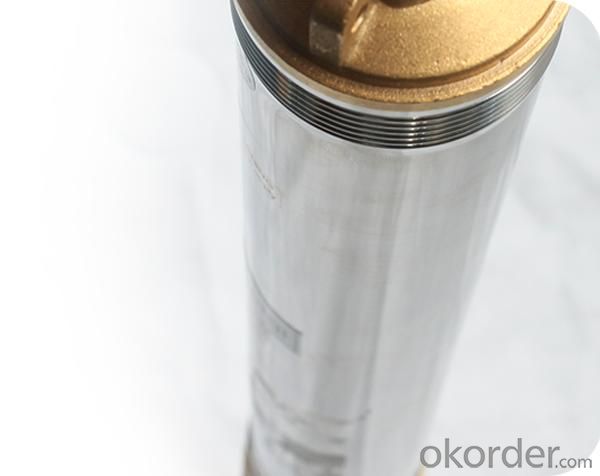

Sumbersible  Helical Rotor Brushless DC Pump

Attractive design

Made of stainless steel and brass

Excellent structure

Utilises stator and rotor doubleplastic patented technology for insulation.

 Maximum flow rate

 Our solar pump max flow rate is 6m3/hour. Max head is 25m  48V solar water pump

Brass coil

Motor insulation degree is larger than 300M ohm which greatly enhances

 the safety and reliability of motor

The Packing Of The Pump:

With thickness 10mm hard carton

DC Controller advantages:

Automatic operation;

Prevents dry play protection;

MPPT double water level detection control;

Charging function allows controller to operate 24 hours a day.

Specification of the controller

Operation Voltage: 48V

Work voltage rate: 46V-56V

Max Input Voltage:  65V

Max Power Current: 15A

Dimension: 218*174*109mm

Weight: 2.05kg

Operating Temperature: -10°C~50°C

Protection Level: IP55

Extra Function: MPPT

 2. Solar Panel for Solar Water pump

1. Class-A+ solar cells undergo a chemical surface micro-texturing process that improves their ability to capture

light.

2. Imported solar cells with industry-leading manufacturing techniques to create high conversion efficiency solar cells

3. 3.2mm tempered glass, special technology for scratch resistance,stronger and more durable

4. High strength aluminum frame at 1.8~2mm thickness, no deformation and high wind resistance

5. Anti-aging junction box, with bypass diodes inside to minimize the power drop caused by shade

Required Panels:

Type of Solar Panel:  Poly-crystalline (conversion rate 15.07%)

Maximum Power: 210W

Maximum Power Voltage (Vmp): 27.44V

Maximum Power current (Imp):   7.65A

Open Circuit Voltage (Voc): 33.03V

Short Circuit Current (Isc): 8.23A

Size of Module: 1482*992*40mm

Required Quantity: 4 pcs, 2pcs in series and 2 in parallel

Float Sensor

There are two kinds of water level sensor: one is a source water level sensor;

the other is a water-filled water level sensor.
