Loading Port:Shekou
Payment Terms:TT OR LC
Min Order Qty:1 pc
Supply Capability:9999 pc/month
The first to work out the integrated style design in the world,which is simple,fashionable,portable, and practical;
With solar energy to supply the power,protection of the earth resources;
With infrared human body induction technology,when someone comes,light work with full power,
otherwise work with low power,backup a longer lighting time;
With lithium-ion LiFePO4 battery to ensure a longer lifespan;
Without cable,easy for installation;
Waterproof,safe and reliable;

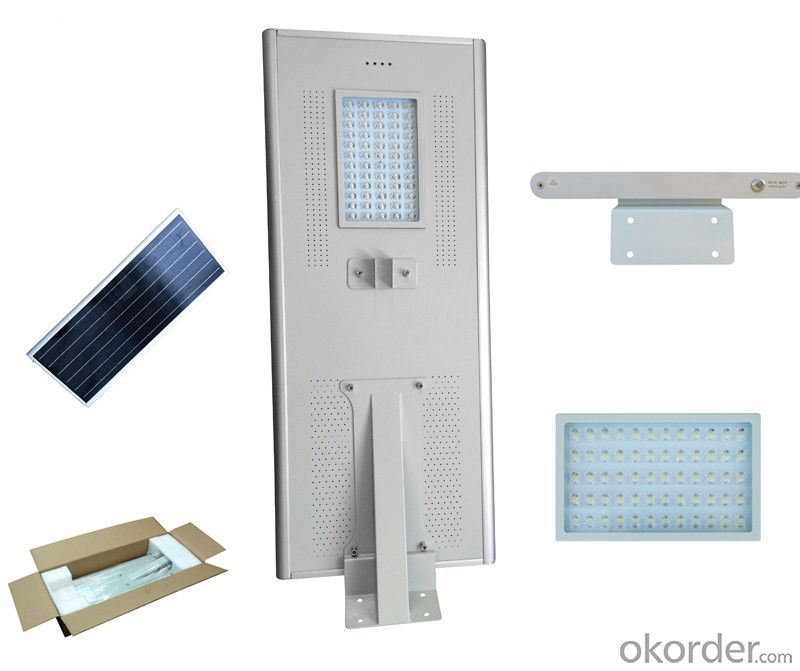

With the idea of modular design,convenient for installation,maintenance and repair;
Using Aluminum alloy as the main body material,with good rust and corrosion resistance.
Model: | HYTN-CSSTY-260 |

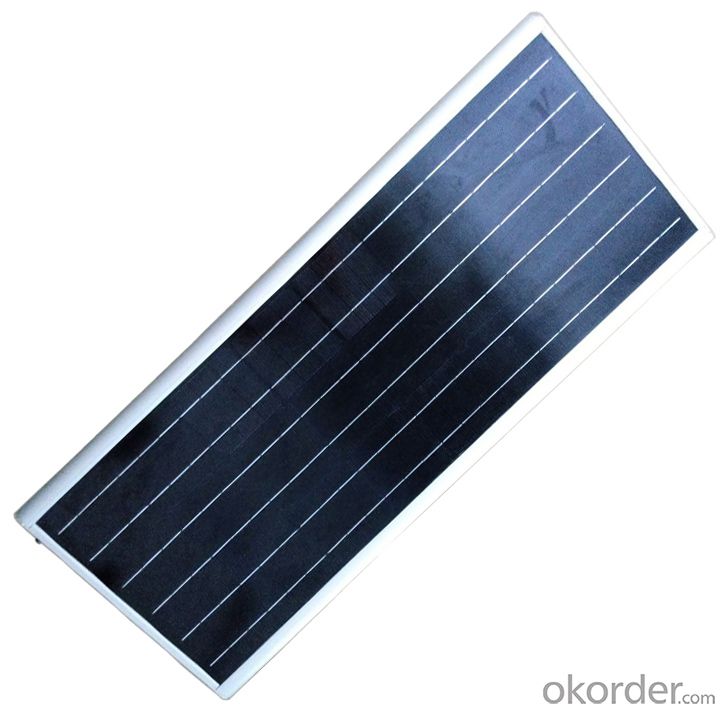

Solar panel Max power: | 18V/90W (high efficiency imported silicon solar cell) |
Solar panel Life time | 25 years |
Battery Type | lithium battery(Life time 5 years) |
LED Max power | 12V 60W |
Led chip brand | Bridgelux from USA with high brightness |
Lumen (LM) | 6000-6600lm |
LED Life time | 50000hours |
Lighting Viewing Angle | 120° |
Charge time(by sun): | 6-7hours (with enough strong shine) |
Discharge time | 10 hours |
Working TEMP( ℃ ) | -20~+60 |
CCT (k) | 6500k-7000k |
Mounting height(m): | 8-9m |
Space between light(m): | 25-30m |
Lamps material of main: | aluminium alloy |
Certificate: | ISO / CE / ROHS / IP65 |
Warranty period: | 2years |
Unit size: | 1080*450*153mm |
N.W: | 20kg |
Inner box: | / |
Carton size: | 1175*500*192mm |
Q'ty/ctn: | 1sets/ctn |
GW.for carton: | 23 kg |
20GP container: | 230 set |
40GP container: | 478 set |
