Loading Port:SHENZHEN
Payment Terms:TT OR LC
Min Order Qty:30 unit
Supply Capability:500 unit/month

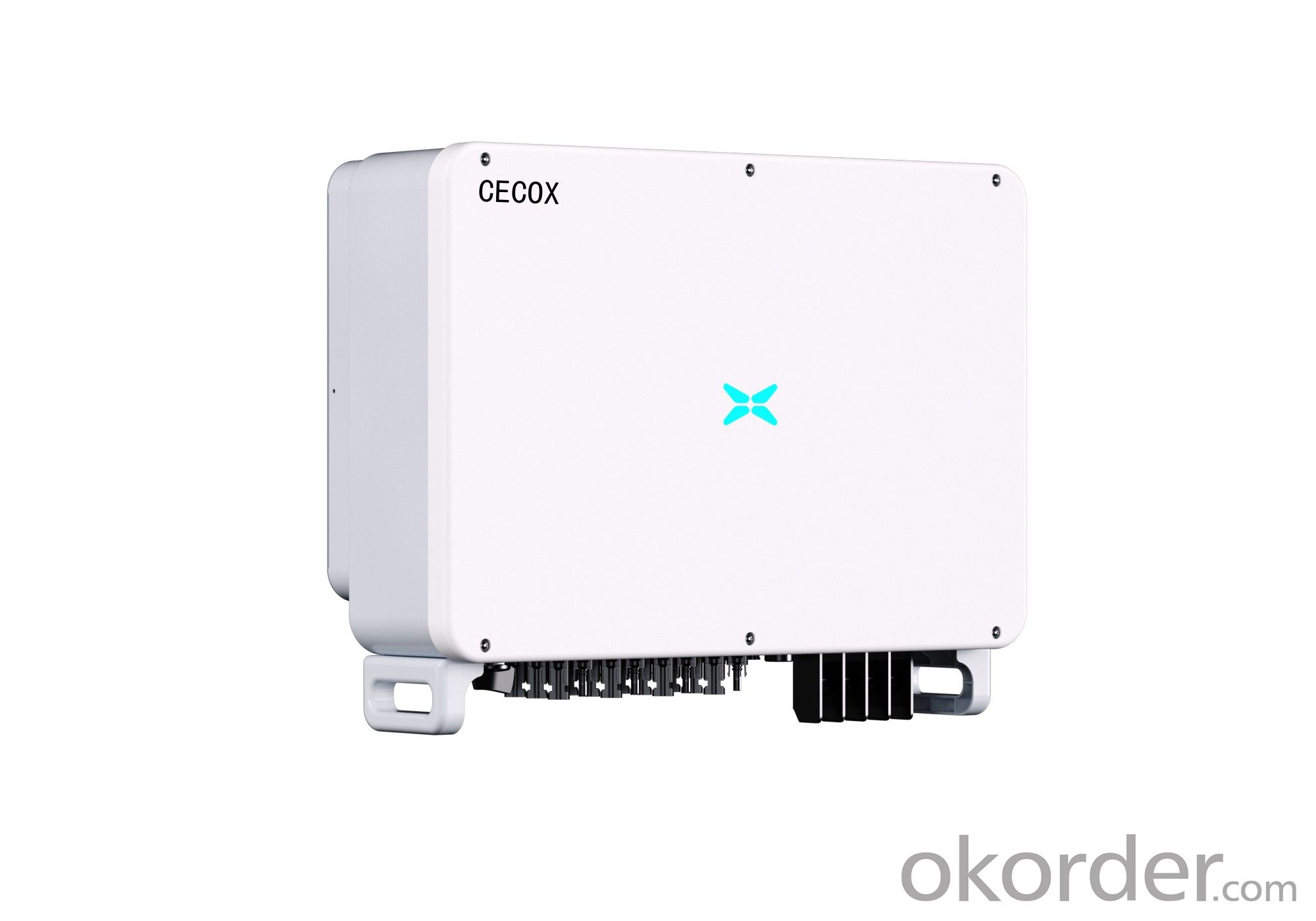

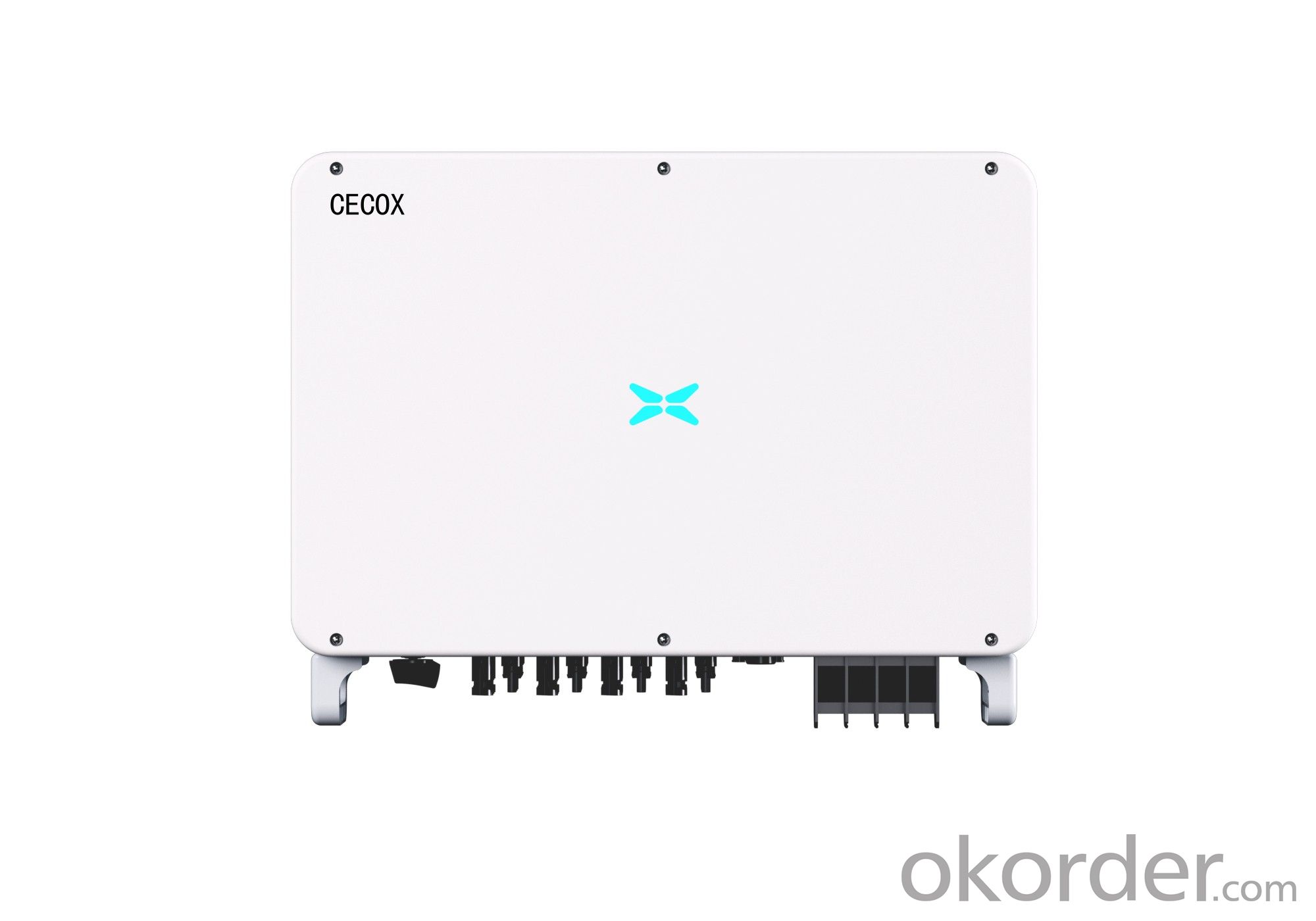

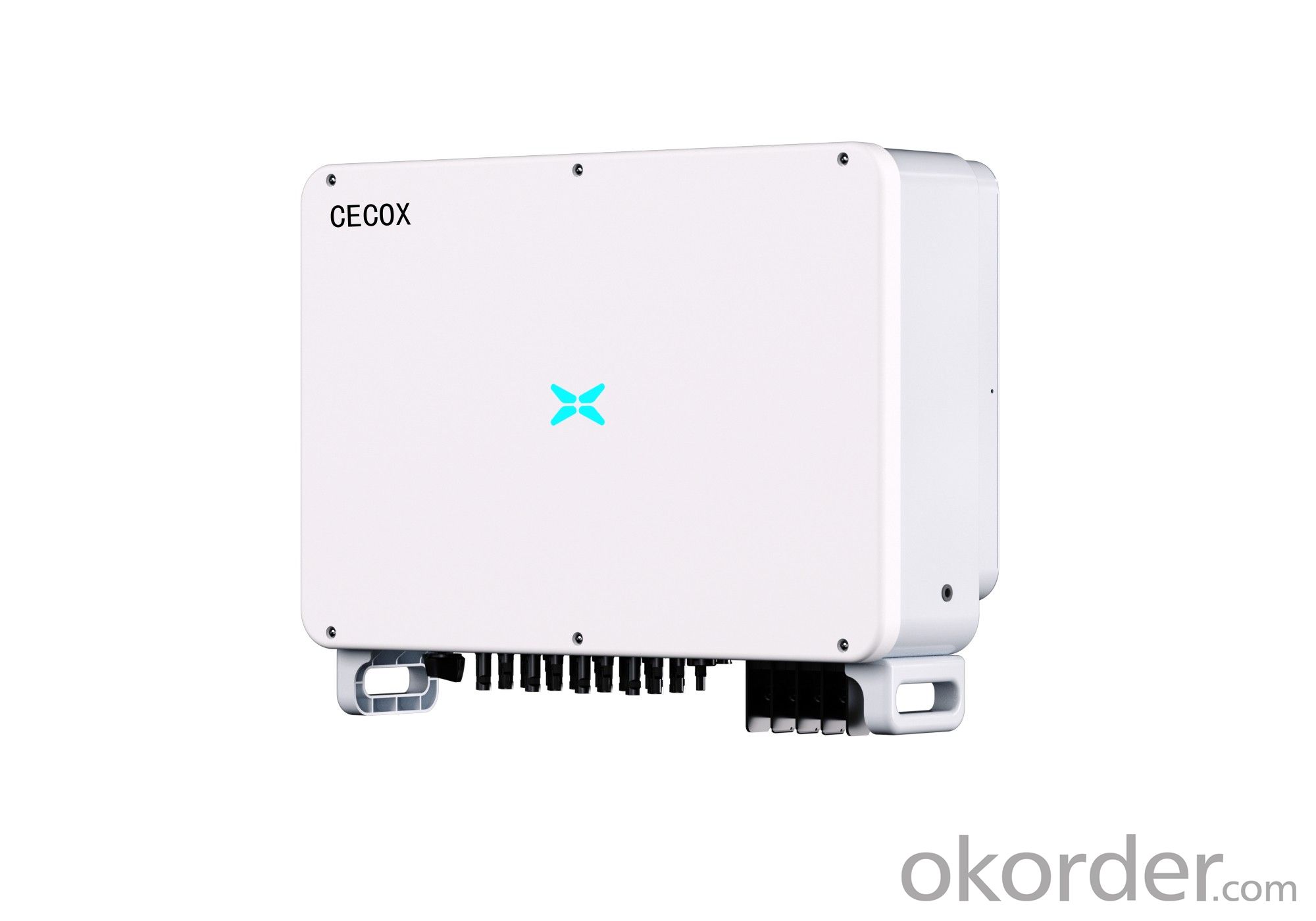

XG50kW-70kW
Three Phase On-Grid Solar Inverter
XG50KTR | XG50KTRL | XG60KTR | XG60KTRL | XG66KTRL | XG70KTRL | |
Input(DC) | ||||||
Max. Input Power | 80 kW | 96 kW | 105.6kW | 112kW | ||
Max. Input Voltage | 1100V | |||||
Start Voltage | 250V | |||||
Rated Input Voltage | 600V | 700V | ||||
Full-load MPP Voltage Range | 520V-850V | 600V-850V | ||||
MPPT Voltage Range | 200V-1000V | |||||
Number of MPP Trackers | 4 | |||||
Number of string per MPPT | 3/2/3/2 | 3/3/3/3 | ||||
Max.Current per MPPT | 39A/26A/39A/26A | 39A | ||||
Max.Short Circuit Current per MPPT | 48A/32A/48A/32A | 48A | ||||
Output(AC) | ||||||
Max. Output Current | 79.7 A | 66.2 A | 95.6 A | 79.4 A | 87.4A | 96.2A |
Rated Output Power | 50 kW | 60 kW | 66kW | 70kW | ||
Max. Output Power | 55 kVA | 66kVA | 72.6kVA | 77kVA | ||
Rated Grid Frequency | 50 Hz / 60 Hz | |||||
Rated Grid Voltage | 230Vac / 400Vac | 277Vac / 480Vac | 230Vac / 400Vac | 277Vac/480Vac | ||
Power Factor | >0.99 (0.8 leading~0.8 lagging) | |||||
THDi | <3% (Rated Power) | |||||
Efficiency | ||||||
Max. Efficiency | 98.70% | 98.80% | ||||
European Efficiency | 98.40% | 98.50% | ||||
MPPT Efficiency | 99.90% | |||||
Protection | ||||||
DC reverse polarity protection | Yes | |||||
Anti-Islanding protection | Yes | |||||
AC short circuit protection | Yes | |||||
Residual current monitoring unit | Yes | |||||
Insulation resistance monitoring | Yes | |||||
Ground fault monitoring | Yes | |||||
Grid monitoring | Yes | |||||
PV string monitoring | Yes | |||||
Surge protection | Type II | |||||
AFCI protection | Optional | |||||
Communication | ||||||
Display | LED / LCD / WiFi+App | |||||
Communication | Standard：RS485 Optional：WiFi / GPRS / Ethernet | |||||
Standard Compliance | ||||||
Grid Connection Standards | IEC 61727, IEC 62116, IEC 60068, IEC 61683, VDE-AR-N 4110:2018, VDE-AR-N 4105:2018, VDE-AR-N 4120:2018, EN 50549, AS/NZS 4777.2:2020, CEI 0-21, VDE 0126-1-1/A1 VFR2014, UTE C15-712-1:2013, DEWA DRRG, NRS 097-2-1, MEA/PEA, C10/11, G98/G99 | |||||
Safety/EMC | IEC 62109-1:2010, IEC 62109-2:2011, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011 | |||||
General Data | ||||||
Dimensions (W*H*D) | 650 x 450 x 260 mm | |||||
Weight | 50 kg | |||||
Operating Temperature Range | -30° C ~ +60° C | |||||
Cooling Method | Smart Cooling | |||||
Protection Degree | IP66 | |||||
Max. Operating Altitude | 4000 m | |||||
Relative Humidity | 0 ~ 100% | |||||
Topology | Transformerless | |||||
Night Power Consumption | < 1 W | |||||
MARKETING & SERVICE NETWORK
CNBM global sales team provides customers with professional and efficient pre-sale,
in sale and after-sale services, and enhances the added value of the brand with high-quality services.
Products Details:
High voltage protection Over load protection
Battery reverse connected protection Dust-proof
Low voltage protection Overheating protection
Output short-circuit protection Insect prevention
FAQ:
Q1:May I take some samples to test before placing the order ?
A1:Yes, welcome to take some sample to test!
Q2:How about the delivery time?
A2:7 days for sample; 25 days for bulk order.
Q3:What is the warranty of the controller?
A3:1 years warranty.
Q4:How to solve the technical problems?
A4:24 hours after-service consultancy just for you and to make your problem to be solved easily.
Q5:What payment methods do your company support?
A5:T/T, Western Union, Paypal, L/C etc.
Q6:What are the price terms can you offer for us?
A6:We can accept EXW, FOB, CIF and so on.
Q7:Do you have any certifications for your products?
A7:We have ISO9001:2000, CE, RoHS, certificates for all of our products.
