Loading Port:Ningbo
Payment Terms:L/C,T/T
Min Order Qty:1000 Pcs pc
Supply Capability:100000 Pcs Per Month pc/month
Description:

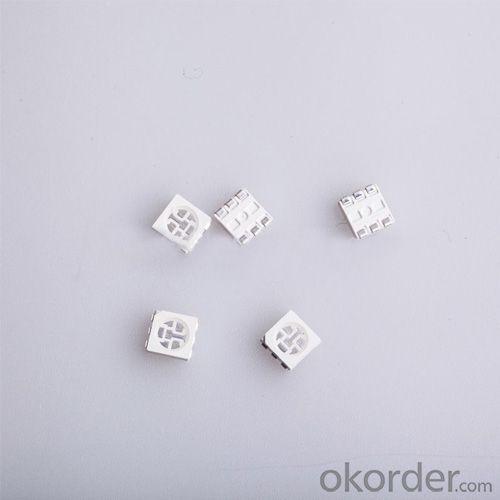

This surface-mount LED comes in standard package dimension.
It has a substrate made up of a molded plastic reflector sitting on top of a bent lead frame.
The die is attached within the reflector cavity and the cavity is encapsulated by silicone.
The package design coupled with careful selection of component materials allow these products to perform with high reliability.
Features:
1. Emitted Color: Natural White
CCT: about 4000K
Luminous Flux: 6.5-7lm
Luminous intensity: 2200~2400mcd @120 degrees
2. Lead frame: White
3. Suitable for all SMT assembly methods.
4. Compatible with infrared and vapor phase reflow solder process.
5. Compatible with automatic placement equipment.
6. This product doesn’t contain restriction Substance, comply ROHS standard.
1, 5050 smd led 18-20LM, 20-22LM, 22-24LM
2, 5630 smd/5053 smd led 40-45lm; 45-55lm
| Part No. | Color | Packaging type | Brightness | Color temperature/wavelength | Current | Voltage | Angle |
| 5050 series | white/warmwhite | PLCC6 | 12-14lm | 2500-25000K | 60 | 3.0-3.4 | 120° |
| 14-16lm | 3.0-3.4 | ||||||
| 16-18lm | 3.0-3.4 | ||||||
| 18-20lm | 3.0-3.4 | ||||||
| 20-22lm | 3.0-3.4 | ||||||
| 22-24lm | 3.0-3.4 | ||||||
| Red | 600-800mcd | 620-630 | 60 | 1.8-2.2 | 120° | ||
| 1000-1500mcd | |||||||
| 1500-2000mcd | |||||||
| Yellow | 1000-1500mcd | 588-595 | 60 | 1.8-2.2 | 120° | ||
| 1500-2000mcd | |||||||
| Blue | 600-800mcd | 455-465 | 60 | 3.0-3.4 | 120° | ||
| Green | 4000-6000mcd | 515-535 | 60 | 3.0-3.4 | 120° |
New goods
3528 0.5W.45-55lm
3528,30MA. 11-12lm.
5050 white SMD led/ 5050 rgb
Color avaible:white , blue , greed, red,rgb etc
Vf: 3.0 to 3.6/1.8 to 2.2
IF: 60mA
View angle: 120degree
no decay in 1000hours
Delivery:
Shipping Service | Estimated Delivery Time |
DHL | 2-8 business days |
FedEx | 3-8 business days |
TNT | 2-10 business days |
UPS | 1-7 business days |
EMS | 6-14 business days |
ePacket | 7-12 business days |
China Post Air Mail | 7-15 business days |
China Post SAL | 14-30 business days |
Air freight | 3-10 business days |
By Sea | 30-40 business days |
1. 3-5 business days for Sample Orders; 7-30 business days for Bulk Orders for Bulk Orders.
2. "Business days" means Monday-Friday, excluding holidays.
3. DHL and UPS cannot ship to military or P.O. boxes address
4. The Shipping Service above is for reference only, for any other questions, please feel free to contact us.
