Loading Port:Shenzhen
Payment Terms:L/C,T/T
Min Order Qty:5000 Pcs pc
Supply Capability:100000 Pcs Per Month pc/month
5050 rgb /white smd led high brightness

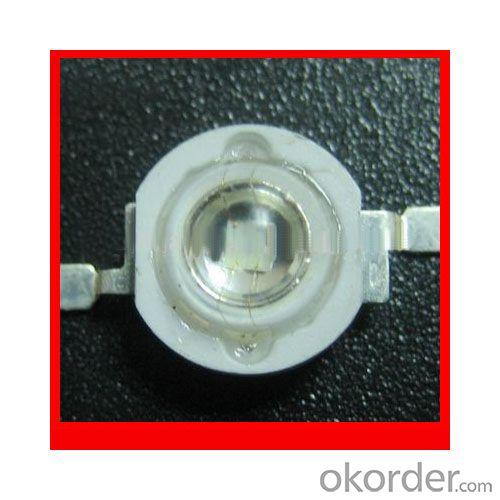

Detail View of SMD LED
parameter | Symbol | Value | Unit |
Forward Current | If | 60 | mA |
Reverse Voltage | Vr | 5 | V |
Operating Temperature | Topr | -25~+85 | °C |
Storage Temperature | Tstg | -35~+85 | °C |
Soldering temperature | Tsol | 260±5°C(for4sec) | °C |
Power Dissipation | Pd | 180 | mW |
Pulse Current | IFP | 100 | mA |
Opto-Electronical Specification
Parameter | Symbol | Min | Typ | Max | Unit | Tolerance | Test Conditions |
Forward Voltage | Vf | 3.0 | --- | 3.4 | V | ± 0.05V | IF=60mA Test Temperature =25°C |
Luminous Intensity | IV | 4800 | --- | 5200 | mcd | ± 60 mcd | |
Color Temperature | TC | 2700 | --- | 9000 | k | ±50k | |
Chromatic current | X | --- | --- | --- | / | ±0.005 | |
Y | --- | --- | --- | / | ±0.005 | ||
Luminous Flux | Φ | 18.0 | --- | 22.0 | Lm | ±2 Lm | |
Color rendering index | Ra | -- | 82 | --- | / | ||
Lighting Angle | θ | 115 | 120 | 125 | deg | ±2 |
Application:
Home lighting, office lighting, school lighting, shop decoration, restaurants, bars, pubs and cafe lighting, under cabinet lighting, show case lighting, art lighting, museum displays lighting, workshop lighting, etc.
Sales points/Focus:
1. Quality assurance both for our products and before/after-sales service
2. Well-trained and experienced staffs to answer all your enquires in fluent English.
3. Great variety of products with competitive price.
4. Attractive design, develop new products monthly
5. Environment friendly technology
6. Shipping port: Shanghai, Mainland China.
7. Discounts are offered based on order quantities.
Payment:
T/T,PAYPAL,Escrow or other payment way as you like.
Shippment:
DHL,UPS, FEDEX ,EMS or Registered Airmail .
Delivery time:
1. By UPS, DHL, FEDEX: 3-5 businessdays
2. By airmail: 1-2 weeks to ASIA, West EURO, and North America.
2-3 weeks to South America, Mid-East, East EURO and Africa
