Loading Port:Shenzhen
Payment Terms:L/C,T/T
Min Order Qty:5000 Pcs pc
Supply Capability:100000 Pcs Per Month pc/month

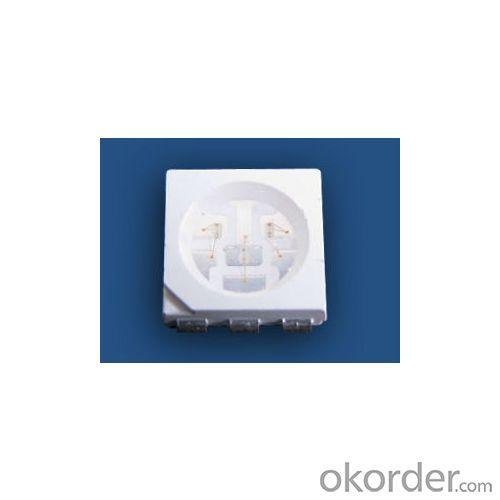

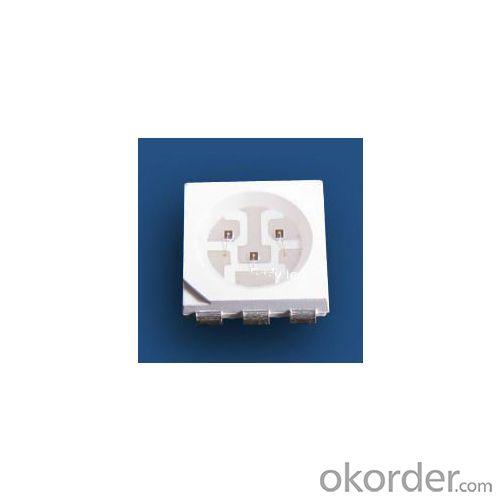

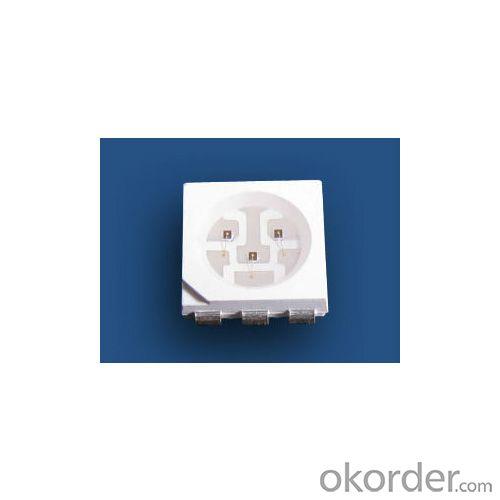

5050 rgb smd led plcc-6 (Epistar chips inside)
| Item | Part No. | Wavelength/CCT | Intensity | Voltage | Power |
| SMD5050 white | FD-5050W-1 | 5500-6000k | 14-20LM | 3.0-3.5v | 0.18W |
| FD-5050W-2 | 6000-6500k | 14-20LM | 3.0-3.5v | 0.18W | |
| FD-5050W-3 | 6500-7000k | 14-20LM | 3.0-3.5v | 0.18W | |
| FD-5050W-4 | 7000-7500k | 14-20LM | 3.0-3.5v | 0.18W | |
| FD-5050W-5 | 7500-8000k | 14-20LM | 3.0-3.5v | 0.18W | |
| SMD5050 reddish white | FD-5050RW-1 | 2000-2400K | 14-20LM | 3.0-3.5v | 0.18W |
| FD-5050RW-2 | 2400-2700k | 14-20LM | 3.0-3.5v | 0.18W | |
| SMD5050 Yellowish white | FD-5050YW-1 | 2800-3200K | 14-20LM | 3.0-3.5v | 0.18W |
| FD-5050YW-2 | 3200-3500K | 14-20LM | 3.0-3.5v | 0.18W | |
| SMD5050 cool white | FD-5050CW-1 | 8000-9000K | 14-20LM | 3.0-3.5v | 0.18W |
| FD-5050CW-2 | 9000-10000K | 14-20LM | 3.0-3.5v | 0.18W | |
| FD-5050CW-3 | 10000-12000K | 14-20LM | 3.0-3.5v | 0.18W | |
| FD-5050CW-4 | 12000-15000K | 14-20LM | 3.0-3.5v | 0.18W | |
| FD-5050CW-5 | 20000-25000K | 14-20LM | 3.0-3.5v | 0.18W | |
| SMD5050 blue | FD-5050B | 460-470nm | 1000-3500mcd | 3.0-3.5v | 0.18W |
| SMD5050 Amber | FD-5050A | 600-610nm | 1000-3500mcd | 1.9-2.2V | 0.12W |
| SMD5050 Green | FD-5050G | 520-525nm | 2500-5500mcd | 3.0-3.5v | 0.18W |
| SMD5050 Yellow | FD-5050Y | 588-595nm | 1200-3500mcd | 1.9-2.2V | 0.12W |
| SMD5050 Red | FD-5050R | 620-625nm | 1200-3500mcd | 1.9-2.2V | 0.12W |
| SMD5050 RGB | FD-5050RGB | R:350-450MCD B:250-300MCD G:900-1100MCD | |||
| Item | Part No. | Wavelength/CCT | Intensity | Voltage | Power |
| SMD3528 white | FD-3528W-1 | 5500-6000k | 4-7LM | 3.0-3.5v | 0.06W |
| FD-3528W-2 | 6000-6500k | 4-7LM | 3.0-3.5v | 0.06W | |
| FD-3528W-3 | 6500-7000k | 4-7LM | 3.0-3.5v | 0.06W | |
| FD-3528W-4 | 7000-7500k | 4-7LM | 3.0-3.5v | 0.06W | |
| FD-3528W-5 | 7500-8000k | 4-7LM | 3.0-3.5v | 0.06W | |
| SMD3528 reddish white | FD-3528RW-1 | 2000-2400K | 4-7LM | 3.0-3.5v | 0.06W |
| FD-3528RW-2 | 2400-2700k | 4-7LM | 3.0-3.5v | 0.06W | |
| SMD3528 Yellowish white | FD-3528YW-1 | 2800-3200K | 4-7LM | 3.0-3.5v | 0.06W |
| FD-3528YW-2 | 3200-3500K | 4-7LM | 3.0-3.5v | 0.06W | |
| SMD3528 cool white | FD-3528CW-1 | 8000-9000K | 4-7LM | 3.0-3.5v | 0.06W |
| FD-3528CW-2 | 9000-10000K | 4-7LM | 3.0-3.5v | 0.06W | |
| FD-3528CW-3 | 10000-12000K | 4-7LM | 3.0-3.5v | 0.06W | |
| FD-3528CW-4 | 12000-15000K | 4-7LM | 3.0-3.5v | 0.06W | |
| FD-3528CW-5 | 20000-25000K | 4-7LM | 3.0-3.5v | 0.06W | |
| SMD3528 blue | FD-3528B | 460-470nm | 300-600mcd | 3.0-3.5v | 0.06W |
| SMD3528 Amber | FD-3528A | 600-610nm | 300-500mcd | 1.9-2.2V | 0.04W |
| SMD3528 Green | FD-3528G | 520-525nm | 400-2000mcd | 3.0-3.5v | 0.06W |
| SMD3528 Yellow | FD-3528Y | 588-595nm | 300-500mcd | 1.9-2.2V | 0.04W |
| SMD3528 Red | FD-3528R | 620-625nm | 200-500mcd | 1.9-2.2V | 0.04W |
| SMD3528 RGB | FD-3528RGB | R:350-450MCD B:250-300MCD G:900-1100MCD |
| 1. Absolute Maximum Ratings (Ta=25°C) | |||
| Item | Symbol | Absolute Maximum Rating | Unit |
| Forward Current | IF | 350 | mA |
| Pulse Forward Current | IFP | 700 | mA |
| Allowable Reverse Current | IR | 10 | uA |
| Power Dissipation | PD | 1 | W |
| Operating Temperature | Topr | -30~+85 | °C |
| Dice Temperature | Tstg | -40~+100 | °C |
| Soldering Temperature | Tsod | 260 | °C |
| SMD3528 | ||||
| Part No. | Color | Wavelength/ CCT | Intensity | Voltage |
| FD-3528W-A | Pure white : 5500-8000K Reddish Warm white : 2000-2700K Yellowish Warm white : 2800-3500K Cool White : 8000-25000K | 3-5lm | 3.0-3.2V | |
| FD-3528W-B | 5-6lm | 3.0-3.2V | ||
| FD-3528W-C | 6-7lm | 3.0-3.2V | ||
| FD-3528W-D | 7-8lm | 3.0-3.2V | ||
| FD-3528B | Blue | 460-470nm | 300-600mcd | 3.0-3.2V |
| FD-3528G | Green | 520-525nm | 400-2000mcd | 3.0-3.2V |
| FD-3528R | Red | 620-630nm | 200-500mcd | 1.9-2.3V |
| FD-3528Y | Yellow | 588-595nm | 300-500mcd | 1.9-2.3V |
| FD-3528A | Amber | 600-610nm | 300-500mcd | 1.9-2.3V |
| FD-3528IR | Infrared | 850nm | 3.2-3.4V | |
| SMD5050 | ||||
| Part No. | Color | Wavelength/ CCT | Intensity | Voltage |
| FD-5050W-A | Pure white : 5500-8000K Reddish Warm white : 2000-2700K Yellowish Warm white : 2800-3500K Cool White : 8000-25000K | 10-12lm | 3.0-3.4V | |
| FD-5050W-B | 14-16lm | 3.0-3.4V | ||
| FD-5050W-C | 16-18lm | 3.0-3.4V | ||
| FD-5050W-D | 18-21lm | 3.0-3.4V | ||
| FD-5050B | Blue | 460-470nm | 1000-3500mcd | 3.0-3.2V |
| FD-5050G | Green | 520-525nm | 2500-5500mcd | 3.0-3.2V |
| FD-5050R | Red | 620-630nm | 1200-3500mcd | 1.9-2.3V |
| FD-5050Y | Yellow | 588-595nm | 1200-3500mcd | 1.9-2.3V |
| FD-5050A | Amber | 600-610nm | 1000-3500mcd | 1.9-2.3V |
| FD-5050IR | Infrared | 850nm | 3.2-3.4V | |
| Item | Part No. | Wavelength/CCT | Intensity | Voltage | Power |
| SMD5050 white | FD-5050W-1 | 5500-6000k | 14-20LM | 3.0-3.5v | 0.18W |
| FD-5050W-2 | 6000-6500k | 14-20LM | 3.0-3.5v | 0.18W | |
| FD-5050W-3 | 6500-7000k | 14-20LM | 3.0-3.5v | 0.18W | |
| FD-5050W-4 | 7000-7500k | 14-20LM | 3.0-3.5v | 0.18W | |
| FD-5050W-5 | 7500-8000k | 14-20LM | 3.0-3.5v | 0.18W | |
| SMD5050 reddish white | FD-5050RW-1 | 2000-2400K | 14-20LM | 3.0-3.5v | 0.18W |
| FD-5050RW-2 | 2400-2700k | 14-20LM | 3.0-3.5v | 0.18W | |
| SMD5050 Yellowish white | FD-5050YW-1 | 2800-3200K | 14-20LM | 3.0-3.5v | 0.18W |
| FD-5050YW-2 | 3200-3500K | 14-20LM | 3.0-3.5v | 0.18W | |
| SMD5050 cool white | FD-5050CW-1 | 8000-9000K | 14-20LM | 3.0-3.5v | 0.18W |
| FD-5050CW-2 | 9000-10000K | 14-20LM | 3.0-3.5v | 0.18W | |
| FD-5050CW-3 | 10000-12000K | 14-20LM | 3.0-3.5v | 0.18W | |
| FD-5050CW-4 | 12000-15000K | 14-20LM | 3.0-3.5v | 0.18W | |
| FD-5050CW-5 | 20000-25000K | 14-20LM | 3.0-3.5v | 0.18W | |
| SMD5050 blue | FD-5050B | 460-470nm | 1000-3500mcd | 3.0-3.5v | 0.18W |
| SMD5050 Amber | FD-5050A | 600-610nm | 1000-3500mcd | 1.9-2.2V | 0.12W |
| SMD5050 Green | FD-5050G | 520-525nm | 2500-5500mcd | 3.0-3.5v | 0.18W |
| SMD5050 Yellow | FD-5050Y | 588-595nm | 1200-3500mcd | 1.9-2.2V | 0.12W |
| SMD5050 Red | FD-5050R | 620-625nm | 1200-3500mcd | 1.9-2.2V | 0.12W |
| SMD5050 RGB | FD-5050RGB | R:350-450MCD | |||
| B:250-300MCD | |||||
| G:900-1100MCD | |||||
| Item | Part No. | Wavelength/CCT | Intensity | Voltage | Power |
| SMD3528 white | FD-3528W-1 | 5500-6000k | 4-7LM | 3.0-3.5v | 0.06W |
| FD-3528W-2 | 6000-6500k | 4-7LM | 3.0-3.5v | 0.06W | |
| FD-3528W-3 | 6500-7000k | 4-7LM | 3.0-3.5v | 0.06W | |
| FD-3528W-4 | 7000-7500k | 4-7LM | 3.0-3.5v | 0.06W | |
| FD-3528W-5 | 7500-8000k | 4-7LM | 3.0-3.5v | 0.06W | |
| SMD3528 reddish white | FD-3528RW-1 | 2000-2400K | 4-7LM | 3.0-3.5v | 0.06W |
| FD-3528RW-2 | 2400-2700k | 4-7LM | 3.0-3.5v | 0.06W | |
| SMD3528 Yellowish white | FD-3528YW-1 | 2800-3200K | 4-7LM | 3.0-3.5v | 0.06W |
| FD-3528YW-2 | 3200-3500K | 4-7LM | 3.0-3.5v | 0.06W | |
| SMD3528 cool white | FD-3528CW-1 | 8000-9000K | 4-7LM | 3.0-3.5v | 0.06W |
| FD-3528CW-2 | 9000-10000K | 4-7LM | 3.0-3.5v | 0.06W | |
| FD-3528CW-3 | 10000-12000K | 4-7LM | 3.0-3.5v | 0.06W | |
| FD-3528CW-4 | 12000-15000K | 4-7LM | 3.0-3.5v | 0.06W | |
| FD-3528CW-5 | 20000-25000K | 4-7LM | 3.0-3.5v | 0.06W | |
| SMD3528 blue | FD-3528B | 460-470nm | 300-600mcd | 3.0-3.5v | 0.06W |
| SMD3528 Amber | FD-3528A | 600-610nm | 300-500mcd | 1.9-2.2V | 0.04W |
| SMD3528 Green | FD-3528G | 520-525nm | 400-2000mcd | 3.0-3.5v | 0.06W |
| SMD3528 Yellow | FD-3528Y | 588-595nm | 300-500mcd | 1.9-2.2V | 0.04W |
| SMD3528 Red | FD-3528R | 620-625nm | 200-500mcd | 1.9-2.2V | 0.04W |
| SMD3528 RGB | FD-3528RGB | R:350-450MCD | |||
| B:250-300MCD | |||||
| G:900-1100MCD |
IF: 20mA,
Beam Angle: 120°
High Brightness, large view angle, Low Power dissipation, high cost-effective.
Operation temperature: -40 - 95 degrees celsius.
Life span: 50000 hours.
Main advantages:
1. Have our own packaging technology,can control all details,with good quality and high brightness.
2. Low lighting attenuation,Conversion factor can reach 90%
3. Good glare control.
4. Special design good for heating output.
5. Long lifespan of up to 50,000 hours
6. We are professional manufacturuer with 12 years experience in leds . Quality Is 100% guaranteed.
7. Leds with TW original Epistar chips . Class A quality
8. With ROHS. With 2years warranty
9. Fast delivery .
Applications:
1.Indoor and out door commercial light
2.LED backlighting and SMD type indicator
3.LED moudle
4.Decoration light
5.Auto lamp
6. Led flexible , rigid strips
7. LED tubes.
8. Led bulbs
