5000w Portable Solar Generator Solar Power Home System kit

Loading Port:China main port

Payment Terms:TT OR LC

Min Order Qty:1 pc

Supply Capability:500 pc/month

Product Description:

1. Features :
Professional design to promote system reliability
*Using international well-know brand semiconductor device such as IR.TI.ST.ON.NXP and so on.
*Using industrial MCU total digital technology, without any adjustable resistance, strong anti-interference ability, no aging and drift..
*Super-high charging and DC to AC inverter efficiency, Significantly reduce temperature rise of products .

High MPPT Tracking efficiency
*MPPT Tracking efficiency up to 99.9%,System power generation efficiency up to 98% to improves system efficiency and reduces system costs.

High Transfer efficiency
*Charging efficiency up to 98.4%
*DC to AC inverter efficiency up to 90%

Minimal stand-by power consumption
*The current consumption ≤ 40mA(24V)

Intelligent battery management
*three phase time charge battery, which contains MPPT charge, constant voltage charge and float charge, which helps to extend the life of battery.
*Significantly extends the battery life up to 50% base on intelligent temperature compensation charge and discharge management
*External battery can be added to expand battery capacity
*Intelligent battery energy management to ensures the battery operates in shallow charge and discharge states, significantly extending battery life.

Flexible setting of three output modes

*City power priority mode
*Battery priority mode
*EPS Mode

Excellent load adaptation
*Support resistive load, inductive load, capacity load, half wave load, etc
*Strong overload capacity
*Peak current ratio up to 300%
*Pure sine wave output
*output voltage level can be selected
*Sudden discharge, output waveform distortion rate low than 5%

Perfect protect function
*Battery reverse connection protection
*The solar panel reverse connection protection.
*To prevent the battery discharge to the solar panel at night.
*Battery low voltage disconnect and reconnect protection.
*Output short circuit protection
*Output overload protection
*Transformer isolation, safe and stable

2. Technical Parameter

Item	Content	Mode	Unit
	Content	ESI_4KVA_GMI	-
PV Parameters	PV Max. Input Voltage	180-250	V
	PV Max. Input Current	50	A
	Max Charging Current	15	A
	Max Panel Power	4000	W
	MPPT tracking range	30≤Vmp≤70	V
Mains Input Parameters	Input voltage range	180~250	VAC
Mains Input Parameters	Input Frequency	50/60±3%	Hz
	Rated Input Voltage	5760	W
Battery parameters	Battery Type	Lead-acid battery or lithium battery①	-
	Battery Voltage	24	V
	Battery Capacity	40/80	Ah
	Max. charge current	20	A
	Boost charge	28.8(can be set)	V
	Float charge	27.6(can be set)②	V
	Low voltage disconnect	22(can be set)	V
	Low voltage reconnect	25(can be set)	V
	Temp. compensation	-4mV/℃/2V②	-
	Charging voltage change	8~30	V
Output parameters	Output voltage	220/230(customize)	V
	Output Frequency	50/60	Hz
	Output waveform	Pure sine wave	-
	Max.Output Power	4	KVA
	Output power factor	0.8	-
	Output current peak factor	3:1	-
	DC-AC Max.Efficiency	90%	-
	Overload capacity	105~120% 30s,120~150% 10s >150% 5s,Short circuit 1ms
System Parameters	Working mode	City electricity,Battery,EPS
	Display	LCD+LED	-
	Display content	PV instruction,battery voltage,Mains input voltage,Inverter output voltage,Overload display,Working status	-
	Protect Function	overload,low voltage,Short circuit,over-charging,overfall,over-temperature etc	-
	Static power	40	mA
	Inverted no-load power consumption	<6< p="">	W

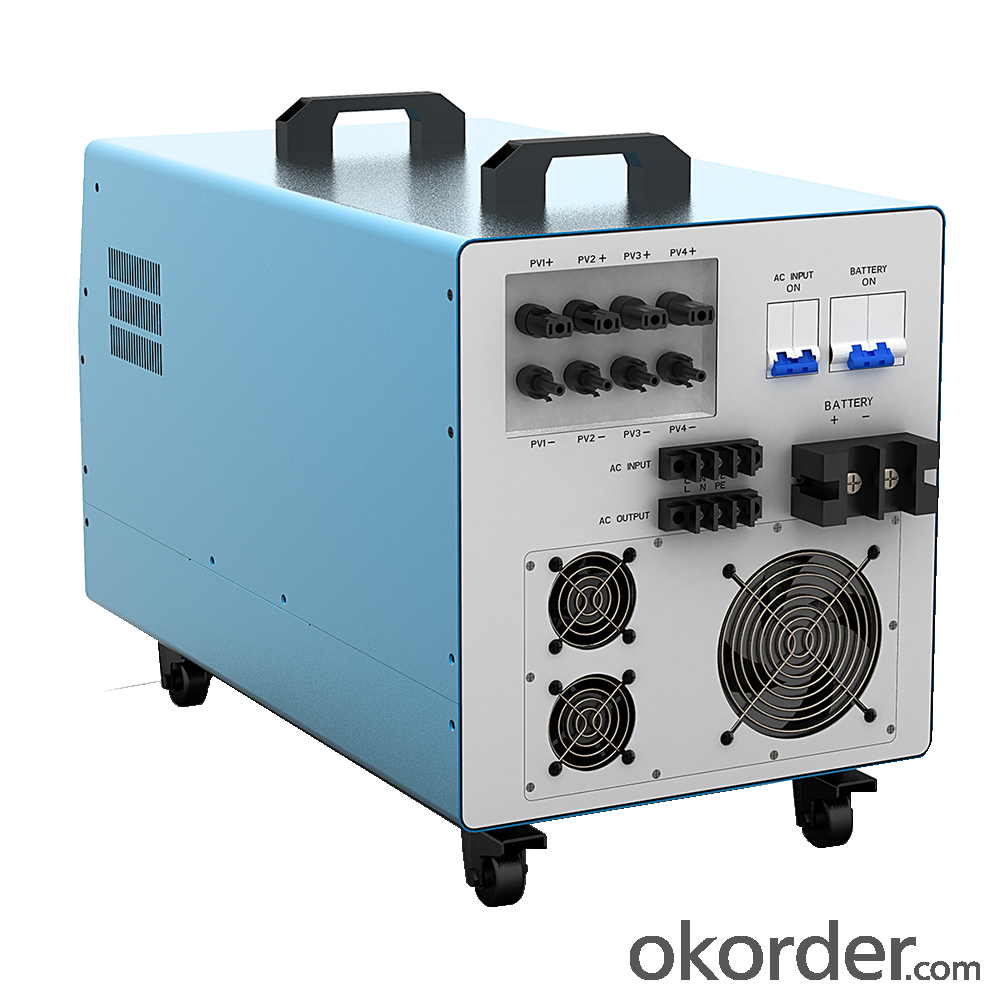

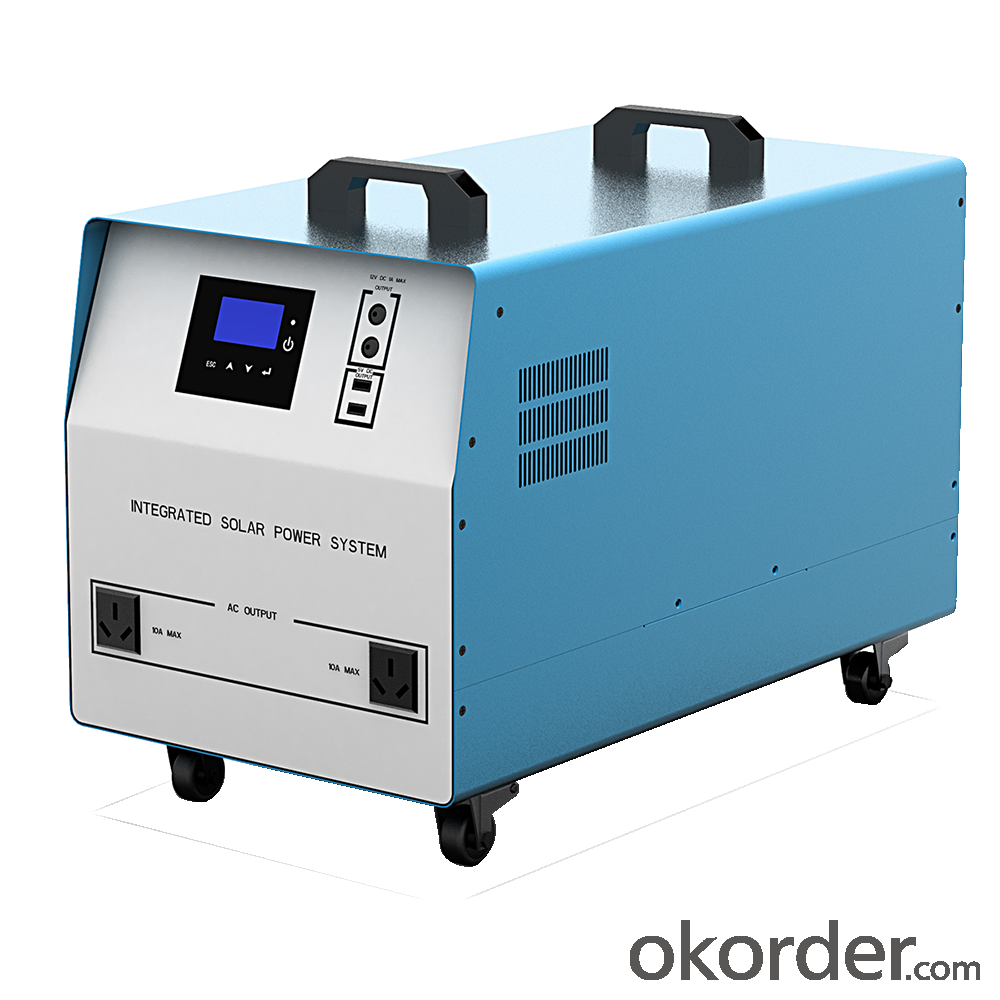

3. Image

4.FAQ

Q:DO YOU HAVE ANY CERTIFICATION FOR YOUR PRODUCTS？

A:We have ISO9001：2015，CE、RoHS certifications for all of our products.

Q:DO YOU HAVE MOQ FOR PLACE ORDER？

A:Low MOQ，1pe for sample checking is available
