Loading Port:China Main Port
Payment Terms:TT or L/C
Min Order Qty:100pcs pc
Supply Capability:10,000pcs per month pc/month
Packaging & Delivery
Packaging Detail: | Neutral color box |
Delivery Detail: | 7-10 days after getting payment money |

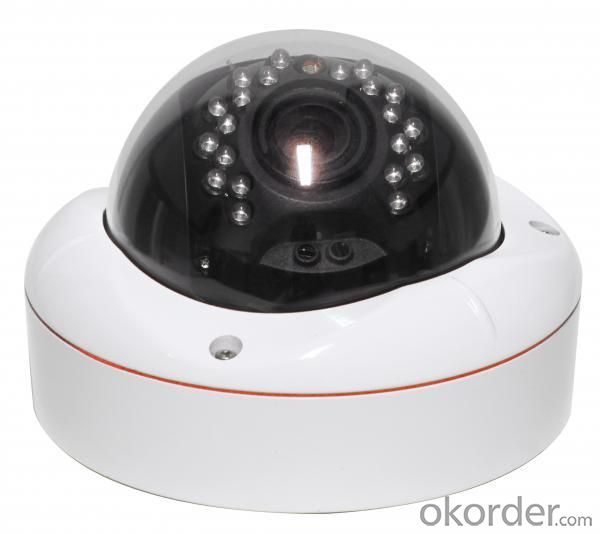

Description of 480TVL IR Array Waterproof Camera
Model | CMAX-642S-RA60 | CMAX-648S-RA60 | CMAX-654S-RA60 | CMAX-665S-RA60 | |
Image sensor | 1/3 SONY CCD | ||||
Pixel | PAL | 500(H)* 582(V) | 720(H)* 540(V) | 752(H)* 582(V) | 976(H) x 582(V) |
NTSC | 510(H)* 492(V) | 768(H)*492(V) | 768(H)* 596(V) | 976(H)x 494(V) | |
Resolution | 420TVL | 480TVL | 540TVL | 650TVL | |
OSD menu | NO | YES | |||
Video output | 1.0VP—P/75Ω | ||||
White balance | auto | ||||
Gain control | auto | ||||
Backlight compesation | auto | ||||
Electronic shutter | 1/50(1/60)~1/120,000s | ||||
Gamma correction | 0.45 | ||||
Sync system | internal | ||||
S/N radio | >=48dB | >=52dB | |||
IR led | Build in 2pcs powerful IR array leds | ||||
view distance | 60m | ||||
Minimun Illumination | 0LUX(IR ON) | ||||
Operation lens | 8mm F1.2 big lens; Options: 6mm, 12mm, 16mm (optional) | ||||
Protection level | IP65, Side open housing waterproof design | ||||
Supplied voltage | DC 12V,1000mA | ||||
Working temperature | -10~60 ℃, support heater and fan |
