Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:4100 watt
Supply Capability:45100 watt/month

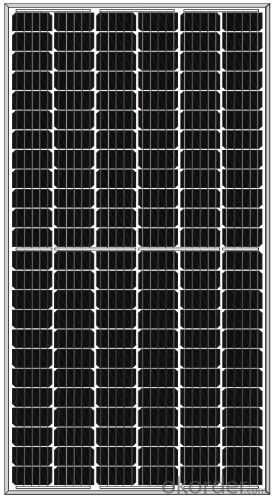

410W Mono Solar Panel Osda Panel Oda410-36-M
Description:
We are one of the leading solar panel manufacturers and distributor in China, which specializing in manufacture and sale of all kinds of solar panels. We offer various types of photovoltaic solar panels, such as monocrystalline solar panels, polycrystalline solar panels, small solar panels, thin film solar panels, etc. Meanwhile, we are able to provide solar panel systems for home or commercial use. We can both supply OEM and tire one solar panel.
Product Features:
5 Busbar Cell:
5 Busbar Solar cell adpots new technology to improve
the efficiency of modules,offers a better aesthetic apperance
making it perfect for rooftop installation and application
High Efficiency
High Module conversion efficiency,through innovative
manufactureing technology
Low-Light Performance
Advanced glass and solar cell surface texturing allow for excellent
performance in low-light environments
Serve Weather Resilience
Certified to withstand:wind load(2400Pa) and
snow load (5400Pa)
Durability against extreme enviromental conditions
High salt mist and ammonia resistance certified by TUV
0-+5W Positive Tolerance
Detailed information in Electrical Specifications
Specification for Reference:
| Model Type | ODA300-30-M | |
| Peak Power(Pmax) | 410.00 | |
| Maximum Power Voltage(Vmp) | 40.56 | |
| Maximum Power Current(Imp) | 10.11 | |
| Open Circuit Voltage(Voc) | 49.69 | |
| Short Circuit Current(Isc) | 10.65 | |
| Cells Efficiency(%) | 22.60 | |
| Module Efficiency(%) | 20.37 | |
| Maximum System Voltage(V) | 1000/1500 | |
| Maximum Series Fuse Rating(A) | 20 | |
| Power Tolerance | 0~+3% | |
| Pmax Temperature Coefficients(W/ºC) | -0.360% | |
| Voc Temperature Coefficients(V/ºC) | -0.289% | |
| Isc Temperature Coefficients(A/ºC) | +0.051% | |
| NOCT Nominal Operating Cell Temperature(ºC) | 45±2 | |
| Operating and Storage Temperature(ºC) | -40~+85 | |
| Standard Test Condition(STC) | 1.000W/m2;AM 1.5;25+/-2ºC | |
FAQ:
1.Q:What price for each watt?
A:It depends on the quantity,delivery date and payment terms.
2.Q:Can you provide the peripheral products of the solar panels,such as the battery,controller,and inverter? If so,can you tell me how do they match each other?
A:Yes,we can, we have two companies for solar region,one is CNBM International,the other is CNBM engineering Co. We can provide you not only the solar module but also the off gird solar system, we can also provide you service with on gird plant.
