Loading Port:Shenzhen
Payment Terms:L/C,T/T
Min Order Qty:4000 Pcs pc
Supply Capability:100000 Pcs Per Month pc/month
Fore more than 6 years, Genta as a leading LED manufacturer in Shenzhen of China, offer you the highest quality,the best service and the lowest price LED Product. The following is the specification of our products.

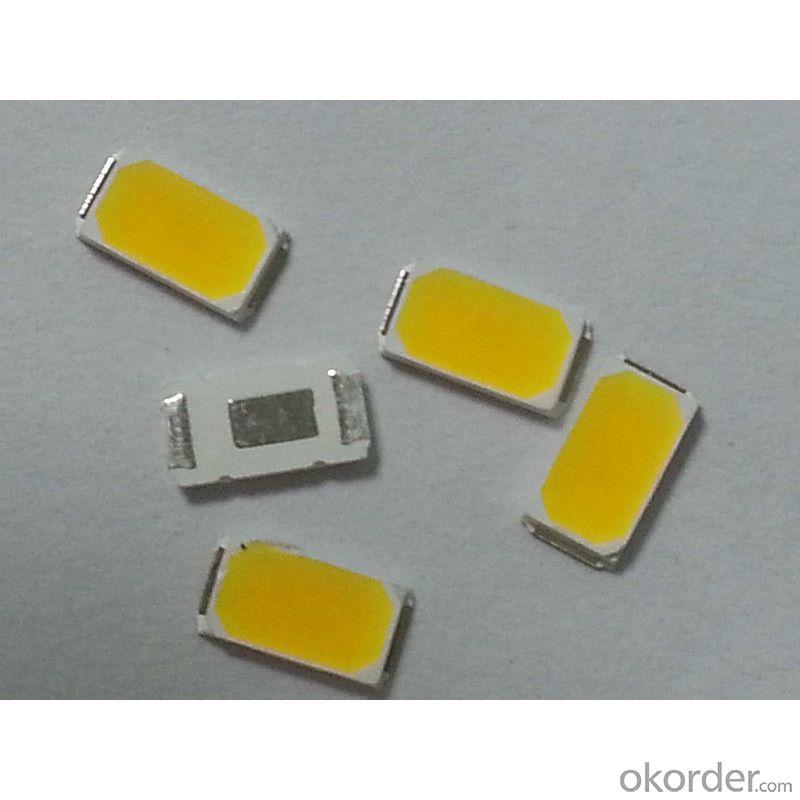

Product Name:4000K-45000K Natural White 0.5W 5730 SMD LED Light 70-75Ra 95-120lm/W
Description:
1>Dimention(Unit:MM)
Dimention (mm) | Beam Color | CCT (Kevin) | Luminous (Lm) | CRI(Ra) | Luminous (Lm/W)
| Bin Zone | Forward Current (mA) | Input Voltage (V) |
5.7*3.0*0.9
| Cool White | 6000-6500 | 48-53 | 70-75 | 95-120 | L7/M3 | 150 | 2.8-3.6 |
Natual White | 4000-4500 | 48-53 | 70-75 | 95-120 | S5/U7 | 150 | 2.8-3.6 | |
Warm White | 2800-3200 | 48-53 | 70-75 | 95-120 | F3/E5 | 150 | 2.8-3.6 | |
|
|
|
|
|
|
|
| |
Cool White | 6000-6500 | 50-60 | 70-75 | 100-135 | L7/M3 | 150 | 2.8-3.6 | |
Natural White | 4000-4500 | 50-60 | 70-75 | 100-135 | S5/U7 | 150 | 2.8-3.6 | |
Warm White | 2800-3200 | 50-60 | 70-75 | 100-135 | F3/E5 | 150 | 2.8-3.6 |
2>. Selection Guide
Model No. | Dice | Lens Type | CRI(Ra) | Luminous Intensity(Mcd) | Luminous Flux(Lm) @150mA | Viewing Angle | |||
Min | Max | Min | Max | Min | Max | ||||
GT-SMD5730-0.5 | White | Yellow Diffused | 70 | 75 | 16320 | 17490 | 50 | 60 | 120° |
3>.Electro-Optical Parameter at Ta=25°C
Parameter | Symbol | Min. | Typ. | Max. | Units | Test Conditions |
Forward Voltage | VF | 2.8 | 3.0 | 3.6- | V | IF=150mA |
Reverse Current | IR | -- | -- | 10 | μA | VR = 5V |
Color Coordinates | X | -- | 0.371 | -- | -- | IF=150mA |
Y | -- | 0.370 | -- | -- | IF=150mA | |
Color Temperature | TC | 4000 | 4200 | 4500 | K | IF=150mA |
Color Rendering Index | RA | -- | 72 | -- | CRI | IF=150mA |
4>Absolute Maximum Ratings at Ta=25°C
Parameter | Symbol | Rating | Units |
Power Dissipation | Pd | 500 | mW |
DC Forward Current | IF | 150 | mA |
Peak Forward Current [1] | IFP | 200 | mA |
Reverse Voltage | VR | 5 | V |
Electrostatic Discharge (HBM) | ESD | 1000 | V |
Operating Temperature | Topr | -40 ~ +85 °C | °C |
Storage Temperature | Tstg | -40 ~ +100 °C | °C |
Fetures:
♦ Using Epstar LED Chips Package, High Quality and Stable Performance
♦ Excellent Heat Dissipation Performance
♦ Super brighteness; High light efficiency, Stable function
♦ Soldering method: Re-flow soldering
♦ Meet RoHS Compliant
♦ Suitable for all SMT assembly and solder process
Application:
♥Optical Indicatoer
♥Indoor Lighting
♥Interior automotive lighting
♥Backlight for LCD,Switch and Symbo, Display
♥Light pipe application
♥Advertisement
Lead time:
5-7 working days for samples and trial order
7-10 working days for batch order
Payment terms:
TT,Paypal,L/C,West Union
For samples and trial order: 100% payment before produce
For mass order: 30% deposit before produce, 70% balance before delivery
Our advantages:
1.Using First-class and full automatice import equipment production
2.Your inquiry related to our products or prices will be replied in 24hours.
3.Well-trained and experienced staffs to answer all your enquires in fluent English
4.OEM&ODM, any your customized lightings we can help you to design and put into product.
5.Stock Sufficient, Fast lead time
Welcome you to contact us to negotiate, and we will try our best to do for you:
