Loading Port:Tianjin
Payment Terms:TT OR LC
Min Order Qty:1000 watt
Supply Capability:10000 watt/month
Model NO. | SPP-JT220W 230W 240W 250W | Material | Monocrystalline Silicon |
Peak Power Pm | 220W 230W 240W 250W | Max. Power Voltage Vmp | 18V(12V),27V,30V,36V(24V) |
Max. Power Current Imp(a) | 11A,6.38A,6.66A,6.94A | Dimensions(L*W*T)/ Weight | 1650*992*35mm/19.0 Kgs |
Front Cover(Material/Thickness) | Low-Iron Temperd Glass/3.2mm | Frame(Material/Collor) | Anodized Aluminum Alloy/Silver |
Junction Box Protection Degree | IP65 | Warranty:Output Power | 10 Years 100%, 20 Years 90% |
Product Certification / Standard | TUV,CE,RoHS,FCC,PSE/(IEC61215&IEC61730) | ISO Certification
| ISO 9001:2008 |
Export Markets | Global |
Trademark:CNBM
Packing:Carton and Pallets
Standard:CE, ROHS, TUV, IEC61215, IEC61730
Origin:China
HS Code:8541409000
Production Capacity:10000PCS/Month
Usage:
Take the solar panel under sunlight, the solar panel convert the sunlight into DC electricity
The electricity can be used directly or stored in battery for mobile phone charging, LED lighting, TV sets, fans, refrigerator and can changed to be AC power by inverter
Advantage:
The solar panel is green energy supply, markets supported by all country's governments
Warranty and long Life-time(for example):
100W after 10 years is still 100W
100W after 20 years is 90% 90W
100W after 30 years is 80% 80W
Function:
DC electricity providing
AC electricity providing by connecting with inverter
Battery power charger
LED and loading power supply
Accessories and material:
solar cells, tempered glass, EVA,TPT, aluminium alloy frame, connector box, shunt diode, 5m double wire
carton package, Logo(if necessary), bar code(if necessary), solar panel specification back label
Agent Support: Company Overseas Department
After-sale Service: Company After-sale Service Center

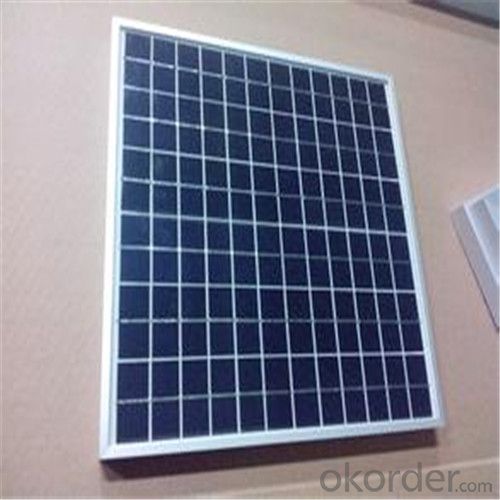

220W 230W 240W 250W polycrystalline solar PV panel performance and specification:
Parameters | SPP-JT220W | SPP-JT230W | SPP-JT240W | SPP-JT250W |
Peak power Pm(W) | 220±3% | 230±3% | 240±3% | 250±3% |
Open circuit voltage Voc(V) | 44.6 | 44.6 | 44.6 | 45.3 |
Max. power voltage Vmp(V) | 36.0 | 36.0 | 36.0 | 36.5 |
Max. power current Imp(A) | 6.11 | 6.38 | 6.66 | 6.94 |
Short circuit current Isc(A) | 6.60 | 6.89 | 7.19 | 7.49 |
Solar cells Efficiency | 15.1% | 15.9% | 16.5% | 17.1% |
Model efficiency | 13.5% | 14.0% | 14.67% | 15.27% |
fill factor | ≥73% | |||
Dimensions(L*W*T)/ Weight(kgs) | 1650*992*35mm/19.0 kgs | |||
solar cell / No. of cells and connections | Poly crystalline silicon 156*130*0.19mm/72pcs in series | |||
Front cover(material/thickness) | Low-iron temperd glass/3.2mm | |||
Encapsulant(material) | Ethylene vinyl acetate(EVA) | |||
Frame(material/collor) | Anodized aluminum alloy/silver | |||
Junction box protection degree | ≥IP65 | |||
Cable /Cable connector Model | PV1-F 1×4.0mm2×900mm/ MC4 | |||
STC | Irradiance:1000W/m2,Cell temperature:25ºC,AM:1.5 | |||
Max. static load ,front(e. g .,snow/wind) | 2400Pa | |||
Max. static load ,back(e. g .,wind) | 2400Pa | |||
Max. hailstone impact (diameter/velocity) | 25mm/ 23m/s | |||
Max. over-current (A) | 10A | |||
Max. system voltage (V) | 1000V DC | |||
Application Class | Class A | |||
NOCT | 48±2ºC | |||
Operating temperature limits | -40ºC- +85ºC | |||
Coefficient current TK | 0.1%/ºC | |||
Coefficient voltage TK | -0.37%/ºC | |||
Coefficient power TK | -0.45%/ºC | |||
Life | ≥25 years | |||
Warranty | Output power: 10 years 100%,20 years 90% | |||
Product Certification / Standard | CQC,TUV,CE,ROHS,FCC,PSE/(IEC61215&IEC61730) | |||
Other Certification | ISO 9001:2008 | |||
