Suitable range

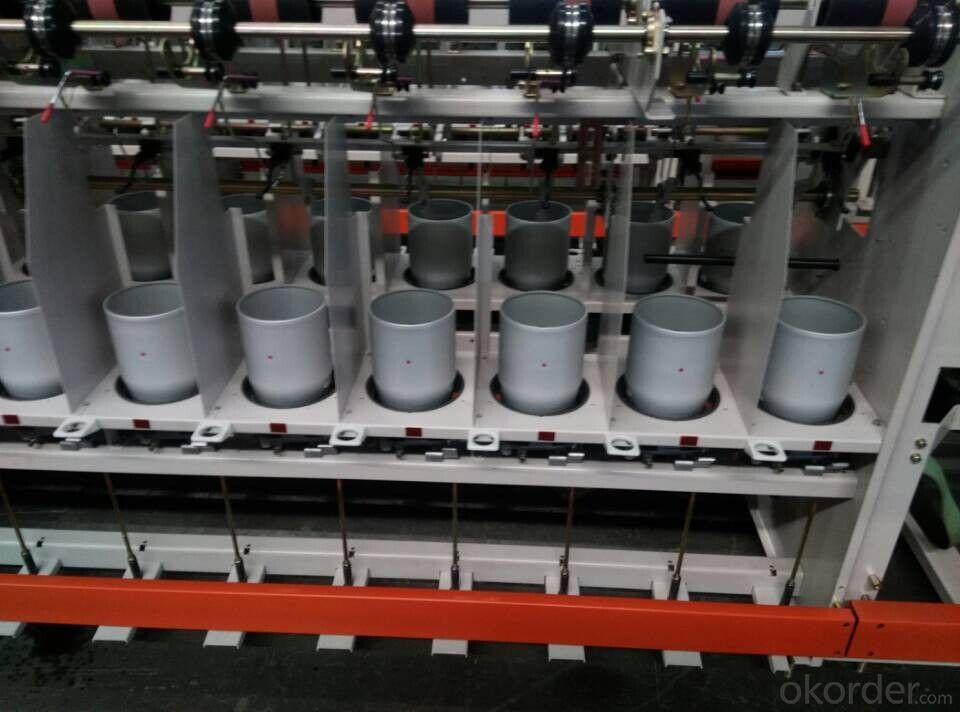

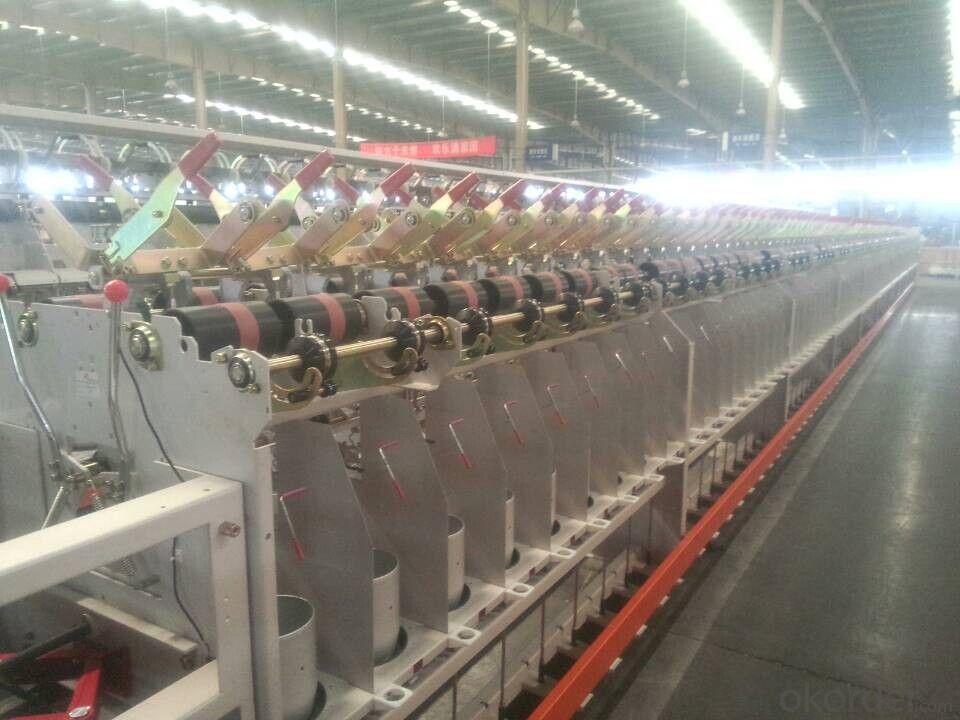

Short Fiber Two-for-one Twister, one turning achieves two twists. Its efficiency is higher than traditional machine in times. Take-up volume increasing, no piecing in ten thousands meter, twisting quality highly improved.
Features
→ Special designed Reversing Device, which fits for twisting both yarns and spandex fibres
→ The stable quality of spindle run long-time even under high-speed operation
→ Double-geared drive device, reasonable force load transmitting, wider twist range
→ Adjustment system through Belt tension, ease operation
→ Pedal brake system, operation easy, extend the life of belt and spindle
→ Winding completed or yarn broken, spindle support lift automatic to avoid yarn grind
→ Oil-bath gearbox and special yarn guide curve, made excellent winding form
→ The take-up tension on the roller can adjust at ease. It is also suit for winding loose packages for dyeing
Form of operation | Double sides, single layer, pneumatic yarn-guide |
Sections | Basic mode 9 sections (max. 10) |
Spindle speed | Standard configure （5000～13500rpm），special requirements could deploy based on technological. |
Twist direction | S or Z |
Twist range | Standard configure（156～2027T/M），special requirements could deploy based on technological. |
Traverse | 152mm |
Angle of taper | 14°47'-21°07' |
Feeding bobbin | Φ37.2×43×170mm |
Loading amount | Max. 2.5kg |
Overall size | 21404×820×1680mm（9sections without upper blower） |
Motor power | 22kw（10 sections for 30kw） |
Start Mode | Star-delta slow start |
Tensioner | capsule |
Spindle driving | belt circulation driving |
Cradle elevating | pneumatic |
