Loading Port:Tianjin
Payment Terms:TT OR LC
Min Order Qty:25 m.t.
Supply Capability:50000 m.t./month
30Cr JIS SCr430 DIN1.7030 ASTM 5130
Product Description:
1. Grade: 30Cr JIS SCr430 DIN1.7030 ASTM51300
2. Specification: Dia: 80~800mm Length:2000-13000mm or as required
3. Process: EAF+LF+VD+ Forged+ Heat Treatment (Annealed,A Normalized, Q+T)
4. Machine Capability
Tensile strength (N/mm2Mpa): >=885
Elongation %: >=11
Yield strength: >=685
Hardness: HBS less than 187
Reduction of area:>=45%
5. Inspection: 100% Ultrasonic according to the test standards:SEP1921-84,GR.3 CLASS C/C or by SGS ,AHK or Alex Stewart
6. Packing situation: standard seaworthy packing or as customer required
7. Delivery time: 45 days after order confirmed
8. Payment: T/T or L/C at sight.
Chemical Compositon:
C | Si | Mn | Cr | Ni | Cu |
Equal or less than | |||||
0.27-0.34 | 0.17-0.37 | 0.50-0.80 | 0.80-1.10 | 0.30 | 0.30 |
Application:
(1) Generally used for producing the important parts with high strength and good plastic.
(2) After nitrogen treatment, used for producing the important parts with special performance
requirements, such as shafts, gears, fasteners, bolt of large dia steamer etc.
Advantage:
1, Fast response in reply
2, Good communication sales with reasonable price.
3,Good quality materials.
4,Fast lead time.
5,Rich experience in export business.
6,Well after sales service.

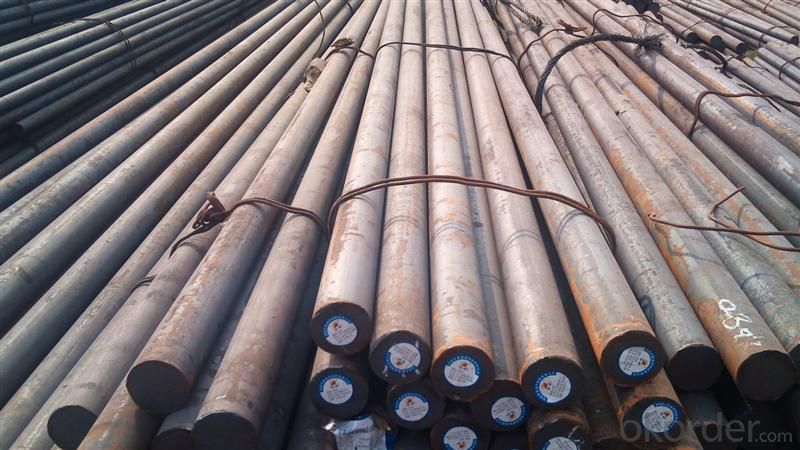

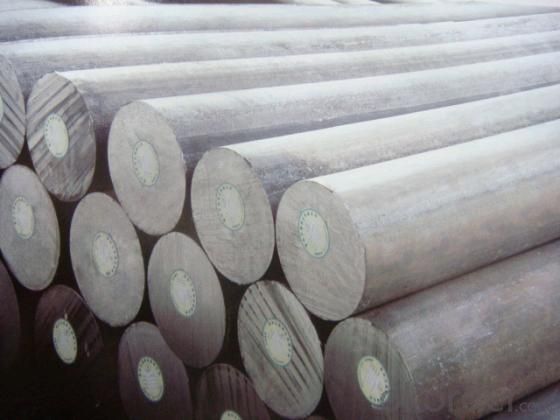

Product Show:
