Loading Port:Qingdao
Payment Terms:TT OR LC
Min Order Qty:100 set
Supply Capability:300000 set/month
| Place of Origin: | China (Mainland) | Brand Name: | cnbm | Model Number: | solar panel |
| Specification: | Normal | Application: | Industrial | Output Voltage (V): | 21 |
| Load Power (W): | 300 W | Work Time (h): | 24h/d | Certificate: | TUV,UL,CE,RoHS,ISO |
| size: | 566*416*25, 625*540*25, 763*540*35mm | Warranty: | 5 years product warranty and 20 years 80% of power, 25 years lifetime | OEM: | Acceptable |
| Glue: | EVA | Temperature range: | -40°C~+85°C | Junction box: | PPO black |
| Film: | Anti-aging EVA | Solar cell: | Grade A | Glass: | Tempered Glass |
| Packaging Detail: | Seaworthy Packing |
| Delivery Detail: | 20 days |

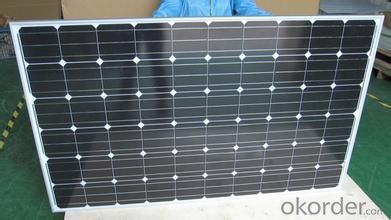

300w Useful Mono Solar Penal For Factory
Power:1W-300W
Warranty:20 years 80%, 25 years lifetime
Certificate:TUV,UL,CE

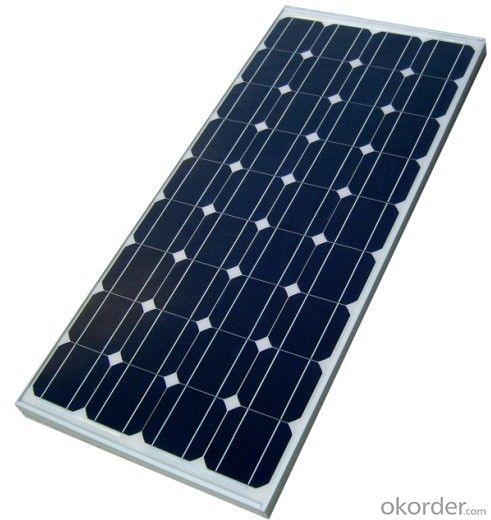

300w Useful Mono Solar Penal For Factory
Monocrystalline Silicon Solar Panel /Solar Module Technical Parameter
| ITEM | Monocrystalline Silicon Solar Panel /Solar Module | |||||||
| Maximum power (Wp) | 22w | 24w | 26w | 34w | 37w | 40w | 43w | 50w |
| Maximum power voltage (V) | 16.8 | 16.8 | 16.8 | 17.2 | 17.2 | 17.2 | 17.6 | 21.12 |
| Maximum power current (A) | 1.31 | 1.43 | 1.55 | 1.98 | 2.15 | 2.33 | 2.44 | 2.37 |
| Open circuit voltage (V) | 21 | 21 | 21 | 21.5 | 21.5 | 21.5 | 21.5 | 26.4 |
| Short circuit current (A) | 1.61 | 1.61 | 1.61 | 2.4 | 2.5 | 2.5 | 2.5 | 2.5 |
| Size of solar cells(mm) | 125*41.67 | 125x62.5 | ||||||
| Number of cells (Pcs) | 36 PCS( 3x12 ) | 36PCS (4x9) | 44(4X11) | |||||
| Size of module (mm) | 566*416*25 | 625*540*25 | 763*540*35 | |||||
| Brand Name of Solar Cells | CEEG or JA SOLAR | |||||||
| Maximum system voltage (V) | 1000 | |||||||
| Temperature coefficients of Isc (%) | + 0.1/ °C | |||||||
| Temperature coefficients of Voc (%) | -0.38/ °C | |||||||
| Temperature coefficients of Pm (%) | -0.47/ °C | |||||||
| Temperature coefficients of Im (%) | +0.1/ °C | |||||||
| Temperature coefficients of Vm (%) | -0.38/ °C | |||||||
| Temperature Range | -40°C~+80°C | |||||||
| Surface Maximum Load Capacity | 60m/s(200kg/sq.m) | |||||||
Allowable Hail Load | steel ball fall down from 1m height | |||||||
| Weight per piece (kg) | 3.1 | 4.5 | 6 | |||||
| Junction Box Type | Junction box with TUV certificate | |||||||
| Length of Cables (mm) | as customer's demand | |||||||
| Cell Efficiency (%) | 12.40% | 13.50% | 14.80% | 12.80% | 13.90% | 15% | 16% | 15.50% |
| Module Efficiency (%) | 11% | 12% | 13% | 11% | 12% | 13% | 14% | 13% |
| Output tolerance (%) | ±3% | |||||||
| Frame (Material, Corners, etc.) | Anodized Aluminum Alloy Frame | |||||||
| Standard Test Conditions | AM 1.5,1000W/m2, 25°C | |||||||
| Warranty | 5 years product warranty and 20 years 80% of power,25 years lifetime | |||||||
service
Advantages
Advantage
1) Professional manufacturer
2)Easy Storage
3)Factory price & Best quality
4)Accept customized order
5)Fast delivery
6)OEM Service
7)Emergency stocks
8)We promise all your inquiries and messages will get our reply within 12 hours.
