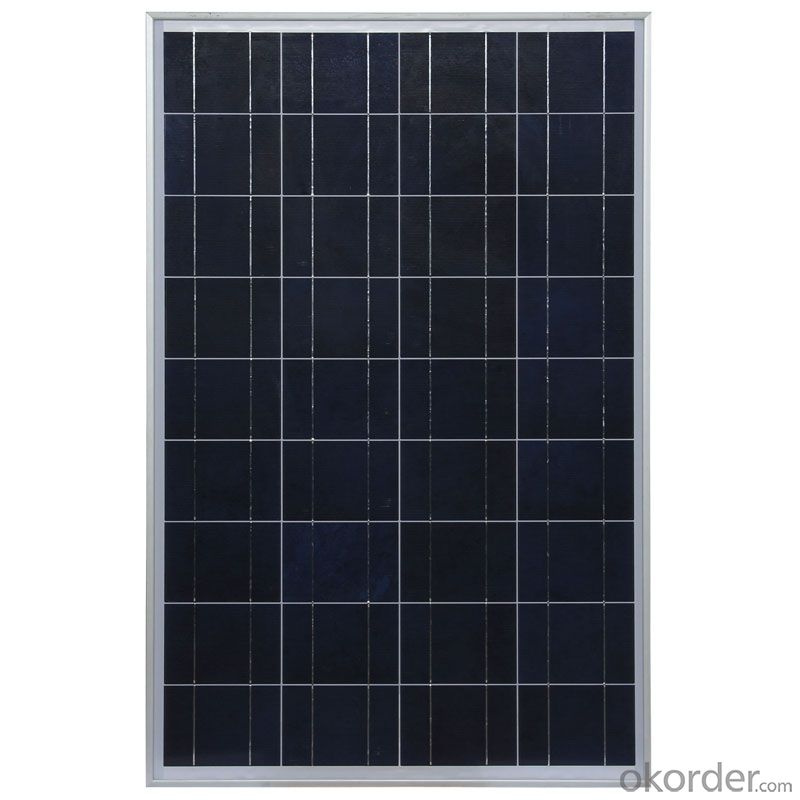

Temu Solar Panels 300w Poly Solar PV Modules for Large Power Plant

Loading Port:Shanghai

Payment Terms:TT OR LC

Min Order Qty:100 watt

Supply Capability:10000 watt/month

Product Description:

 Specifications:

Model ZCP6-72P-300W
Electrical Characteristics
Maximum Power [Pmax]300W
Power Tolerance+/-3%
Maximum Power Voltage [Vmp]36.1V
Maximum Power Current [Imp]8.32A
Short-Circuit Current [Isc]8.73A
Open-Circuit Voltage [Voc]44.8V
Module Efficiency15.46%
Max. System Voltage1000VDC
Cell Size and SeriesPoly 156*156  72pcs (6*12)
Temperature Coefficient of Pmax- 0.47% / º C
Temperature Coefficient of Voc- 0.33% / º C
Temperature Coefficient of Isc0.05% / º C
Mechanical Characteristics
Dimension (mm)1956*992*45
FrameAnodized Aluminium Alloy
Glass3.2mm,High Transmission,Tempered Glass
Junction box & CableIP65 Rated weatherproof connectors
Cable: TUV 1x4.0mm2 / UL12AWG,Length:900mm
Weight22.0Kgs


Quality Ensurance:
1. Excellent A Grade solar cell from Motech or Hanwha solar.
2. Excellent backsheet from SFC, 3M;
3. EVA from Bridgestone / First;
4. Junction box with UL and TUV listed - GZX, IP65;
5. High transmission low iron tempered glass from Xinyi Glass - China Top 1;
6. Solar panels with TUV, CE, ISO9001 certified.

Strong, lightweight aluminum frame design with reinforced sealing and load hold to prevent freezing and warping, and stand against high wind.

Under Standard Test Conditions(STC): Irradiance of 1000W/m2, Am1.5 and 25º C cell temperature
Operating Temperature: -40 ~ +85° C
Storage Temperature: -40 ~ +85°

OEM/ODM manufacturing business are so welcomed!


Warranty for solar panel:
- 25 year limited warranty of 80% power output;
- 10 year limited warranty of 90% power output;
- 5 year limited warranty of materials and workmanship.
300W Poly Solar PV Modules for Large Power Plant

FAQ:

We have organized several common questions for our clients,may help you sincerely:

1.what price for each watt?

it depends on the quantity, delivery date and payment terms,

2.what is your size for each module? can you tell me the parameter of your module?

we have different series of panels in different output, both c-si and a-si. please take the specification sheet for your reference.

3.Can you provide the peripheral products of the solar panels, such as the battery, controller, and inverter? If so, can you tell me how do they match each other?

Yes, we can, we have two companies for solar region, one is CNBM International, the other is CNBM engineering Co.

We can provide you not only the solar module but also Solar Cells, the off grid solar system, we can also provide you service with on grid plant.

4What is your warranty system?

Our product performance guarantees for 25 years

• 12 years guarantee for workmanship

• Timeliness of delivery

• Quality Products certified (TÜV, UL, CE, ISO)

5.How do you pack your products?

We have rich experience on how to pack the panels to make sure the safety on shipment when it arrives at the destination.

6. Can you do OEM for us?

Yes, we can.

7.How long can we receive the product after purchase?

In the purchase of product within three working days, We will arrange the factory delivery as soon as possible. The pecific time of receiving is related to the state and position of customers. Commonly 7 to 10 working days can be served.
