Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:728 pc
Supply Capability:5000000 pc/month
Company Profile
CNBM International Corporation (CNBM International) is the most important trading platform of CNBM Group Corporation, a state-owned company under the direct supervision of State-owned Assets Supervision and Administration Commission of the State Council.
Since 2004, the trading volume of CNBM International has been doubled in 5 successive years owing to the support of superior corporations and effort of all staff. Meanwhile, we have established strategic partnerships with hundreds of domestic manufacturers and sound business relations with clients from over 120 countries. Currently, we have wholly-owned overseas subsidiaries and branches in 5 countries with a view to realize localization, which also represents an essential progress in our globalization target.
In line with the business, CNBM International launched E-business platform Okorder.com.
High Quality Solar Poly Panel 255W datasheet
| Description of Specification | Units | Model | |
| 255P | |||
| General Data | |||
| Nominal Power | W | 255 | |
| Dimensions(L*W*H) | mm | 1640*992*45 | |
| Weight | kg | 19 | |
| Solar Cell | |||
| Cell Type | Polycrystalline | ||
| Number of Cells | 60 | ||
| Maximum Power | W | 255 | |
| Watt Tolerance | % | +/-3 | |
| Voltage & Ampereage | |||
| Maximum System Voltage | Volts | 1000 | |
| Maximum Operating Voltage(Vmp) | Volts | 31.0 | |
| Maximum Operating Current(Imp) | Amps | 8.23 | |
| Open Circuit Voltage(Voc) | Volts | 37.6 | |
| Short Circuit Current(Isc) | Amps | 8.97 | |
| Operational Temperatures | |||
| Temp Coefficent of Isc(TK Isc) | % per deg.C | +0.045 | |
| Temp Coefficent of Voc(TK Voc) | % per deg.C | -0.33 | |
| Temp Coefficent of Pmax(TK Pmax) | % per deg.C | -0.45 | |
| Normal Op.Cell Temp (NOCT) | deg.C | 45±2 | |
| Application | |||
| Storage & Operating Temperature | Deg C | -40 to +80 | |
| Standard Test Conditions | 1000W/M²,1.5AM,25 | ||
| Materials & Accessories Data (All Certified by CE and TUV) | |||
| Cable | Connerctors | IP65 | |
| Length | M | 0.9 | |
| Wire Diameter | mm2 | 4 | |
| Frame | Aluminum Anodzed | ||
| Glass | Thickness | mm | 3.2 |
| Low lron,High Transmisson,Toughness | YES | ||
| EVA resin | mm | 0.5 | |
| Backsheet(TPT) | mm | 0.3 | |
| Warranty (Output) | 10 years | % | 90 |
| 20 - 25 years | % | 80 | |
| Whole Panel | Years | 5 | |
High Quality Solar Poly Panel 255W Drawing

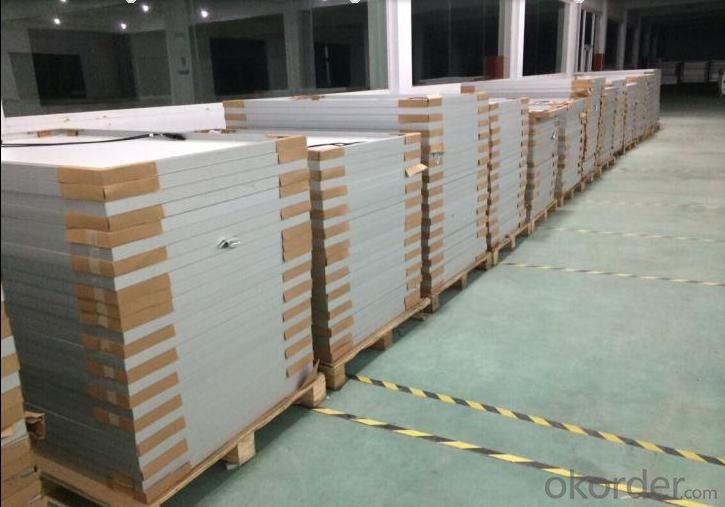

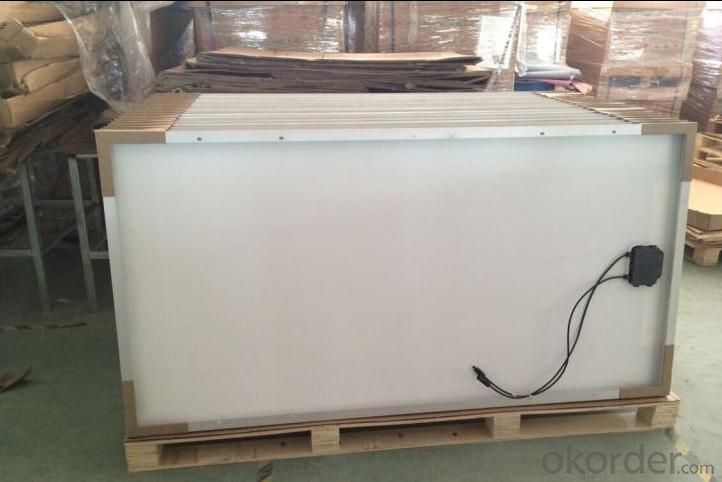

High Quality Solar Poly Panel 255W Stock Information
