PS-M672 Series solar panel is connected in series by 70 pieces of 156mm×156mm Mono Crystalline silicon cells. Solar panel performance is produced according to IEC61215, IEC61730 international standard.
Characteristics
1)Manufactured according to international quality and Environment Management
System (ISO9001, ISO14001)
2)High efficiency crystalline silicon solar cells
3)High transmission Iow iron tempered glass, strong mechanical resistance
4)Anti-ageing EVA and excellent anti-climate back sheet
5)Anodized aluminum frame improves load resistance capabilities for heavy wind loads.
6)Standard waterproof junction box
7)High endurance to different weather
8)Good and friendly package with less transportation and storage space.

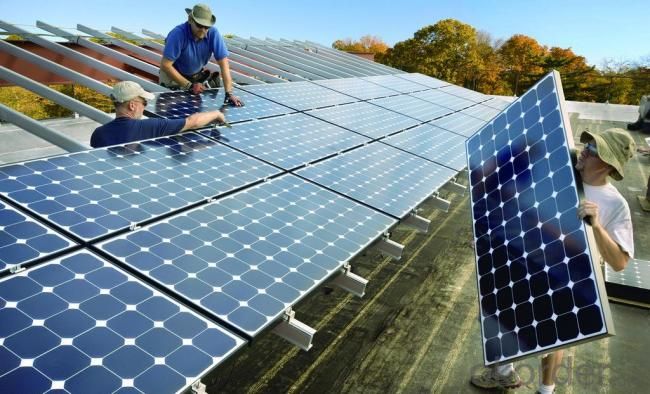

Pictures
Specifications
Module | 300W mono solar panel Type (72 Series) | |
Encapsulation | Glass/EVA/Cells/EVA/TPT | |
Parameters | RSM72-156M/300W | |
Max power | Pm(W) | 300 |
Tolerance | +/-3% | |
Open circuit voltage | Voc(V) | 45.22 |
Short circuit current | Isc(A) | 8.60 |
Max. power voltage | Vmp(V) | 35.27 |
Max. power current | Imp(A) | 8.50 |
Dimensions | (L*W*H) | 1950x990x50mm |
Net Weight | (kg) | 27.6 |
Max. system voltage | (V) | 1000VDC |
Operate Temp. Scope | -40/+85'C | |
Resistance | 227g steel ball fall down from 1m height and 120m/s wind | |
Warranty | Pm is no less 90% in 10 years and no less 80% in 25 years | |
STC | (Standard Test Condition: 1000W/m2, AM1.5, and 25'C) |
FAQ:
1. What is the brand of this 300W mono photovoltaic Solar panel?
RISUN, we are the manufacturer of this panel, OEM service is available, as well as wholesale trades.
2. About the glass we use for the front of the panel:
---3.2mm tempered glass , light transmittance up to 95%.
3. Does it meet Europe Standards for Solar Energy ?
This is TUV approval products, all producing procedure strictly accords with TUV&UL.
4. What is the Efficiency level ?
--- Between 16-18.9% for solar cells.
5. What's the nominal Voltage?
18V. So it can charge 12V battery. If you need 36V to charge 24V battery, just loose the cable from the solar panel and connect them in series. If you're not sure what to proceed, just contact us.
6. How to make the payment?
20% advanced in deposit by T/T or L/C, the rest payed after receiving B/L copy.
7. How long is the shipping time?
5-15 days after receiving deposit by the first available vessel to your country.
