Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:10000 watt
Supply Capability:1000000 watt/month
1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. High transmittance low iron tempered glass with enhanced stiffness and impact resistance
3. Unique frame design with high mechanical strength for easy Installation.
4. Advanced encapsulation material with multiplayer sheet lamination to provide efficient
protection from the severest environmental conditions, PET sheet imported from Toyo Japan with advanced encapsulating material
5. Outstanding electrical performance under high temperature and low irradiance conditons
6. Excellent performance in harsh weather,Outstanding electrical performance under high temperature and low irradiance
7. Strictly quality control ensure the stability and reliability, totally 30 QC procedures
Mechanical Characteristics | ||||||||||

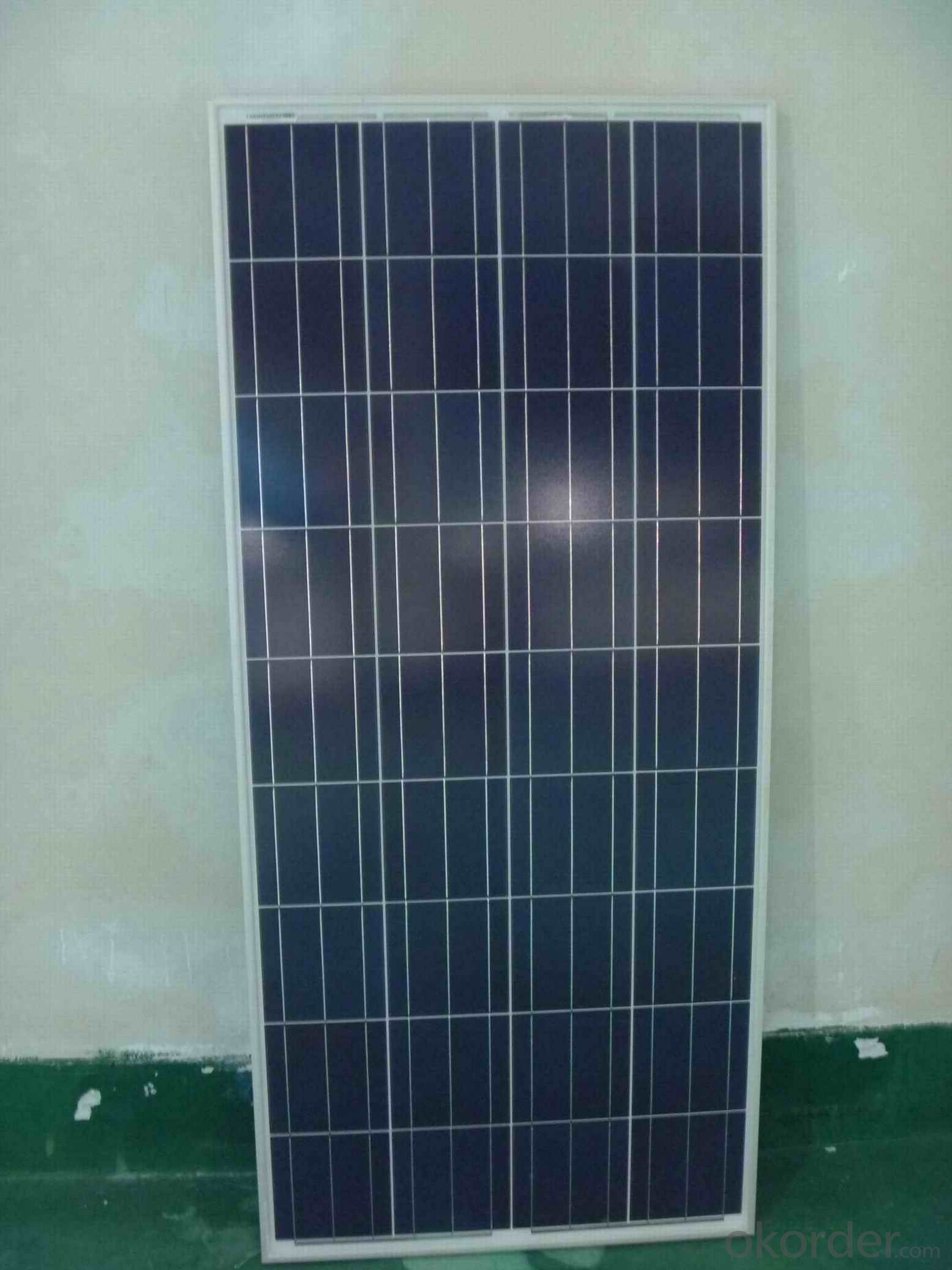

| Cell Type | Poly-crystalline 156x156mm | |||||||||
| No. of Cells | 60 (6x10) | |||||||||
| Dimensions | 1640x992x40mm | |||||||||
| Weight | 18.0kgs | |||||||||
| Front Glass | 3.2mm, high transmission, low iron, tempered glass | |||||||||
| Frame | Anodized Aluminium Alloy | |||||||||
| Junction Box | IP67 Rated | |||||||||
| Output Cables | TUV 1x4.0mm2, Length: 900mm | |||||||||
| Specifications | ||||||||||
| Module Type | FY-60-240P | FY-60-245P | FY-60-250P | FY-60-255P | FY-60-260P | |||||
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Max. Power (Pmax) | 240Wp | 176Wp | 245Wp | 179Wp | 250Wp | 183Wp | 255Wp | 187Wp | 260Wp | 191Wp |
| Max. Power Voltage (Vmp) | 30.0V | 27.3V | 30.2V | 27.5V | 30.4V | 27.7V | 30.6V | 27.9V | 30.7V | 28.0V |
| Max. Power Current (Imp) | 8.01A | 6.45A | 8.12A | 6.51A | 8.23A | 6.61A | 8.34A | 6.70A | 8.47A | 6.82A |
| Open-circuit Voltage (Voc) | 37.2V | 34.1V | 37.4V | 34.3V | 37.6V | 34.5V | 37.7V | 34.6V | 37.8V | 34.7V |
| Short-circuit Current (Isc) | 8.56A | 6.89A | 8.69A | 7.01A | 8.81A | 7.10A | 8.95A | 7.21A | 9.11A | 7.34A |
| Module Efficiency STC (%) | 14.82% | 15.13% | 15.44% | 15.74% | 16.05% | |||||
| Operating Temperature (°C) | -40°C ~ 85°C | |||||||||
| Max. System Voltage | 1000VCD (IEC) | |||||||||
| Max. Series Fuse Rating | 15A | |||||||||
| Power Tolerance | ±3% / 0~+3% (Based on customer requirements and contract terms) | |||||||||
| Temperature Coefficients of Pmax | -0.43%/°C | |||||||||
| Temperature Coefficients of Voc | -0.32%/°C | |||||||||
| Temperature Coefficients of Isc | 0.06%/°C | |||||||||
| Nominal Operating Cell Temperature (NOCT) | 45±2°C | |||||||||
