1.Structure of Solar Module Description
The solar module is an off-gird solar power generator, designed to provide stable and reliable electricity to homes and communities without access to grid electricity or to those regions where are short of power or even without power. The solar module is convenient to move, easy to set-up with reliable performance, making it ideal for situations where emergency power is required. It is an ideal & reliable energy source for a wide variety of applications, ranging from lighting , radios, fans ,televisions ,computers ,refrigerator. The USB port is compatible with all 5V-USB charged devices. It can also act as a back-up power source during emergency situations.
2.Main Features of the Solar Module
1).High conversion efficiencies resulting in superior power output performance.
2).Outstanding power output even in low light or high temperature conditions
3).Optimized design for ease of soldering and lamination
4).Long-term stability,reliability and performance

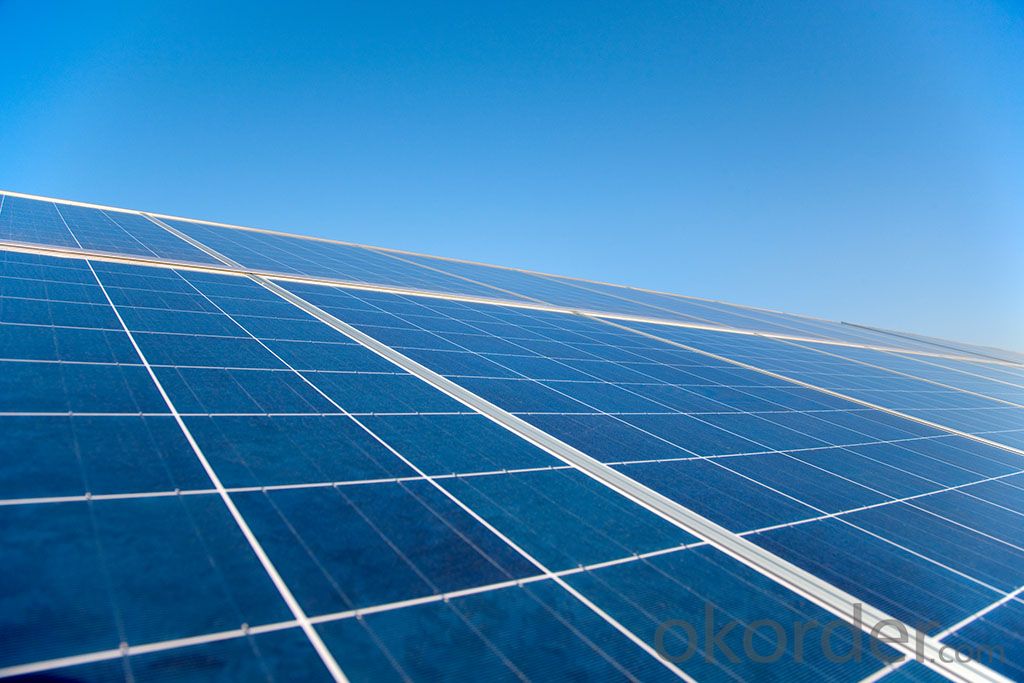

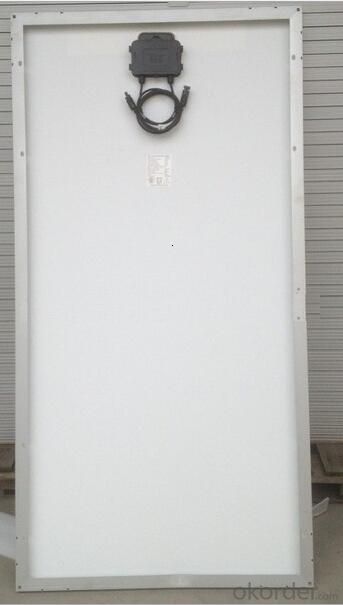

3.Solar Module Images
4.Solar Module Specification
Details about Solar Modules | |
Module Type | 50W-M |
Number of Cells | 36 pcs |
Dimensions | 540*680*30mm |
Peak Power (Pmax) | 50W |
Module Efficiency | 16.07% |
Cell Efficiency | 19% |
Power Tolerance | ±3% |
Open Circuit Voltage(Voc) | 21.6V |
Short Circuit Current(Isc) | 2.94A |
Working Current | 1.78A |
Working Voltage | 18V |
Max System Voltage | DC 600V |
Operating Temperature | -40°C~85 °C |
Nominal Operating Cell Temp | 47±2 °C |
Temp. coefficient Isc(TK Isc) | 0.06%/ °C |
Temp. coefficient Voc(TK Voc) | -0.34%/ °C |
Temp. coefficient Power(TK Pmax) | -0.42%/ °C |
Series Fuse Rating | 5A |
5.FAQ of Solar Module
1). Q: Are you a factory or trading company?
A: We are a factory.
2). Q: Where is your factory located? How can I visit there?
A: Our factory is located in Jiangyin, Jiangsu, China, near Shanghai. You are warmly welcomed to visit us!
3). Q: How can I get some samples?
A: Please connect me for samples
4). Q: Can the price be cheaper?
A: Of course, you will be offered a good discount for big amount.
