Loading Port:Tianjin
Payment Terms:TT OR LC
Min Order Qty:1000 watt
Supply Capability:10000000 watt/month
Maximum power: 150Wp
Maximum working voltage: 17.3V
Maximum working current: 8.67A
Open circuit voltage: 42.84V
Short-circuit current: 21.6A
Battery efficiency: 15%
Cell number: 72pcs (6 x 12mm)
Cell dimensions: 125 x 125mm
Solar panel dimensions: 670*1480*35mm
Maximum system voltage: 1,000V
Operating temperature: -40 to 85°C
Surface maximum loading capacity: (surface can withstand the maximum pressure) 60m/s (200kg/sq.m)
Allowable hail load (hail stress testing) steel ball fall down from 1m height
Weight of each solar panel: 16kg
Connection box type: PV-JB001 (TUV)
Cable type: with TUV mark
Cable length: 900mm ,also can according the customer's requirement to product
Output power tolerance: ± 3%
Frame material: aluminum
Standard test conditions (STC): 1,000W/m² AM1.525°C
10 years product warranty and 25 years 80% of power
Fill factor: e 72%
20-foot container quantity: 37pcs
40-foot container quantity: 700pcs

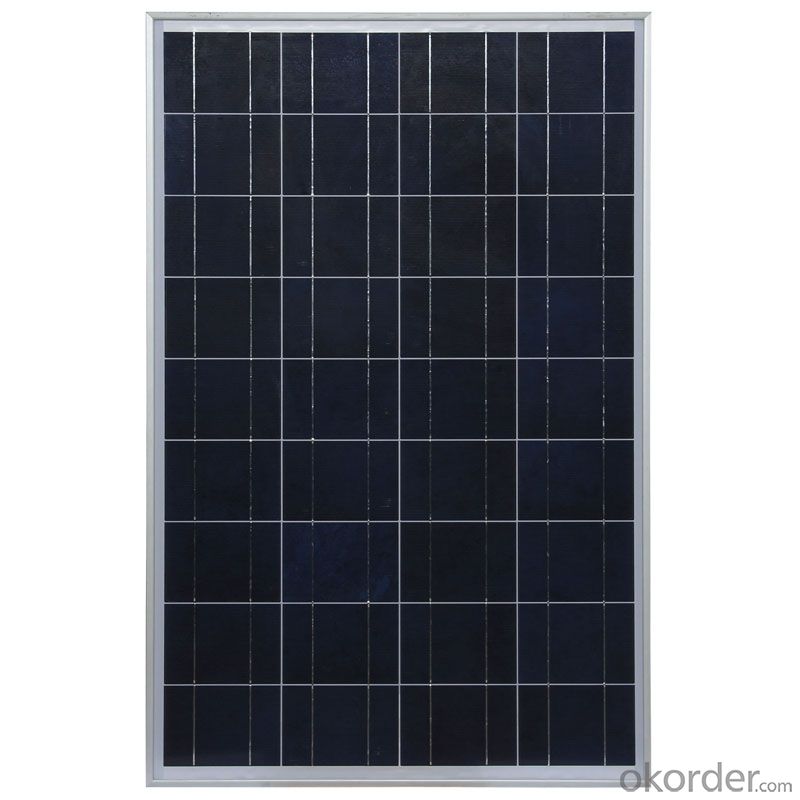

| Cell type | Poly-crystalline silicon solar cell |
| Size | 6780*480*35mm |
| Weight | 14.3 kg |
| Solar cell type | 156*156 mm |
| Number of cell (pcs) | 4*9 PCS |
| Maximum Power | 150 Wp |
| Mctual measurement results | 86.4 Wp |
| Optimum operating voltage | 17.3 V |
| Optimum operating current | 8.67 A |
| Open ciruit voltage | 21.6V |
| Short circuit current | 9.69 A |
| Power Tolerance | 1%-3% |
| Backing | TPT |
| Tempering glass thickness | 3.2 mm |
| Frame Material | Clear anodized aluminium frame |
| Operating temperature | -40 C+85 C |
| Storage temperature | from-40 C~+85 C |
| Maximum wind resistance | 60m/s |
| Surface maximum load capacity | 200Kg/M2 |
| Maximum hail load capacity | 25mm, 80km/h |
| Efficiency of panel | 14.50% |
Other Modules:
| Electrical Data | Module Size | Weight | Number of cells series | ||||
| Nominal Pwer | Max-Power | Max-Power | Open-Circuit | Short-Circuit | |||
| Voltage | Current | Voltage | Current | ||||
| Pmax | VMPP | IMPP | VOC | ISC | |||
| W | V | A | V | A | mm | Kg | pc |
| 10 | 17.2 | 0.58 | 21.6 | 1.31 | 340*254*17 | 1.2 | 36 |
| 20 | 17.2 | 1.16 | 21.6 | 1.93 | 340*460*25 | 1.8 | 36 |
| 30 | 17.3 | 1.73 | 21.6 | 1.83 | 350*670*30 | 3 | 36 |
| 40 | 17.3 | 2.13 | 21.6 | 2.45 | 460*670*30 | 3.5 | 36 |
| 50 | 17.3 | 2.89 | 21.6 | 3.06 | 560*670*30 | 4.5 | 36 |
| 60 | 17.3 | 3.47 | 21.6 | 3.68 | 670*670*30 | 5.3 | 36 |
| 70 | 17.2 | 4.05 | 21.6 | 4.29 | 758*670*30 | 6 | 36 |
| 80 | 17.3 | 4.62 | 21.6 | 4.90 | 758*670*30 | 6.5 | 36 |
| 90 | 17.2 | 5.23 | 21.6 | 5.81 | 935*670*30 | 6.7 | 36 |
| 100 | 17.2 | 5.8 | 21.6 | 6.46 | 935*670*30 | 6.7 | 36 |
| 110 | 17.2 | 6.4 | 21.6 | 7.08 | 1061*670*35 | 8 | 36 |
| 120 | 17.2 | 6.98 | 21.6 | 7.72 | 1161*670*35 | 8.6 | 36 |
| 130 | 17.2 | 7.56 | 21.6 | 8.4 | 1277*670*35 | 9.8 | 36 |
| 140 | 17.2 | 4 | 21.6 | 4.4 | 1480*670*35 | 10.9 | 36 |
| 150 | 17.2 | 4.17 | 21.6 | 4.58 | 1480*670*35 | 10.9 | 36 |
| 160 | 34.4 | 4.65 | 43.2 | 5.17 | 1480*670*35 | 10.9 | 72 |
| 170 | 34.4 | 4.94 | 43.2 | 5.49 | 1172*983*35 | 11.7 | 72 |
| 180 | 34.4 | 5.23 | 43.2 | 5.81 | 1172*983*35 | 11.7 | 72 |
| 190 | 34.4 | 5.52 | 43.2 | 6.14 | 1260*983*35 | 14.6 | 72 |
| 200 | 34.4 | 5.81 | 43.2 | 6.5 | 1260*983*35 | 14.6 | 72 |
| 210 | 34.4 | 6.1 | 43.2 | 6.85 | 1488*983*35 | 14.6 | 72 |
| 220 | 34.4 | 6.4 | 43.2 | 7.08 | 1488*983*35 | 15.2 | 72 |
