2014 Newest High Brightness Smd 3014/3528 1500Mm Tube8 Japan

Loading Port:Shenzhen

Payment Terms:L/C,T/T

Min Order Qty:1 Piece pc

Supply Capability:50000 Pieces pc/month

Product Description:

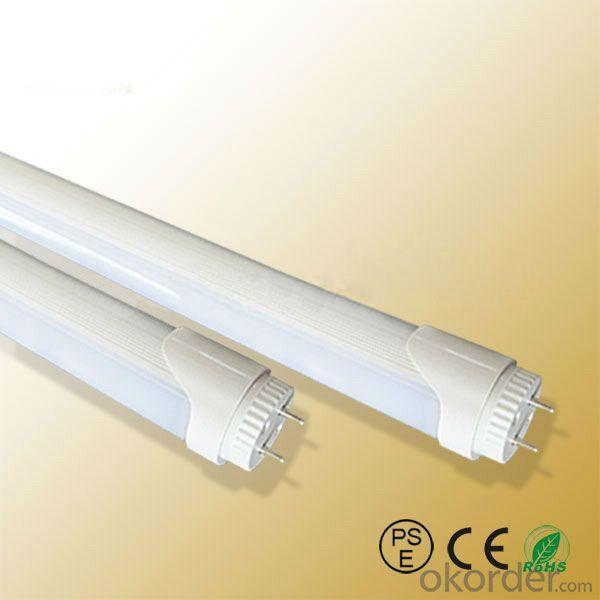

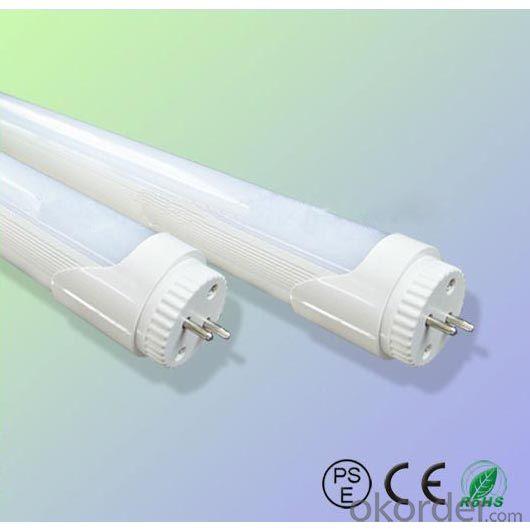

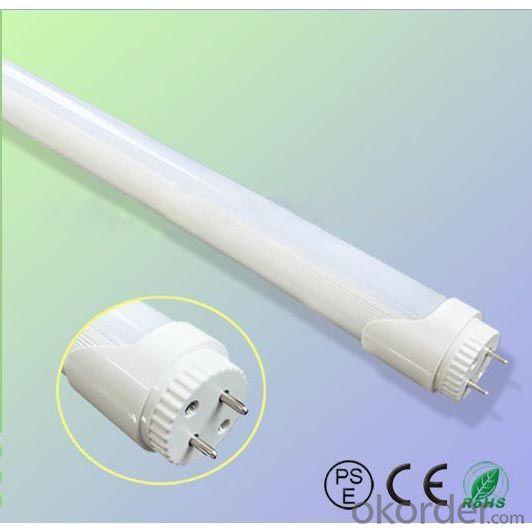

2014 Newest High brightness SMD 3014/3528 1500mm tube8 japan



T8 led Tube 1 line

Model No

CX-L09CSW-1

CX-L18CSW-1

CX-L25CSW-1

Input Voltage

AC100-240V

AC100-240V

AC100-240V

Power Consumption

9W

18W

25W

Dimension

Φ30*600mm

Φ30*1200mm

Φ30*1500mm

LED Qty

114pcs

240pcs

320pcs

Luminous Flux

900Lm

1900Lm

250Lm

Carton Size

672*225*190mm

1272*225*190mm

1572*225*190mm

Color Temperature

2700-6500K

Material

Aluminum + PC

Lamp Holder

G13

Storage Temperature

-40-50°C

Working Temperature

-20-40°C

Packages

20pcs

LED Type

Samsung/Epistar SMD



Led Tube 2 lines

Model No

CX-L09CSW-2

CX-L18CSW-2

CX-L25CSW-2

Input Voltage

AC100-240V

AC100-240V

AC100-240V

Power Consumption

9W

18W

25W

Dimension

Φ30*600mm

Φ30*1200mm

Φ30*1500mm

LED Qty

126pcs

252pcs

324pcs

Luminous Flux

870Lm

1800Lm

2250Lm

Carton Size

672*225*190mm

1272*225*190mm

1572*225*190mm

Color Temperature

2700-6500K

Material

Aluminum + PC

Lamp Holder

G13

Storage Temperature

-40-50°C

Working Temperature

-20-40°C

Packages

20pcs

LED Type

Samsung/Epistar SMD







Feature

1,Be avilable for these conditions as Magnetic ballast fixture & AC power supply, and special match for Electronic ballast fixture.



2,Quick and easy installation ,the user don’t need to change any circuit .The T8 LED Light can work with the existing traditional Lighting fixture directly.



3,High lighting efficiency can achieve at more than 100lm/w,CRI more than 75,PF more than 0.95.



4,Long lifespan can lasted for 50000 hours even long .



5,Many kinds of advanced wire diagrams,connect any 2 pins the tube can light up,at the same time ,touch the 2 pins,it is safe,you don't worry about you will electric shock.





Application

Indoor use only,factory,subway,train,school,hospital,warehouse,advertising box,conference room,shopping mall,etc.

 application



What we can do for you:



1.  Your inquiry related to our products or price will be replied within 24 hours.
2.  Well-trained and experienced staff to answer all your enquiries in fluent English.
3.  OEM&ODM, and your costumed lighting we can help you to design and put into produce.
4.  Distributorship are offered for your unique design and some our current models.
5.  Protecting your selling areas, idea of design and all your private information.





Quality assurance explains:



Warranty: 3 years ( The first two years, happen to quality problems, by the new product replace the old product. )

Process: Detailed treatment methods, according to quality agreement to deal with.

Comment: Chungxin will be made of the best quality to thank you for your support.
