Loading Port:Shenzhen
Payment Terms:T/T
Min Order Qty:1000 Pieces pc
Supply Capability:500 Pieces pc/month

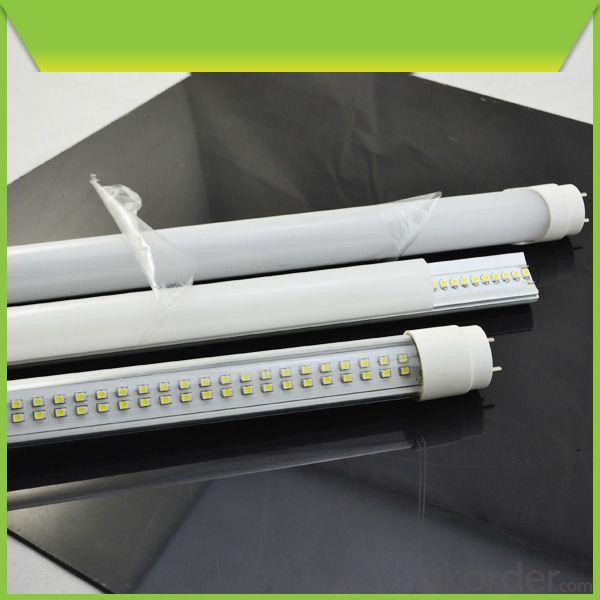

10w-22w led t8 tube light
Product Specification
led t8 tube
Model No. | RF1001 |
Input Voltage | 100-240Vac 50/60Hz |
Power Consumption | 10W |
LED Maintain Flux | 1000-1200lm |
Optional Color Temp. | 2700k-6500k |
Fixture Material | PC+Aluminum |
Use Environment | Indoor Only |
Guarantee | 3 years |
Length | 600 mm |
Beam angle | Clear Cover/140° Frosted Cover |
Led t8 tube Specification
1.Input voltage:10-30VAC200-240Vac/100-240Vac
2.Color temp.:3000K,4000k.6500K
3.Available for high CRI 75
4.Power requirement: 10W
5.Illuminance:1000-1200Lux
6.Energy-saving rate:50%
7.Size ( L*D )mmWeight(N.W): D26*L600mm /210g
8.Beam angle:120°
9.Color temperature:5500~6500K/2700~3500K
10.Outer temperture:30~40°c
11.Working hour:Up to 60000 Hours
Production Specification
Model: RFP003
| Power Consumption | 15W | Correlated Color | Warm white/Neutral White/Cool white |
| Working Voltage | 85-265Vac | Color Temperature | 2800-7000k |
| LED Type | Taiwan3014 | Luminous Flux | 1000±200 |
| LED Quality | 120pcs | Power Factor | 0.90 |
| Material | AL+PC+PMMA | IP | 44 |
| Working Frequency | 50-60Hz | Lifespan | 50000-80000h |
| CRI | Ra>80 | Operating Temperature | (-20°C to 50°C) |
| Beam Angle | 130° | Item Size(L*w*H) | L300*W600*H12mm |
| net weight | 0.88kg | Certificate | CE,F,RoHs,PSE |
Service &Garantee
1.Customized service available
2.We could provide a low price if you need a large amount of it
3.Warranty:3 years.
4.All products got the CE,RoHS &FCC certificate
5.Attctive design in products and resonable price
6. enjoy a high reputation among our customers
7.small size ,light weight
Application
1.LED general lighting,LED cabinet,Celling,spot,overhead lighting,LED signage,channel letter.LED architectural lighting,LED commercial industrial lighting AC input power suitable for the world
2.Soft-start current can reduce the AC input impact efficiency
3. With short-circuit and overload protection 5.All products have passed 100%full-load burning test
About Us
We are a professional LED light&LED driver design &manufacture company.we have 8 years of experience in this market.we produce the following products:LED bulbs/LED spotlights/LED tubes/LED par lights/LED drivers/LED power supplies/LED RV&marine lights
Welcome all overseas customers to our factory for business negotiation.
