Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1000 watt
Supply Capability:10000 watt/month

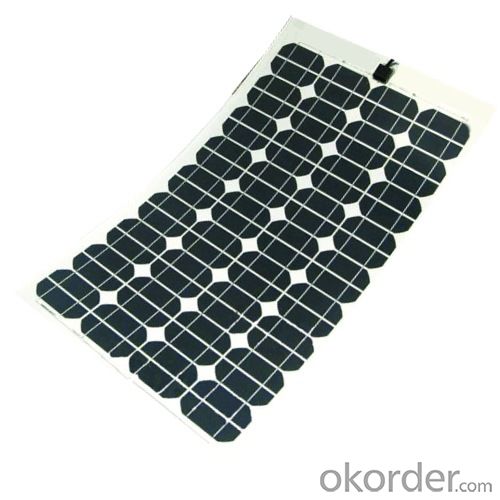

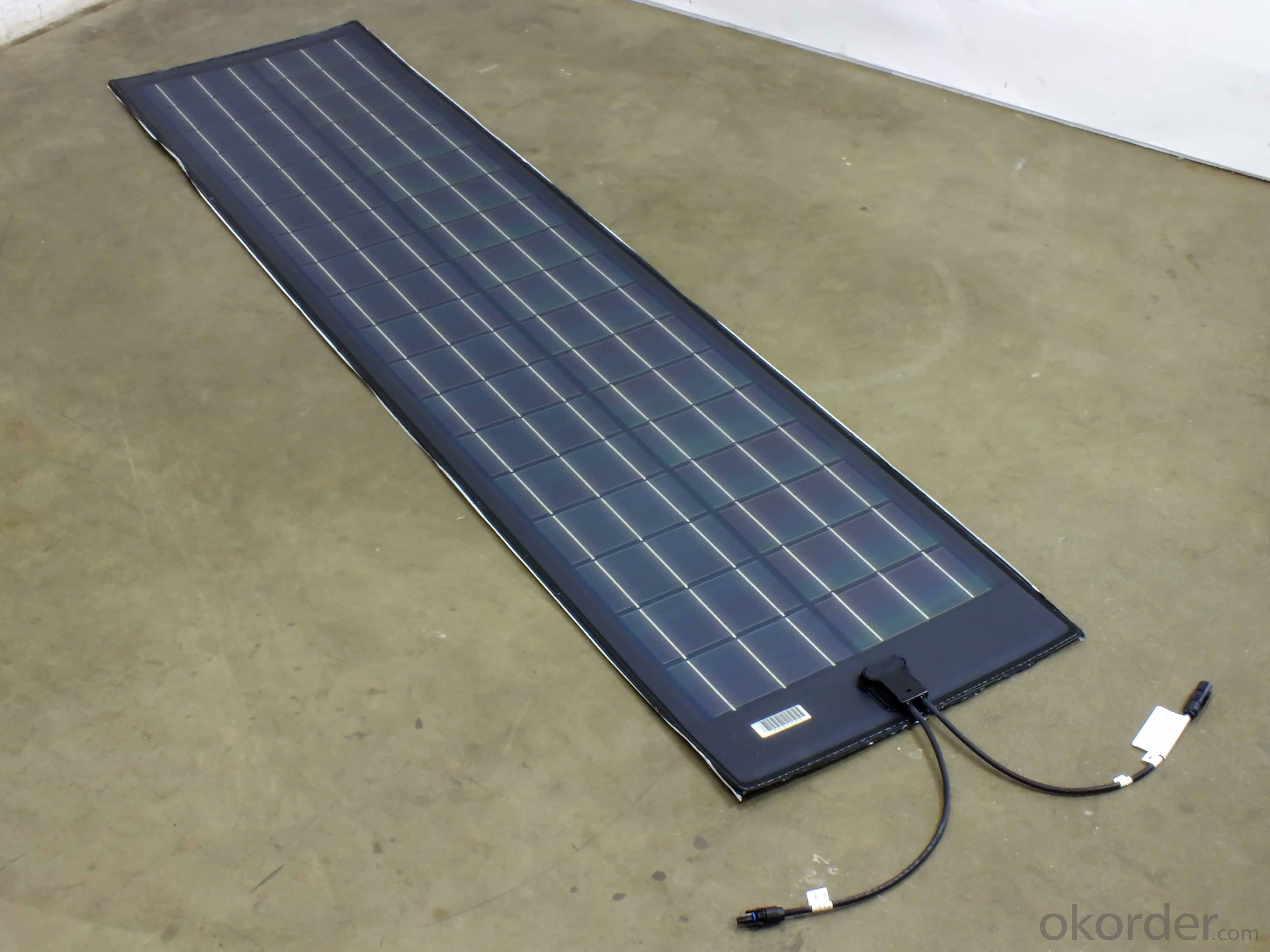

1) Main features:
a) 2015 New solar product, using solar cells with 22% high efficiency.
b) The PET solar panels are widely used in the folding solar mobile chargers, solar bags, solar lights, solar power banks, solar toys, solar torches, solar security systems, solar signal lights, solar traffic lights, solar chargers for small batteries, portable solar speakers, off-grid solar powered systems etc.
d) PET surface to avoid easily scratching.
e) PET edges for being sewn with the bags or others(optional).
f) Words or Logos can be embedded in the solar panels(optional).
g) Size or Voltage can be customized.
2) Main parameters:
Model#JGN-120W-SPF
Encapsulation: PET Laminated
Size and Number of cells: 36pcs
Maximum power wp: 120W
Maximum power voltage(Vmp): 17.6v
Model size(mm) : 1100*370*3mm
Certificate: CE, RoHS
3) Datasheet:
| Peak power / Pm(W) | 120±5% |
| Open circuit voltage / Voc(V) | 20.8 |
| Max. power voltage / Vmp(V) | 17.6 |
| Max. power current / Imp(A) | 6.67 |
| Short circuit current / Isc(A) | 7.32 |
| Solar cell efficiency | 22.00% around. |
| Dimensions(L*W*T) | 1100*670*3.0mm. |
| Solar cell(size), No. of cells and connection method | 125 mono solar cells, 36-cell in series. |
| Encapsulation method | PET laminated(grossy surface). |
| Module frame | No |
| Junction box | Optional |
| Standard Testing Conditions | Irradiance:1000W/m2, Cell temperature:25ºC, AM:1.5(air mass). |
| Lifespan | Over 5 years. |
| Product Certifications / Standards | CE, RoHS. |
