Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:10000 watt
Supply Capability:1000000 watt/month
Product Description

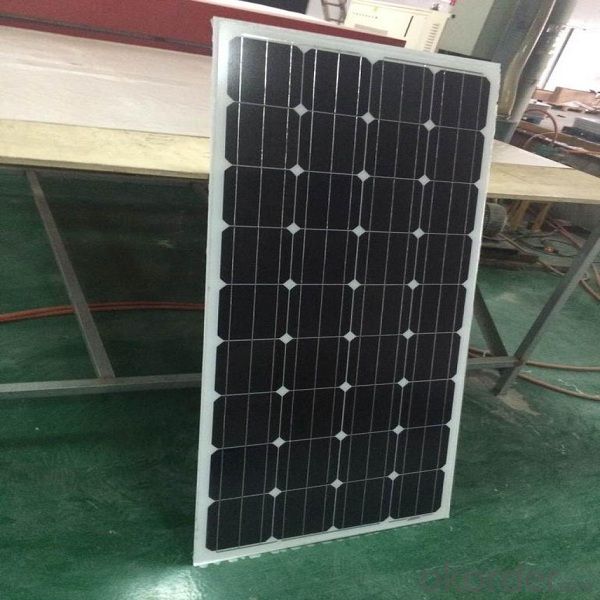

200W Monocrystaline Solar Module Solar Power System
Specifications for solar panel system:
| Type of cell | Mono |
| Max. power (Wp) | 200W |
| Max. power voltage (V) | 37V |
| Max. power current (A) | 5.5A |
| Open circuit voltage (V) | 44.6V |
| Short circuit current (A) | 6A |
| Number of cells (Pcs) | 72 |
| Size of module (mm) | 1580*808*35mm |
| Max. system voltage (V) | 1000 |
| Temperature coefficients of Isc (%) | + 0.1/ °C |
| Temperature coefficients of Voc (%) | -0.38/ °C |
| Temperature coefficients of Pm (%) | -0.47/ °C |
| Tolerance Wattage (e.g. +/-3%) | +/-3% |
| Surface Max. Load Capacity | 60m/s(200kg/sq.m) |
| Weight per piece (kg) | 16kg |
| Junction Box Type | 4m, length 1000MM,TUV |
| Connectors and Cables Type | Type MC4 |
| Output Cables (mm) | φ=4mm², L=900mm |
| Cell Efficiency (%) | ≥18.6% |
| Output tolerance (%) | +/-3% |
| Frame (Material, Corners, etc.) | Aluminum |
| Front Glass | 3.2mm high transmission, Low Iron, Tempered Glass |
| Warranty | 10Years products warranty and 25 years 80% of power |
| Standard Test Conditions | AM1.5 1000mW/cm2 25°C |
| FF (%) | 72% |
| Operating temperature ºC | -40 ºC ~+85 ºC |
| OEM | Available |
Packaging for solar panel system:
2pcs/carton, 310pcs/20GP or custom
Advantages for solar panel system:
1.Long Service Life can reach more than 25 years
2.High Efficiency Solar Cells
3.Special Aluminum Frame Design,
4.High Transmission, Low Iron Tempered Glass
5.Advanced Cell Encapsulation.
6. Fast delivery.

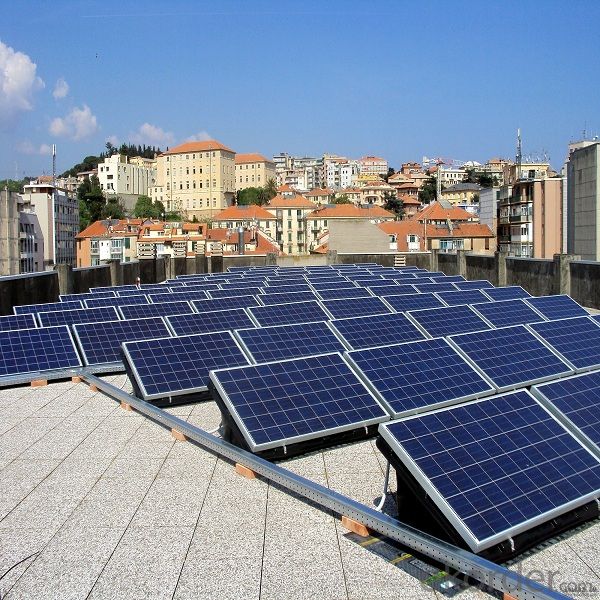

Solar Panel System Application:
1. Solar power station, field operation some huge engineer construction;
2. Living house and home building;
3. Office building, factory and warehouse;
4. other industrial and commercial applications.
