Loading Port:China main port
Payment Terms:TT OR LC
Min Order Qty:1000 watt
Supply Capability:500000 watt/month
| Place of Origin: | China (Mainland) | Brand Name: | CNBM | Model Number: | FUFENG280P-36 |
| Material: | Polycrystalline Silicon | Size: | 1960*990*46 or to clients requirment | Number of Cells: | to what you need |
| Max. Power: | 280w | Application: | Home,Commercial,Industrial | Transform efficiency: | 17%~19% |
| Jnction box: | High quality diode IP65 rated | Front: | Tempered Glass | TPT: | Krempel, Germany |
| connector: | MC4 or to what you need | junction case size: | to what you need and considering the solar panel | cable: | 10cm or 100cm |
| Frame: | Anodized Aluminum Alloy | Cell: | 125*125 or 156*156 |
| Packaging Detail: | 2PCS/CARTON, THEN IN PALLETS, AND ALSO WE CAN DO TO WHAT YOU NEED |
| Delivery Detail: | 7DAYS AFTER ORDER ON MOQ |

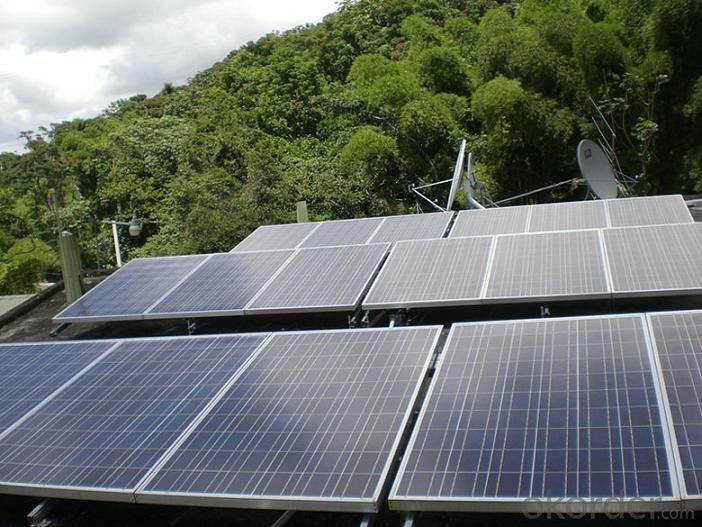

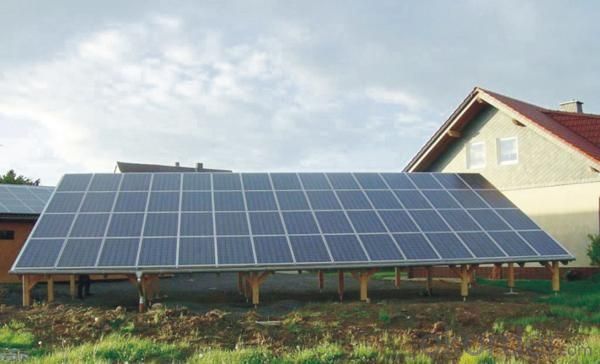

3.Solar module Images
4. solar module Specification
SOLAR PANEL
1.SOLAR FROM 1W TO 300WATT
2.MONO AND POLY CTRYSTAL SALICON
3.MCS CE TUV IEC CERTIFICATE
4.FAST DELIVERY TIME
SOLAR PANEL OF DIFFERENT SIZE
| Parameter Type | Maxpower(W) | Dimension(MM) | Cell Type | Weight(kg) | Imp(A) | Vmp(V) | Isc(A) | Voc(V) |
| FUFENG280P-36 | 280 | 1960*990*46 | 156*156/6*12 | 22.50 | 7.65 | 36.57 | 8.19 | 43.77 |
| FUFENGP275p-36 | 275 | 1960*990*46 | 156*156/6*12 | 22.50 | 7.54 | 36.43 | 8.07 | 43.70 |
| FUFENGP270P-36 | 270 | 1960*990*46 | 156*156/6*12 | 22.50 | 7.44 | 36.28 | 7.96 | 43.63 |
| FUFENG265P-36 | 265 | 1960*990*46 | 156*156/6*12 | 22.50 | 8.53 | 36.14 | 9.13 | 43.56 |
| FUFENG260P-36 | 260 | 1960*990*46 | 156*156/6*12 | 22.50 | 7.22 | 36.00 | 7.72 | 43.48 |
| FUFENG255P-36 | 255 | 1960*990*46 | 156*156/6*12 | 22.50 | 7.08 | 36.00 | 7.57 | 43.48 |
| FUFENG250P-36 | 250 | 1960*990*46 | 156*156/6*12 | 22.50 | 7.05 | 35.42 | 7.55 | 43.41 |
| FUFENG245P-33 | 245 | 1800*990*46 | 156*156/6*11 | 20.60 | 7.39 | 33.13 | 7.91 | 39.93 |
| FUFENG240P-33 | 240 | 1800*990*46 | 156*156/6*11 | 20.60 | 7.27 | 33.00 | 7.78 | 39.86 |
| FUFENG235P-33 | 235 | 1800*990*46 | 156*156/6*11 | 20.60 | 7.12 | 33.00 | 7.69 | 39.86 |
| FUFENG230P-33 | 230 | 1800*990*46 | 156*156/6*11 | 20.60 | 7.08 | 32.47 | 7.57 | 39.79 |
| FUFENG225P-30 | 225 | 1640*980*40 | 156*156/6*10 | 18.60 | 7.62 | 29.52 | 8.15 | 36.18 |
| FUFENG220P-30 | 220 | 1640*980*40 | 156*156/6*10 | 18.60 | 7.30 | 30.12 | 7.81 | 36.30 |
| FUFENG215P-30 | 215 | 1640*980*40 | 156*156/6*10 | 18.60 | 7.16 | 30.00 | 7.66 | 36.24 |
| FUFENG210P-30 | 210 | 1640*980*40 | 156*156/6*10 | 18.60 | 7.11 | 29.52 | 7.61 | 36.18 |
| FUFENG205P-30 | 205 | 1640*980*40 | 156*156/6*10 | 18.60 | 6.94 | 29.52 | 7.43 | 36.18 |
| FUFENG200P-30 | 200 | 1640*980*40 | 156*156/6*10 | 18.60 | 6.85 | 29.16 | 7.33 | 36.12 |
| FUFENG195P-30 | 195 | 1640*980*40 | 156*156/6*10 | 18.60 | 6.68 | 29.16 | 7.15 | 36.12 |
| FUFENG190P-27 | 190 | 1485*980*40 | 156*156/6*9 | 17.00 | 7.15 | 26.56 | 7.65 | 32.56 |
| FUFENG185P-27 | 185 | 1485*980*40 | 156*156/6*9 | 17.00 | 6.96 | 26.56 | 7.45 | 32.56 |
| FUFENG180P-27 | 180 | 1485*980*40 | 156*156/6*9 | 17.00 | 6.85 | 26.24 | 7.33 | 32.50 |
| FUFENG175P-24 | 175 | 1330*980*40 | 156*156/6*8 | 16.40 | 7.29 | 24.00 | 7.80 | 28.99 |
| FUFENG170P-24 | 170 | 1330*980*40 | 156*156/6*8 | 16.40 | 7.08 | 24.00 | 7.57 | 28.99 |
| FUFENG165P-24 | 165 | 1330*980*40 | 156*156/6*8 | 16.40 | 6.98 | 23.61 | 7.47 | 28.94 |
| FUFENG160P-24 | 160 | 1330*980*40 | 156*156/6*8 | 16.40 | 6.86 | 23.32 | 7.34 | 28.89 |
| FUFENG130P-18 | 130 | 1485*668*35 | 156*156/4*9 | 11.60 | 7.20 | 18.00 | 7.72 | 21.74 |
| FUFENG120P-18 | 120 | 1485*668*35 | 156*156/4*9 | 11.60 | 6.86 | 17.49 | 7.34 | 21.67 |
| FUFENG100P-18 | 100 | 1245*668*35 | 156*130/4*9 | 11.60 | 5.71 | 17.49 | 6.11 | 2.67 |
| FUFENG90P-18 | 90 | 995*668*35 | 156*104/4*9 | 9.00 | 4.96 | 18.14 | 5.30 | 21.81 |
| FUFENG85P-18 | 85 | 995*668*35 | 156*104/4*9 | 9.00 | 4.79 | 17.71 | 5.13 | 21.70 |
| FUFENG80P-18 | 80 | 995*668*35 | 156*104/4*9 | 9.00 | 4.57 | 17.49 | 4.89 | 21.67 |
| FUFENG75P-18 | 75 | 930*668*35 | 156*95/4*9 | 8.20 | 4.28 | 17.49 | 4.58 | 21.67 |
| FUFENG70P-18 | 70 | 760*668*35 | 156*78/4*9 | 6.80 | 3.88 | 18.00 | 4.16 | 21.74 |
Features
1. High cell efficiency with quality silicon materials for long term output stability and reliability.
2. High transmittance low iron tempered glass with enhanced stiffness and impact resistance
3. Unique frame design with high mechanical strength for easy Installation.
4 Advanced encapsulation material with multiplayer sheet lamination to provide efficient protection from the severest environmental conditions, PET sheet imported from Toyo Japan with advanced encapsulating material
5. Outstanding electrical performance under high temperature and low irradiance conditons
6. Excellent performance in harsh weather , Outstanding electrical performance under high temperature and low irradiance
7. Strictly quality control ensure the stability and reliability, totally 30 QC procedures
Solar cells applications:
2. Commercial and industrial building roof-top systems
3. Residential roof-top systems
4. Any commercial or industrial ground mount systems
Solar panel quality and warranty
1. Peak power of single module in guaranteed in +-3%power tolerance.
2. Average power of modules in single order is guaranteed not less than the peak power
3. Rigorous quality control meets the highest international standard
5.5 years limited warranty on material and workmanship
6.10 years and 20 years limited warranty for minimum power output.
Quality assurance testing
Thermal cycling test
Thermal shock test
Thermal/Freezing and high humidity cycling test
Electrical isolation test
Hail impact test
Mechanical, wind and twist loading test
Salt mist test
Light and water-exposure test
Moist carbon dioxide/sulphur dioxide
PAYMENT TERMS |
T/T, L/C ,west union and Alibaba Escrow are the payment method we allow at this time. |
SHIPPING |
Material in stock can be produce (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSC ship to worldwide for safe shipping, don't worry about package damager or loss. It take 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer.And we have about 12 years in solar panel production and exporting all over th world |
ABOUT US |
We are manufacturers and wholesalers of solar panels and renewable energy products. Our solar business has been established since 1999. Our engineers are experienced in solar and related accessories, if you buy from us you deal with not just a seller; the whole technical team is behind you and your business. OEM and ODM services are both available. We would like to be your best supplier in China. |
IMPORTANT INFORMATION: |
1. All our solar panels following IEC6125, IEC61730 standard, Have CE, TUV, MCS, CGC Certifications, also on Australia Clean Energy Council (CEC) list. |
2. The solar cell efficiency is 16%-18.5%. All material certificate by TUV IEC test, meet the solar panel 25 years at outdoor performance. |
Frequently Asked Questions
1. What is the brand for this panel?
CNBM solar, we are the manufacturer of this panel, OEM service is available, wholesales is welcome
2. What kind of Solar Cells does it have
---poly crystalline 156*156mm or mono 125*125 and 156*156
3. Is the front panel Glass or Plastic
---Tempered glass 3.2mm thickness or adjust to what you need, Light transmittance up to 95%.
4. Does it meet Europe Standards for Solar Energy
This is TUV approval products, all the producing procedure apply TUV&UL.
5. What is the Efficiency level
--- Between 16-18.9% for solar cells.
6. What is the Nominal Voltage
-- 18v 20v 24v 36v 30v 48v , and so on, we can adjust to what you need
7. What is the Warranty Period, How many years?
Power efficiency warranty:
90% in 10 years; 85% in 25 years.
We offer 10 years warranty against any wrong material use or workmanship defective.
With MC4 multi-connector and 900mm cable( can adjust to what you need)
(All material TUV IEC61215,IEC61730 Certifiated, passed strick, fire, inundated, short circuit, hot spot test, all our product selling to customers providing infrared ray test report and flash test report.)
5.FAQ of Solar module
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Jiangyin, Jiangsu, China, near Shanghai. You are warmly welcomed to visit us!
3. Q: How can I get some samples?
A: Please connect me for samples
4. Q: Can the price be cheaper?
A: Of course, you will be offered a good discount for big amount.
