Loading Port:Qingdao
Payment Terms:TT OR LC
Min Order Qty:10 set
Supply Capability:300000 set/month

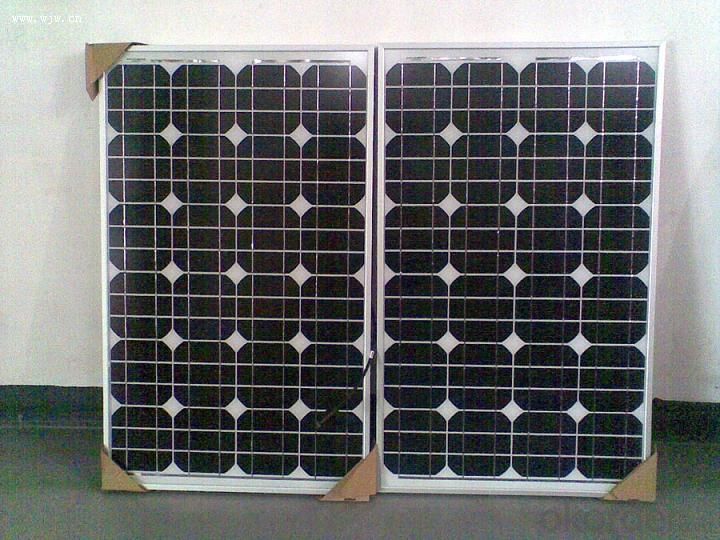

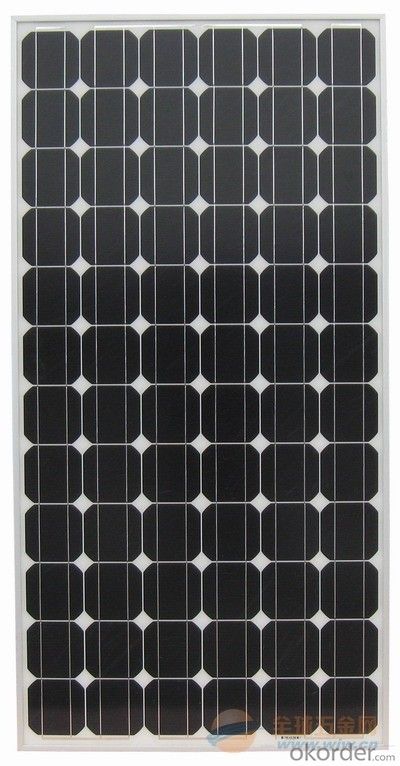

160W OEM Mono solar panels --- Factory direct sale
| Place of Origin: | Guangdong, China (Mainland) | Brand Name: | CNBM | Model Number: | SGM-2F-160W |
| Material: | Monocrystalline Silicon | Size: | 505*1005*70mm | Number of Cells: | 36pcs |
| Max. Power: | 160Wp | Modes of Supply: | Factory Directly Supply | OEM panel solar: | Acceptable |
| Cell Brand: | Taiwan solar cells | Cell efficiency: | 15.94%-18.10% | Frame: | Aluminium Alloy |
| Certificates: | TUV, IEC, CE, ISO9001/14001 and RoHS |
| Packaging Details: | carton box & wooden pallet [ solar panels ] |
| Delivery Detail: | 10-15working days after order confirmed |
Product Description
1.with controler, cable, mounting and bag, ready to use
2.High transmittance low iron tempered glass with enhanced stiffness and impact resistance
3.Unique frame design with high mechanical strength for easy Installation.
4.Advanced encapsulation material with multiplayer sheet lamination to provide efficient protection from the severest environmental conditions
5.Outstanding electrical performance under high temperature and low irradiance conditons
6.it can be widely used for home, for camping, for emergency
Electrical Character
| Electrical Characteristics | |
| Model | SGM-2F-2x80W |
| Cells size (mm): | 156*78 |
| Cells per module: | 36pcs |
| Module size (mm): | 505*1005*70mm |
| Power tolerance: | +/-3% |
| Nominal peak power(WP): | 160w |
| Nominal voltage(V): | 17.7 |
| Nominal current (A): | 9.03 |
| NOCT: | 45+/-2degree |
| Voltage temperature coefficient: | -0.33%/degree |
| Current temperature coefficient: | +0.05%/degree |
| Power temperature coefficient: | -0.23%/degree |
| Open circuit voltage (Voc): | 21.6 |
| Short cirsuit current(Isc): | 9.76 |
| Conversion efficiency: | 18.40% |
| Product name : | protable solar panel |
| Max system voltage: | 1000V DC |
| Surface Maximum Load Capacity | 60m/s(200kg/sq. m) |
