Loading Port:Shanghai
Payment Terms:TT OR LC
Min Order Qty:1000 watt
Supply Capability:1000000 watt/month
Features:
Can charge any 12V battery with 5m cable alligator clip
Combined by 2pcs individual high-efficient monocrystalline silicon solar panels;
Stainless steel telescopic legs ( can freely rotate 180 degrees)
High-strength low-iron toughened glass
Anodized aluminum frame
Light weight,easy to carry outside
with a charge controller with LED charge status display and electronic circuit protection
Long life time: >=25 years, small attenuation (Resistance to humidity and salt fog corrosion)
Stability and high efficiency photoelectric conversion, the average conversion rate is 17%
±3% performance tolerance
Accessories: controller(10A) , cable (5m), alligator clip, supporting leg,carry bag, junction box,corner protection, lock and handle
Packaging: nonwoven or canvas bag with outer carton, bulk order with pallet
suitable for home/caravans/camper (powering lap-top, phones, lights, TV,radios, small pumps and other small household electrical appliances)
When you go camping/hiking:
For laptop! No problem.
For iphone/ smart phones! No problem.
For PSP, for other players! No problem.
One portable solar panel charger solves all your charging problems!
Attention:
In the case of no load, do not connect the positive and negative.
Our advantages:
We have patents for the essential parts of the products----controller and inverter
All our products are approved by CE and ISO9001
We can do OEM and ODM, and we have our own talented R&D teams
All our products are easy to be used and convenient in maintanence
Strong technical team is ready to work for you.
Specifications

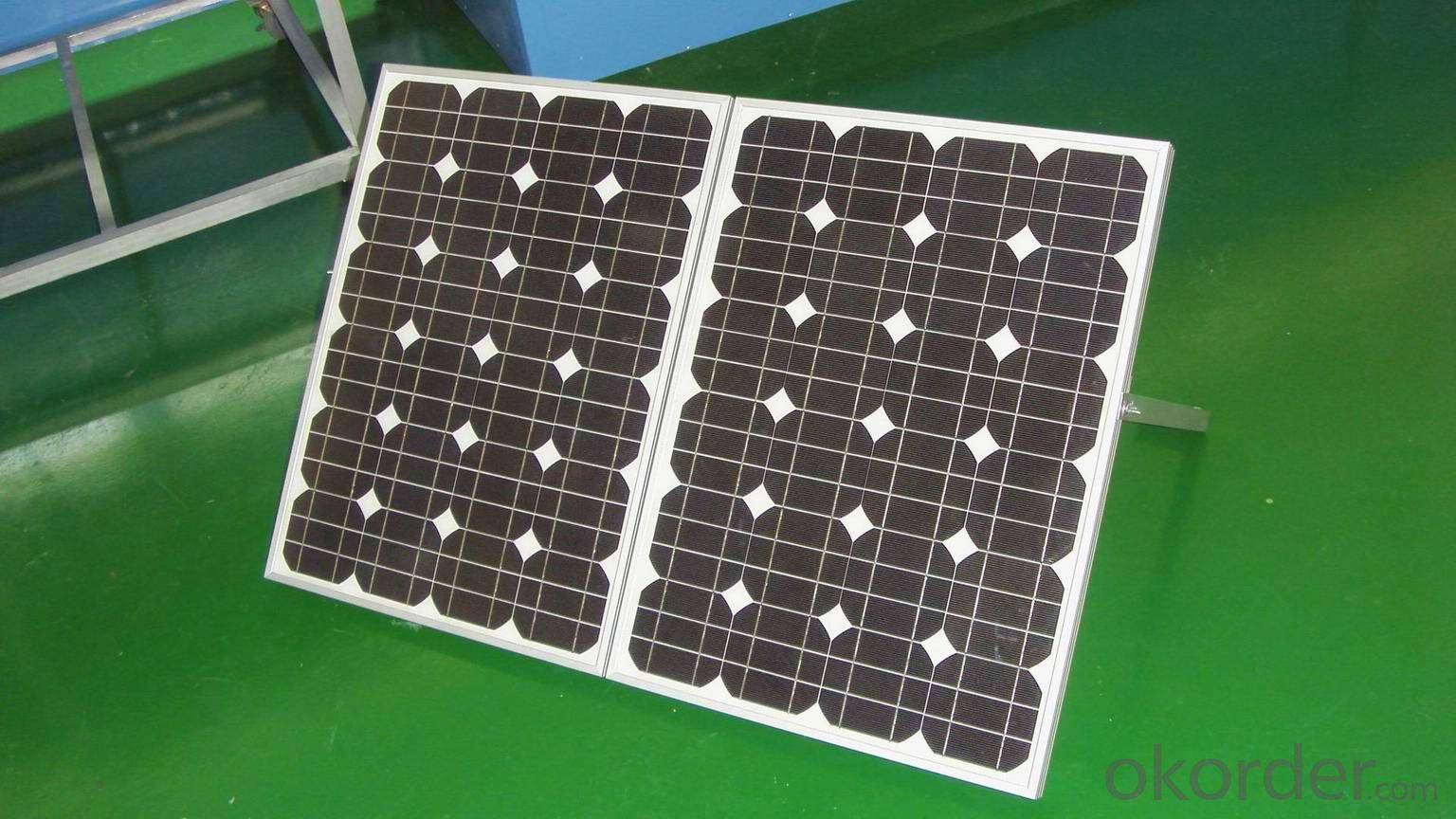

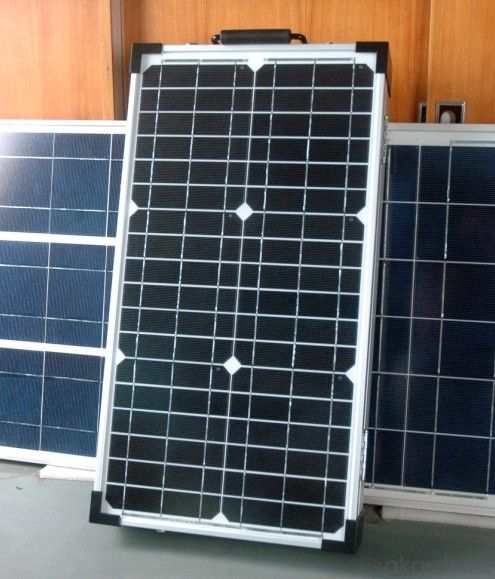

12v/18v 120W Folding Solar Panel A) collapsible
B) waterproof and easy to carry
C)Suitable for outdoor travel, camping
fast delivery+high quality: folding solar panel full waterproof---suitable for camping, trekker , 4WD, boating etc!
foldable solar panel 120W folding solar panel for charge DC 12V solar system & 12V battery
Material: | monocrystalline silicon |
Max. Power: | 150W |
Conversion efficiency: | 17.26% |
Module size (mm): | 505*1005*35mm |
Cell Type | 156*78/3*12 |
Weight(kg) | 15.0 |
Nominal voltage(V): | 18 |
Nominal current (A): | 8.33 |
Open circuit voltage (Voc): | 21.6 |
Short cirsuit current(Isc): | 9.00 |
Power tolerance: | -3%to+5% |
NOCT: | 45± 2%/degree |
Temperature coefficient of Voc: | -0.34%/degree |
Temperature coefficient of Isc: | 0.017%/degree |
Temperature coefficient of Pmax: | -0.48%/degree |
Operating temperature: | -40/degree to+85/degree |
Certifications | ISO 9001 TUV CE RoHS |
Maximum system voltage: | IEC, 1000V DC, 600V |
