Loading Port:Shekou
Payment Terms:TT or LC
Min Order Qty:10 pc
Supply Capability:100000 pc/month

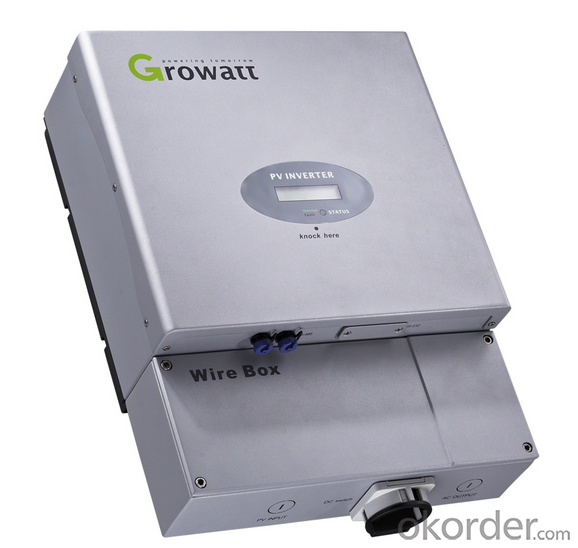

1500w solar grid tie inverter transformerless 1.5kw string inverter ETL/FCA
Solar inverter 1500TL-3000TL-US
Maximum efficiency of 97.5% and wide input voltage range

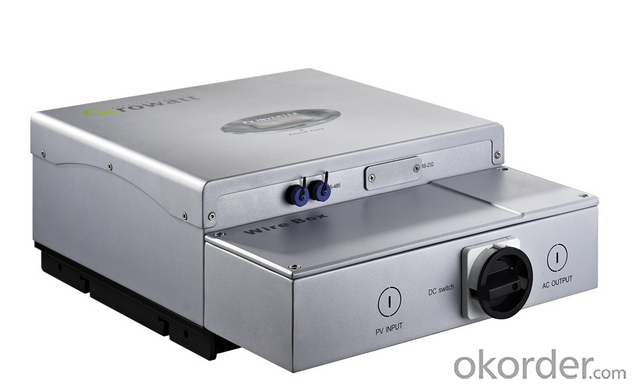

Internal DC Switch
Transformerless GT topology
Compact design
Bluetooth/ RF technology/ Zigbee/ Wi-Fi
Sound control
Easy installation
General Descriptions
Leading-Edge Technology, CE,TUV ,VDE , SAA,DK5940 Certicificates.
> Maximum efficiency of 97.8 % and wide input voltage range
> Internal DC STWTICH
> Transformerless H6 topology
> Compact Design
> MPPT control
> MTL-String
> RS485 RS432 bluetooth Technology
> Comprehensive Growatt warranty program
> Easy country configuration, easy installation
> Multi-language display
Communications
> RS485 /GPRS interfaces
> Computer monitoring software
1500-US | 2000-US | 3000-US | |
| Inputdata | |||
Max.DCpower | 1800W | 2300W | 3200W |
Max. DC voltage | 450V | 500V | 500V |
Start Voltage | 150V | 150V | 150V |
PV voltage range | 100V-450V | 100V-500V | 100V-500V |
MPP voltage range(full load) | 120V-400V | 120V-450V | 120V-450V |
Max. input current of per MPP tracker | 12A | 14A | 17A |
Number of independent MPP | 1/1 | 1/2 | 1/2 |
Rated AC output power | 1500W@208Vac | 1800W@208Vac | 2500W@208Vac |
AC nominal voltage; range | Default:240V single phase, optional:208 single phase;183-228@208V,211-264V@240V | ||
Max. output current | 8A/7.8A | 9.7A/9.4A | 15A/14.2A |
AC grid frequency; range | 60Hz; 59.3-60.5Hz | 60Hz; 59.3-60.5Hz | 60Hz; 59.3-60.5Hz |
Power factor | 1 | 1 | 1 |
THDI | ＜3% | ＜3% | ＜3% |
Grid connection type | Single phase | Single phase | Single phase |
| Efficiency | |||
Max.efficiency | 97% | 97% | 97% |
| Protection Devices | |||
DC reverse polarity protection | yes | yes | yes |
DC switch rating for each MPPT | yes | yes | yes |
Output over current protection | yes | yes | yes |
Output over voltage | yes | yes | yes |
Ground fault monitoring | yes | yes | yes |
Grid monitoring | yes | yes | yes |
Integrated all-pole sensitive | yes | yes | yes |
| Generaldata | |||
Dimensions(W/H/D) in mm | 360/465/165 | 360/465/165 15.1KG | 360/465/165 |
| Features | |||
DC connection AC connection Display | Screw terminal Screw terminal LCD opt/opt/opt | Screw terminal Screw terminal LCD yes/yes/ opt/opt/opt | Screw terminal Screw terminal LCD yes/yes/ opt/opt/opt yes/opt |
| Certificates and Approvals UL1741, UL1998, IEEE 1547, CSA C22.2 No.107.1-1, FCC Part15(Class A&B) |
FAQ
1. Have any design tool and how to use it?
Shine Design is the system design software just for inverters, It can conduct installers to figure out panel numbers for a system, panel numbers for each string, and which inverter model is suitable for the system. Moreover, it can print a design report after input all necessary parameters, can calculate DC/AC wire wastage, annual generation, etc.
2. Does the inverter have monitoring solutions for residential system?
For small rating system, we have wired two monitoring solution (ShineNet via RS232 or RS485). (a) Local wireless monitoring solution (ShineVision via RF module communication) (b) Global wireless monitoring solution (WIFI module via WIFI network)
3. Do you have free solution for monitoring?
ShineNet is an inverter monitoring software run in Windows XP, Windows Vista, Windows 7 operating system. It can monitor inverter via RS232 (or RS232 convert to USB cable) and RS485 wire connection. Customers can purchase the cable locally to get the inverter monitored, it is simple.
